620A608G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 620A608G

620A608G: Descriptionmini uhf cable jack for rg59/62; CategoryThe connector The connector; File Size53KB，3 Pages; ManufacturerBomar

Download Datasheet Parametric View All

620A608G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	620A608G	-	-	View	Buy Now

620A608G Overview

mini uhf cable jack for rg59/62

620A608G Parametric

Parameter Name	Attribute value
Maker	Bomar
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	RF UHF CONNECTOR
Coupling type	THREADED
Panel mounting	NO

Preview

Download Datasheet

View All

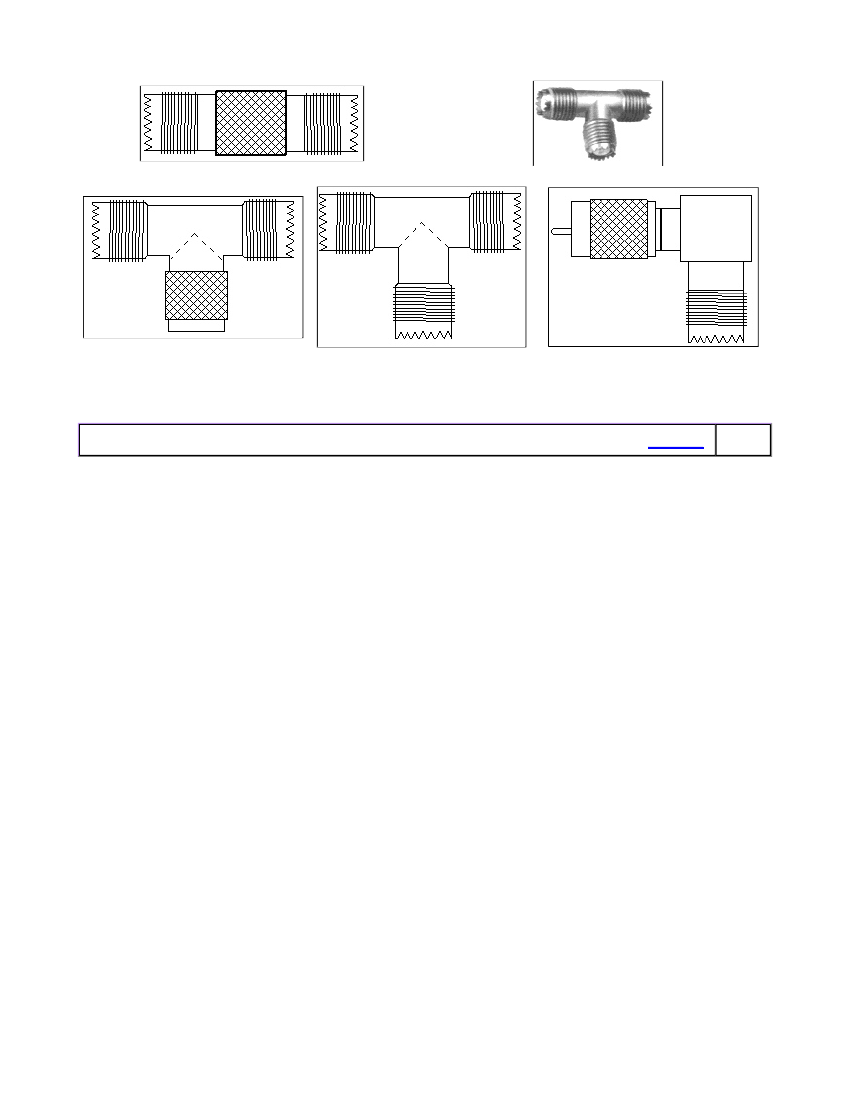

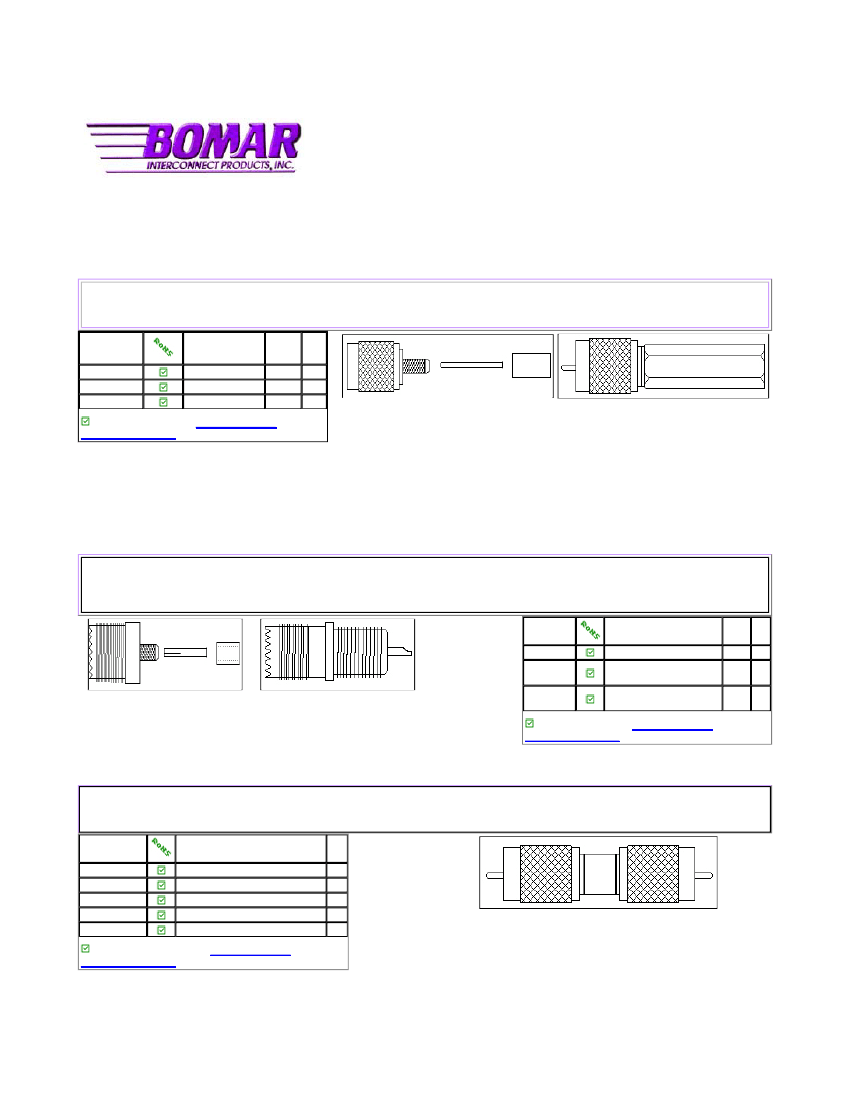

Specifications for Mini-UHF

_____________________________

MATERIALS

Connector Parts

Connector Body and Parts

Male Contact Pin

Outer Contact

Crimp Ferrule

Insulators

Plating

Brass

Annealed Copper

Delrin

Nickel

Material

ELECTRICAL

Requirement

Impedance

Frequency Range

VSWR

Working Voltage (At Sea

level)

Insulation Resistance

Dielectric

Withstanding Voltage

Performance

Non Constant

0-2 GHz

1.25 Max.

335V rms

5000 Megohm Min.

1000V at 60Hz, rms

(For 1 Minute)

MECHANICAL & ENVIRONMENTAL

Requirement

Durability

Cable Retention (Cable

Types)

Coupling Nut

Temperature Range

Performance

500 Matings

40 lbs. Minimum Pull Test

45 lbs. Maximum

Delrin: -55 to +85C

_____________________________

FOR TECHNICAL SUPPORT: PHONE 973-347-4040 / FAX 973-347-2111

Back to Index
