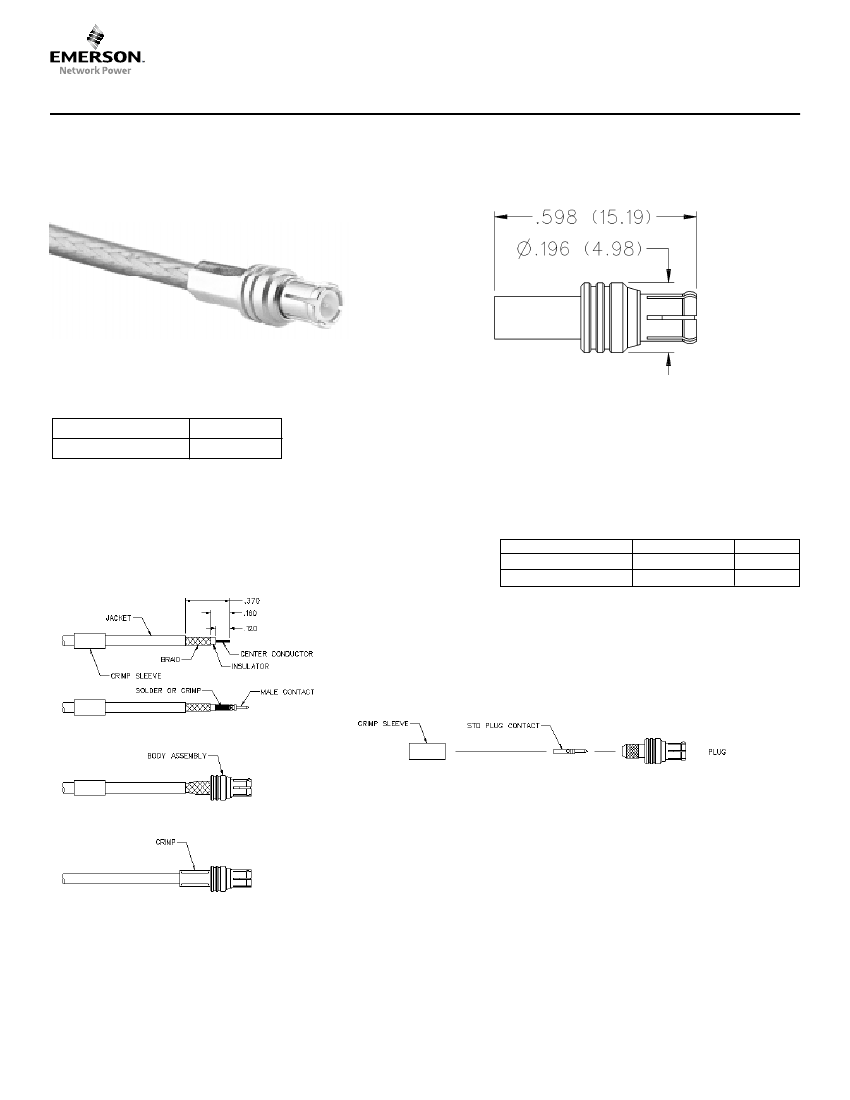

MCX Non-Magnetic RF Connectors
INCHES (MILLIMETERS)
CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
For Flexible Cable
Straight Crimp Type Plug - Solder or Crimp Contact -
Captivated Contact
CABLE TYPE
RG-316/u, 188, 174
GOLD PLATED
133-9403-001
MCX Crimp Type Straight Connectors
For Flexible Cable
CABLE GROUP
RG-316/u, 188, 174
RG-316DS, 188DS
PART NUMBER
133-9403-001
133-9404-001
CRIMP HEX
.128 (3.25)
.151 (3.83)
1.
Identify connector parts. (3 piece parts)
2.
Strip cable to dimensions shown. Do not nick braid or center conductor. Tin center conductor if contact
is to be solder attached. Do not tin center conductor if contact is to be crimp attached. Slide heat shrink
(as applicable) and crimp sleeve onto jacket of cable.
3.
Assemble contact onto cable as shown.
Solder attachment.
Solder contact to center conductor through solder hole using .020 (0.51) diameter
solder. Use a minimum of solder for a good joint.
Crimp attachment.
Crimp contact to center conductor using Johnson Components
TM
hand tool 140-
0000-952 and die set 140-0000-953. Crimp location should be centered between end of contact and
cross hole. Crimp attachment to solid center conductor cable is not recommended.
4.
Flair braid and slide body assembly over contact and under braid. Then seat body assembly firmly onto
contact. The cable may have to be held in a clamping fixture. Arrange braid uniformly around crimp
stem. Slide crimp sleeve forward and crimp using recommended crimp tool. Slide heat shrink forward
and shrink (as applicable).
Emerson Network Power Connectivity Solutions
299 Johnson Avenue SW, Waseca, MN 56093 • 800 -247- 8256 • +1 (507) 833-8822 • www.EmersonConnectivity.com
1
INCHES (MILLIMETERS)
CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
MCX Non-Magnetic RF Connectors
Specifications
SPECIFICATIONS
RF Leakage:
(dB typical tested at 2.5 GHz)
Cable connectors ...................................................................................... -55
Uncabled receptacles ............................................................................... N/A
RF High Potential Withstanding Voltage:
(Vrms minimum, tested at 4 and 7
MHz)
Cabled connectors ................................................................................... 700
Uncabled receptacles ............................................................................... 600
MECHANICAL RATINGS
Engagement Design:
Compatible with CECC 22220, Series MCX
Engagement Force:
5.6 pounds maximum axial force
Disengagement Force:
8 pounds maximum axial force, 1 pound min.
Contact Retention:
2.3 pounds min. axial force (captivated contacts)
1 inch-ounce min. torque (uncabled receptacles)
Cable Retention:
Axial Force*
Torque
(pounds)
(in-oz)
Connectors for RG316 ......................................... 20
N/A
Connectors for RG316DS .................................... 25
N/A
* or cable breaking strength whichever is less.
ENVIRONMENTAL RATINGS (Meets or exceed the applicable paragraph of
MIL-PRF-39012)
Durability:
500 cycles minimum
Temperature Range:
- 65°C to + 165°C
Thermal Shock:
MIL-STD-202, Method 107, Condition F
Corrosion:
MIL-STD-202, Method 101, Condition B
Shock:
MIL-STD-202, Method 213, Condition B
Vibration:
MIL-STD-202, Method 204, Condition B
Moisture Resistance:
MIL-STD-202, Method 106
Straight Cabled
Right Angle
Connectors
Cabled Connectors
RG-316 cable ............................................ 1.13 + .04f
1.07 + .04f
Uncabled receptacles .................................................................................. N/A
Working Voltage:
(Vrms maximum)
Sea Level
70K Feet
Connectors for Cable Type
RG-316 ............................................................ 335
85
Dielectric Withstanding Voltage:
(VRMS minimum at sea level)
Connectors for RG-316, uncabled receptacles ...................................... 1000
Corona Level:
(Volts minimum at 70,000 feet)
Connectors for RG-316, uncabled receptacles ........................................ 250
Insertion Loss:
(dB maximum, tested at 1 GHz)
Straight cable connectors .................................................................... 0.1 dB
Right angle cable connectors .............................................................. 0.2 dB
Uncabled receptacles ............................................................................... N/A
Insulation Resistance:
10,000 megohms minimum
Contact Resistance:
(milliohms maximum)
After
Initial
Environmental
Center contact (straight cabled connectors,
uncabled receptacles) ................................................. 5.0
8.0
Center contact (right angle cabled connectors) .............. 5.0
15.0
Outer contact .................................................................. 1.0
1.5
Braid to body ................................................................... 1.0
N/A
ELECTRICAL RATINGS
Impedance:
50 Ohms
Frequency Range:
0-6 GHz
VSWR:
(f = GHz)
Emerson Network Power Connectivity Solutions
299 Johnson Avenue SW, Waseca, MN 56093 • 800 -247- 8256 • +1 (507) 833-8822 • www.EmersonConnectivity.com
2
