2-221128-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2-221128-7

2-221128-7: Descriptionconn bnc plug str 50 ohm crimp; CategoryThe connector; File Size269KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

2-221128-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-221128-7	-	-	View	Buy Now

2-221128-7 Overview

conn bnc plug str 50 ohm crimp

2-221128-7 Parametric

Parameter Name	Attribute value
Datasheets
221128
Product Photos
1-5221128-0, 2-5221128-7
3D Model
2-221128-7.pdf
Standard Package	400
Category	Connectors, Interconnects
Family	Coaxial Connectors (RF)
Packaging	Bulk
Connector Style	BNC
Connector Type	Plug, Male Pi
Contact Terminati	Crim
Shield Terminati	Crim
Impedance	50 Ohm
Mounting Type	Free Hanging (In-Line)
Cable Grou	RG-141, Belden 89907, 9907
Fastening Type	Bayonet Lock
Frequency - Max	4GHz
Features	-
Housing Col	Silve
Ingress Protecti	-
Body Material	-
Body Finish	Nickel
Center Contact Material	Brass
Center Contact Plating	Gold
Dielectric Material	Polyethylene (PE)
Voltage Rating	500V
Operating Temperature	-55°C ~ 85°C
Other Names	A1169

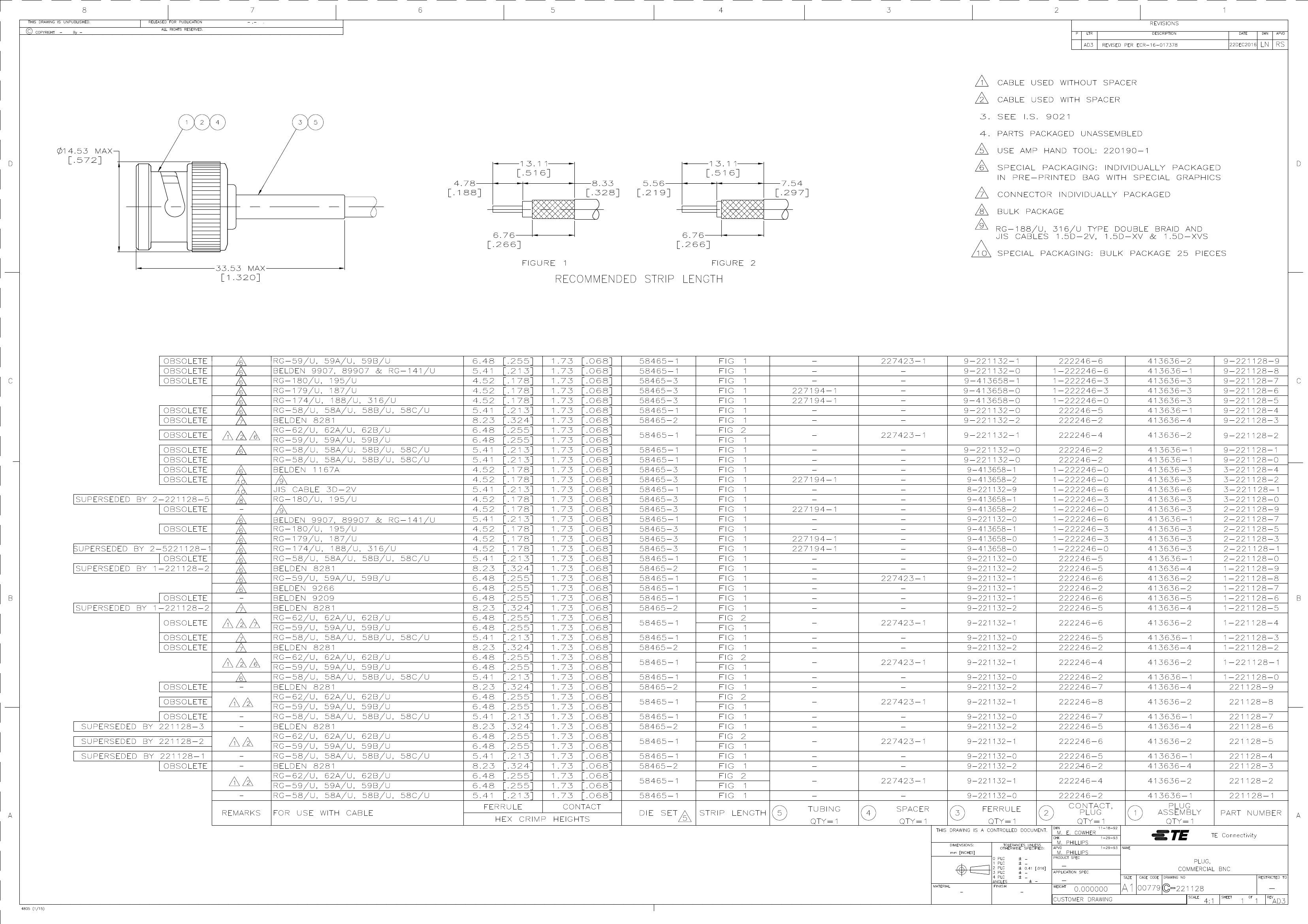

Preview

Download Datasheet

View All

2-221128-7 Related Products

	2-221128-7	221128-1	1-221128-7	1-221128-0	1-221128-1	221128-2	1-221128-8	2-221128-3
Description	conn bnc plug str 50 ohm crimp	conn bnc plug str 50 ohm crimp	conn bnc plug str 50 ohm crimp	conn bnc plug str 50 ohm crimp	conn bnc plug str 50 ohm crimp	conn bnc plug str 50 ohm crimp	conn bnc plug str 50 ohm crimp	conn bnc plug str 50 ohm crimp
Standard Package	400	1,000	1,000	400	400	300	400	200
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Coaxial Connectors (RF)	Coaxial Connectors (RF)	Coaxial Connectors (RF)	Coaxial Connectors (RF)	Coaxial Connectors (RF)	Coaxial Connectors (RF)	Coaxial Connectors (RF)	Coaxial Connectors (RF)
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Connector Style	BNC	BNC	BNC	BNC	BNC	BNC	BNC	BNC
Connector Type	Plug, Male Pi	Plug, Male Pi	Plug, Male Pi	Plug, Male Pi	Plug, Male Pi	Plug, Male Pi	Plug, Male Pi	Plug, Male Pi
Contact Terminati	Crim	Crim	Crim	Crim	Crim	Crim	Crim	Crim
Shield Terminati	Crim	Crim	Crim	Crim	Crim	Crim	Crim	Crim
Impedance	50 Ohm	50 Ohm	50 Ohm	50 Ohm	50 Ohm	50 Ohm	50 Ohm	50 Ohm
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Cable Grou	RG-141, Belden 89907, 9907	RG-58, 58A, 58B, 58C	Belden 9266	RG-58, 58A, 58B, 58C	RG-59, 59A, 59B, 62, 62A, 62B	RG-59, 59A, 59B, 62, 62A, 62B	RG-59, 59A, 59B	RG-179, 187
Fastening Type	Bayonet Lock	Bayonet Lock	Bayonet Lock	Bayonet Lock	Bayonet Lock	Bayonet Lock	Bayonet Lock	Bayonet Lock
Frequency - Max	4GHz	4GHz	4GHz	4GHz	4GHz	4GHz	4GHz	4GHz
Housing Col	Silve	Silve	Silve	Silve	Silve	Silve	Silve	Silve
Body Finish	Nickel	Nickel	Nickel	Nickel	Nickel	Nickel	Nickel	Nickel
Center Contact Material	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass
Center Contact Plating	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Dielectric Material	Polyethylene (PE)	Polyethylene (PE)	Polyethylene (PE)	Polyethylene (PE)	Polyethylene (PE)	Polyethylene (PE)	Polyethylene (PE)	Polyethylene (PE)
Voltage Rating	500V	500V	500V	500V	500V	500V	500V	500V
Operating Temperature	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C
Other Names	A1169	-	A1171	A1164	A1165	-	-	A1167
