5415025-2 datasheet, PDF - EEWORLD Datasheet

5415025-2: Descriptionconn bnc jack R/A 50 ohm pcb; CategoryThe connector; File Size82KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5415025-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5415025-2	-	-	View	Buy Now

conn bnc jack R/A 50 ohm pcb

Parameter Name	Attribute value
Datasheets
5415025
Product Photos
5415025-2
RoHS Informati
5415025-2 Statement of Compliance
RoHS 2 Stateme
3D Model

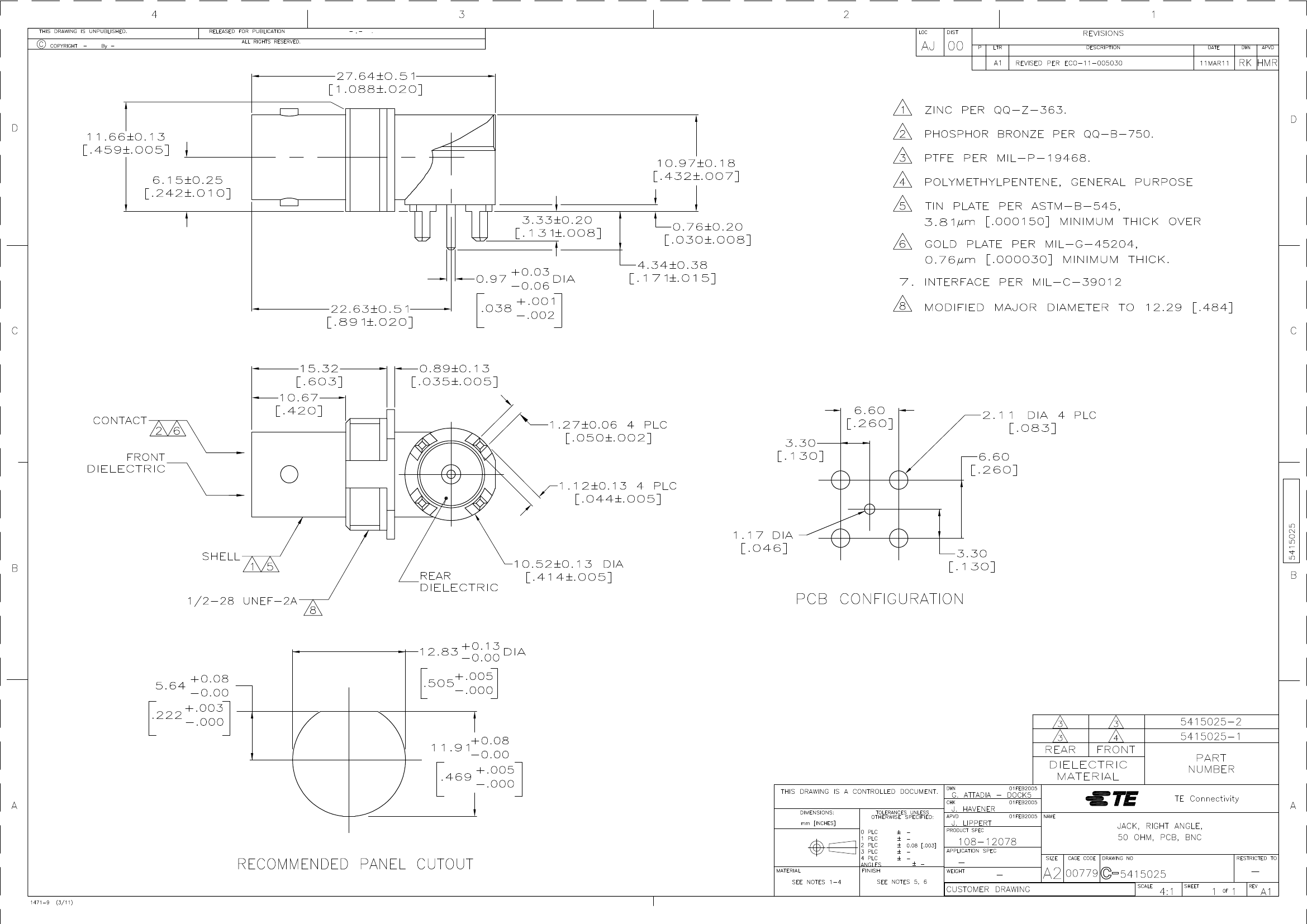

5415025-2.pdf
Standard Package	50
Category	Connectors, Interconnects
Family	Coaxial Connectors (RF)
Packaging	Tray
Connector Style	BNC
Connector Type	Jack, Female Socke
Contact Terminati	Solde
Shield Terminati	Solde
Impedance	50 Ohm
Mounting Type	Panel Mount, Bulkhead
Through Hole, Right Angle
Cable Grou	-
Fastening Type	Bayonet Lock
Frequency - Max	4GHz
Features	Board Guide
Housing Col	-
Ingress Protecti	-
Body Material	Zinc
Body Finish	Ti
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Voltage Rating	500V
Operating Temperature	-55°C ~ 85°C
Associated Produc	A97567-ND - CONN LOCKWSH FOR BNC & TNC CONNA97566-ND - CONN HEX NUT FOR BNC & TNC CONN1-1337524-0-ND - CONN CAP (COVER) FOR BNC JACKSA33796-ND - CONN LOCKWASHER FOR BNC JACKSA24479-ND - CONN BUSHING FOR BNC & TNC BLKHD
Other Names	5415025-2-ND54150252A102049

	5415025-2	5415025-1
Description	conn bnc jack R/A 50 ohm pcb	conn bnc jack R/A 50 ohm pcb
Standard Package	50	500
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Coaxial Connectors (RF)	Coaxial Connectors (RF)
Packaging	Tray	Tray
Connector Style	BNC	BNC
Connector Type	Jack, Female Socke	Jack, Female Socke
Contact Terminati	Solde	Solde
Shield Terminati	Solde	Solde
Impedance	50 Ohm	50 Ohm
Mounting Type	Panel Mount, Bulkhead	Panel Mount, Bulkhead
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max	4GHz	4GHz
Features	Board Guide	Board Guide
Body Material	Zinc	Zinc
Body Finish	Ti	Ti
Center Contact Material	Phosphor Bronze	Phosphor Bronze
Center Contact Plating	Gold	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polymethylpentene (PMP)
Voltage Rating	500V	500V
Operating Temperature	-55°C ~ 85°C	-55°C ~ 85°C
Associated Produc	A97567-ND - CONN LOCKWSH FOR BNC & TNC CONNA97566-ND - CONN HEX NUT FOR BNC & TNC CONN1-1337524-0-ND - CONN CAP (COVER) FOR BNC JACKSA33796-ND - CONN LOCKWASHER FOR BNC JACKSA24479-ND - CONN BUSHING FOR BNC & TNC BLKHD	A97567-ND - CONN LOCKWSH FOR BNC & TNC CONNA97566-ND - CONN HEX NUT FOR BNC & TNC CONN1-1337524-0-ND - CONN CAP (COVER) FOR BNC JACKSA33796-ND - CONN LOCKWASHER FOR BNC JACKSA24479-ND - CONN BUSHING FOR BNC & TNC BLKHD
Other Names	5415025-2-ND54150252A102049	5415025-1-ND54150251A102041
