5415632-2 datasheet, PDF - EEWORLD Datasheet

5415632-2: Descriptionconn bnc jack str 75 ohm pcb; CategoryThe connector; File Size105KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5415632-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5415632-2	-	-	View	Buy Now

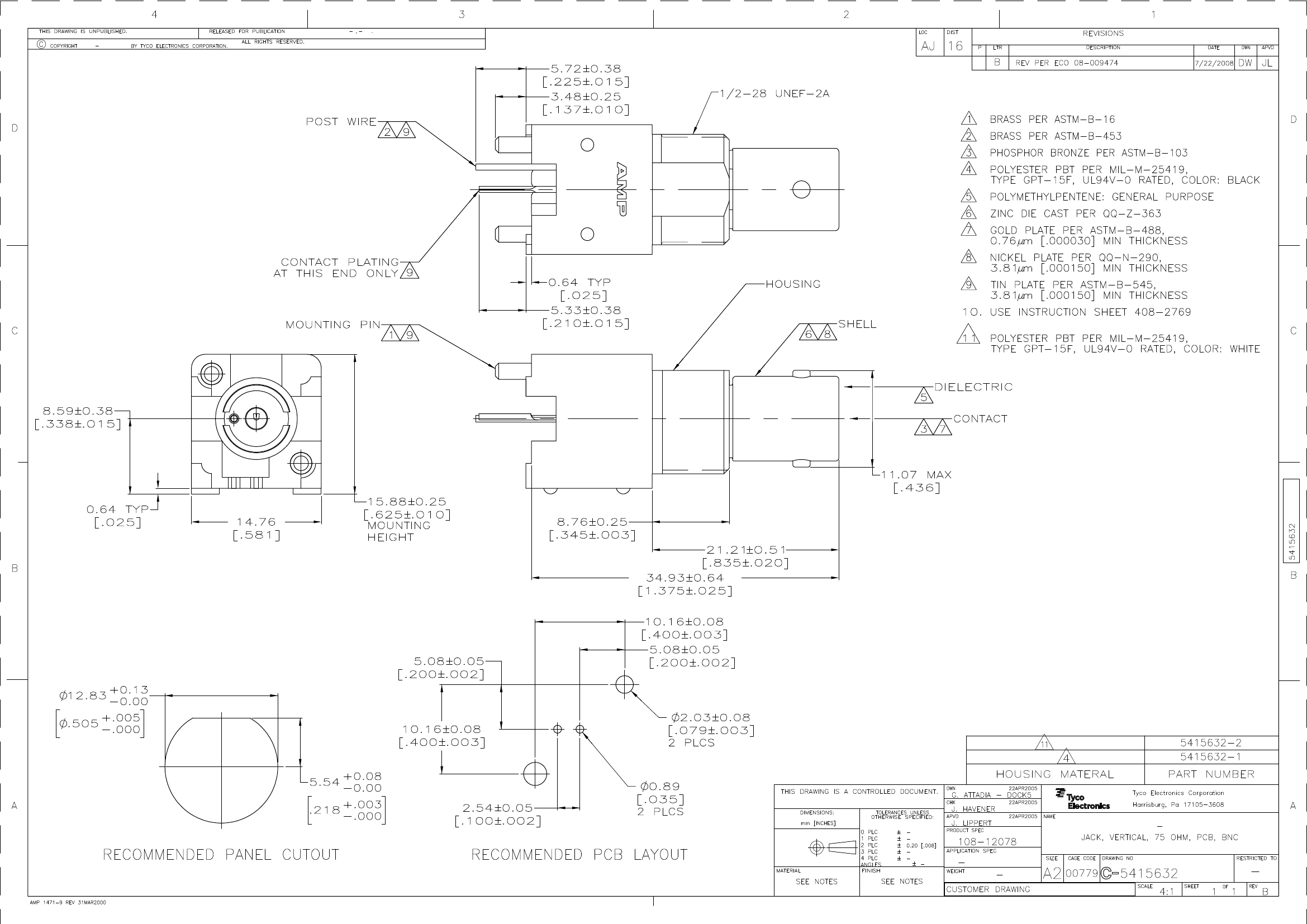

conn bnc jack str 75 ohm pcb

Parameter Name	Attribute value
Datasheets
5415632
RoHS Informati
5415632-2 Statement of Compliance
RoHS 2 Stateme
Standard Package	280
Category	Connectors, Interconnects
Family	Coaxial Connectors (RF)
Packaging	Tube
Connector Style	BNC
Connector Type	Jack, Female Socke
Contact Terminati	Solde
Shield Terminati	Solde
Impedance	75 Ohm
Mounting Type	Panel Mount, Bulkhead
Through Hole
Cable Grou	-
Fastening Type	Bayonet Lock
Frequency - Max	2GHz
Features	Board Guide
Housing Col	Silve
Ingress Protecti	-
Body Material	Zinc Die Cas
Body Finish	Nickel
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Dielectric Material	Polymethylpentene (PMP)
Voltage Rating	500V
Operating Temperature	-55°C ~ 85°C
Associated Produc	A97567-ND - CONN LOCKWSH FOR BNC & TNC CONNA97566-ND - CONN HEX NUT FOR BNC & TNC CONNA33796-ND - CONN LOCKWASHER FOR BNC JACKSA24479-ND - CONN BUSHING FOR BNC & TNC BLKHD

	5415632-2	5415632-1
Description	conn bnc jack str 75 ohm pcb	conn bnc jack str 75 ohm pcb
Standard Package	280	980
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Coaxial Connectors (RF)	Coaxial Connectors (RF)
Packaging	Tube	Tube
Connector Style	BNC	BNC
Connector Type	Jack, Female Socke	Jack, Female Socke
Contact Terminati	Solde	Solde
Shield Terminati	Solde	Solde
Impedance	75 Ohm	75 Ohm
Mounting Type	Panel Mount, Bulkhead	Panel Mount, Bulkhead
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max	2GHz	2GHz
Features	Board Guide	Board Guide
Housing Col	Silve	Silve
Body Material	Zinc Die Cas	Zinc Die Cas
Body Finish	Nickel	Nickel
Center Contact Material	Phosphor Bronze	Phosphor Bronze
Center Contact Plating	Gold	Gold
Dielectric Material	Polymethylpentene (PMP)	Polymethylpentene (PMP)
Voltage Rating	500V	500V
Operating Temperature	-55°C ~ 85°C	-55°C ~ 85°C
Associated Produc	A97567-ND - CONN LOCKWSH FOR BNC & TNC CONNA97566-ND - CONN HEX NUT FOR BNC & TNC CONNA33796-ND - CONN LOCKWASHER FOR BNC JACKSA24479-ND - CONN BUSHING FOR BNC & TNC BLKHD	A97567-ND - CONN LOCKWSH FOR BNC & TNC CONNA97566-ND - CONN HEX NUT FOR BNC & TNC CONNA33796-ND - CONN LOCKWASHER FOR BNC JACKSA24479-ND - CONN BUSHING FOR BNC & TNC BLKHD
