6274425-2 datasheet, PDF - EEWORLD Datasheet

6274425-2: Descriptionconn bnc jack R/A 75 ohm pcb; CategoryThe connector; File Size97KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

6274425-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	6274425-2	-	-	View	Buy Now

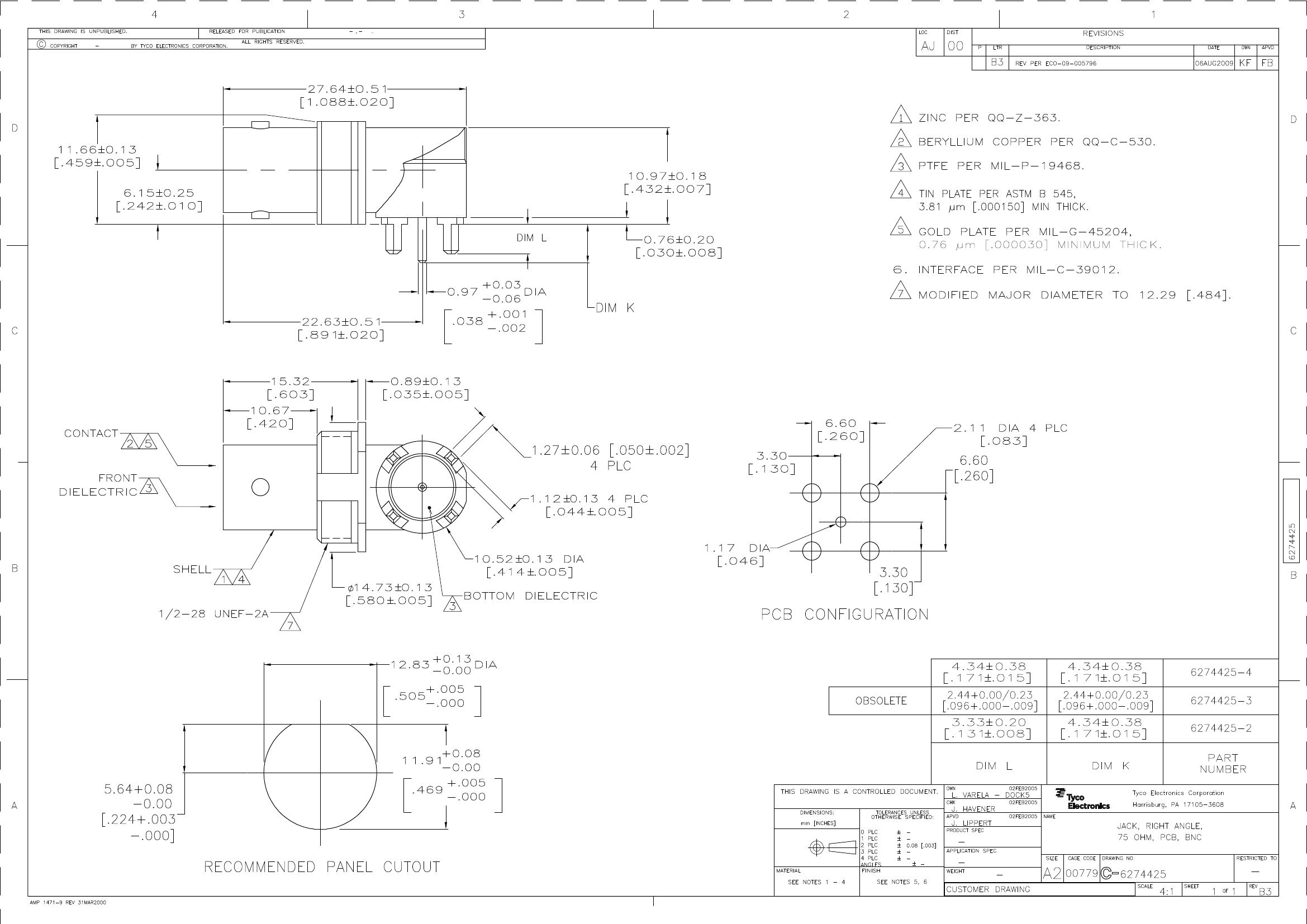

conn bnc jack R/A 75 ohm pcb

Parameter Name	Attribute value
Datasheets
6274425
Product Photos
6274425-2
RoHS Informati
6274425-2 Statement of Compliance
RoHS 2 Stateme
3D Model
6274425-2.pdf
Standard Package	50
Category	Connectors, Interconnects
Family	Coaxial Connectors (RF)
Packaging	Tray
Connector Style	BNC
Connector Type	Jack, Female Socke
Contact Terminati	Solde
Shield Terminati	Solde
Impedance	75 Ohm
Mounting Type	Panel Mount, Bulkhead
Through Hole, Right Angle
Cable Grou	-
Fastening Type	Bayonet Lock
Frequency - Max	4GHz
Features	-
Housing Col	-
Ingress Protecti	-
Body Material	Zinc
Body Finish	Ti
Center Contact Material	Beryllium Coppe
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Voltage Rating	500V
Operating Temperature	-55°C ~ 85°C
Associated Produc	A97567-ND - CONN LOCKWSH FOR BNC & TNC CONNA97566-ND - CONN HEX NUT FOR BNC & TNC CONN1-1337524-0-ND - CONN CAP (COVER) FOR BNC JACKSA33796-ND - CONN LOCKWASHER FOR BNC JACKSA24479-ND - CONN BUSHING FOR BNC & TNC BLKHD
Other Names	6274425-2-ND62744252A102047

	6274425-2
Description	conn bnc jack R/A 75 ohm pcb
Standard Package	50
Category	Connectors, Interconnects
Family	Coaxial Connectors (RF)
Packaging	Tray
Connector Style	BNC
Connector Type	Jack, Female Socke
Contact Terminati	Solde
Shield Terminati	Solde
Impedance	75 Ohm
Mounting Type	Panel Mount, Bulkhead
Fastening Type	Bayonet Lock
Frequency - Max	4GHz
Body Material	Zinc
Body Finish	Ti
Center Contact Material	Beryllium Coppe
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Voltage Rating	500V
Operating Temperature	-55°C ~ 85°C
Associated Produc	A97567-ND - CONN LOCKWSH FOR BNC & TNC CONNA97566-ND - CONN HEX NUT FOR BNC & TNC CONN1-1337524-0-ND - CONN CAP (COVER) FOR BNC JACKSA33796-ND - CONN LOCKWASHER FOR BNC JACKSA24479-ND - CONN BUSHING FOR BNC & TNC BLKHD
Other Names	6274425-2-ND62744252A102047
