BNCS007C00 datasheet, PDF - EEWORLD Datasheet

BNCS007C00: Descriptionconn bnc jack R/A 75 ohm pcb; CategoryThe connector; File Size382KB，11 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

BNCS007C00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BNCS007C00	-	-	View	Buy Now

conn bnc jack R/A 75 ohm pcb

Parameter Name	Attribute value
Datasheets
BNC Series, 2008 Catalog

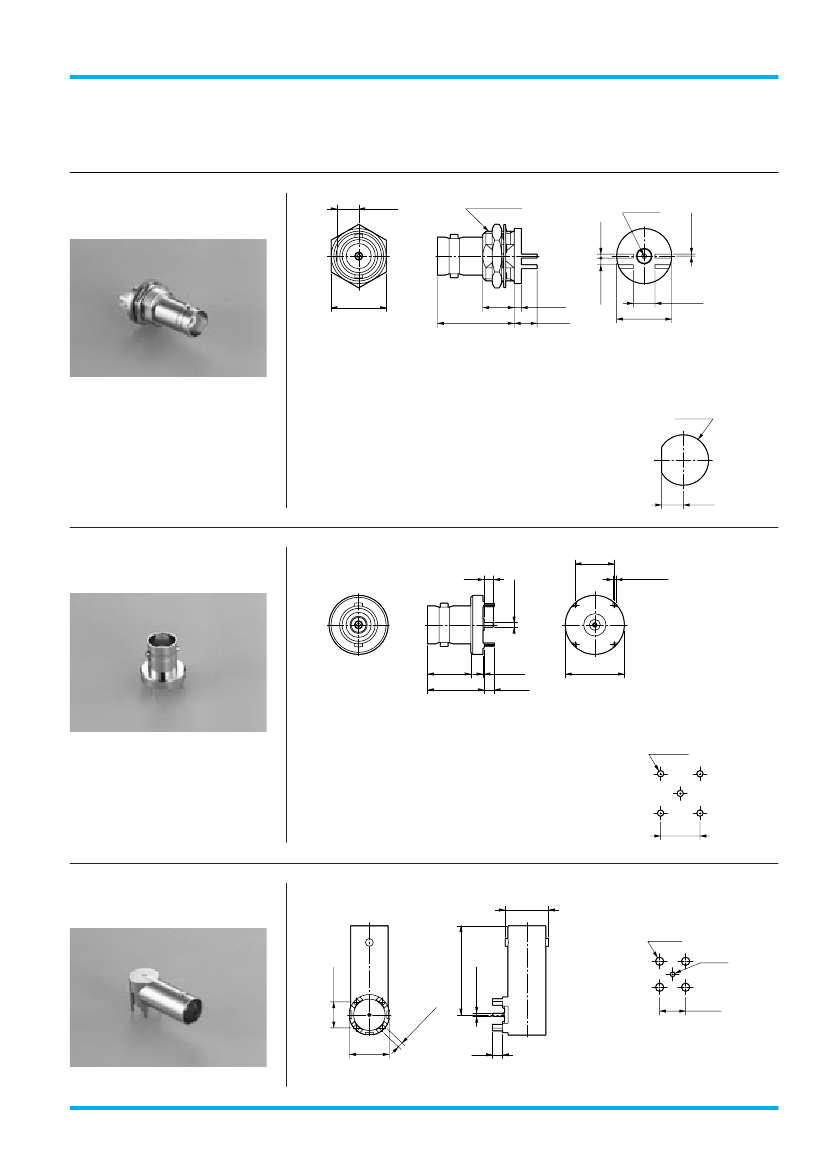

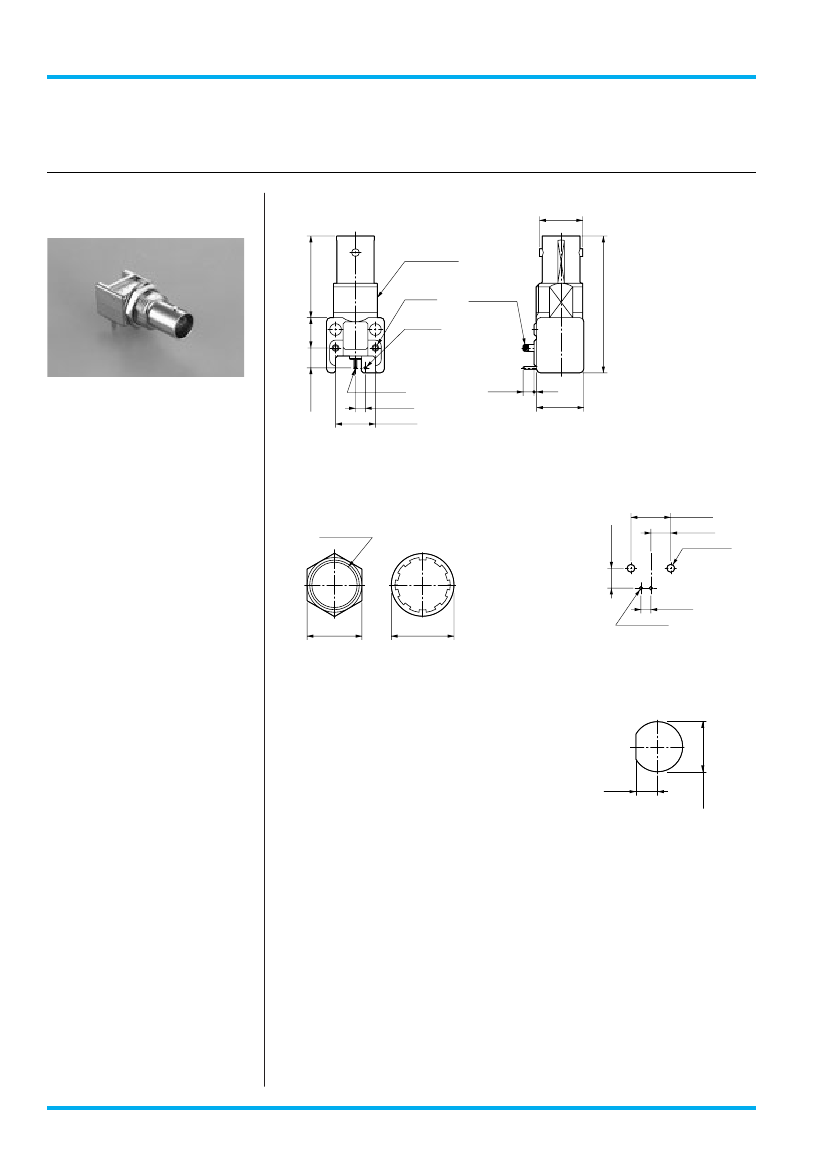

BNCS007C00 Drawing
RF Coaxial Connectors

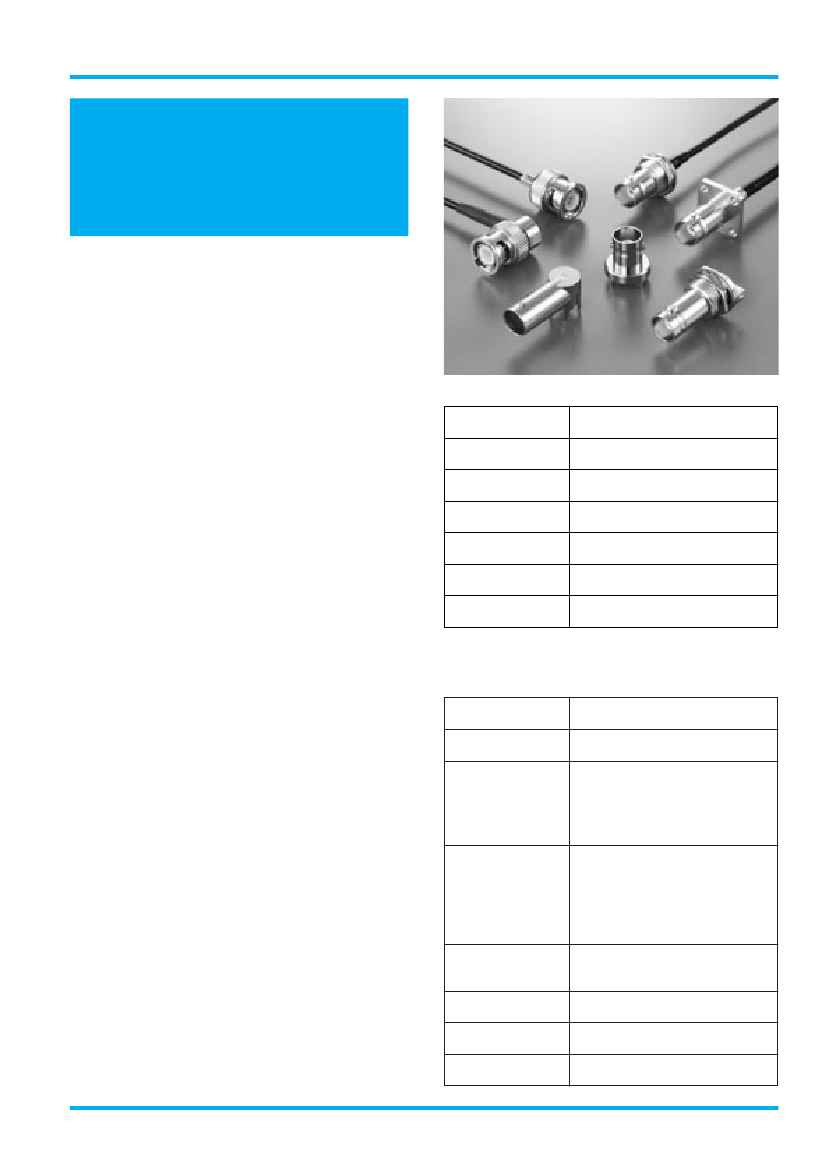

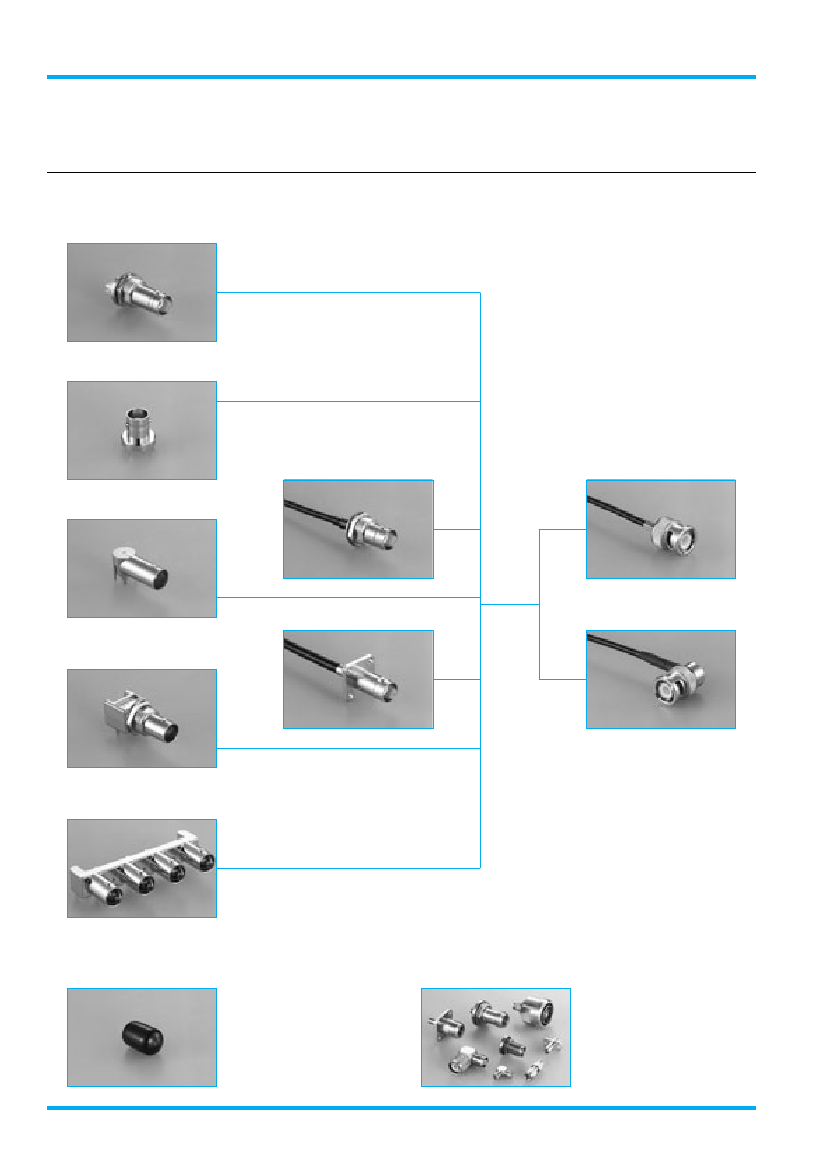

Product Photos
BNCS007C00
Standard Package	1
Category	Connectors, Interconnects
Family	Coaxial Connectors (RF)
Packaging	Bulk
Connector Style	BNC
Connector Type	Jack, Female Socke
Contact Terminati	Solde
Shield Terminati	Solde
Impedance	75 Ohm
Mounting Type	Through Hole, Right Angle
Cable Grou	-
Fastening Type	Bayonet Lock
Frequency - Max	2.4GHz
Features	-
Housing Col	Silve
Ingress Protecti	-
Body Material	Zinc Alloy
Body Finish	Nickel
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Voltage Rating	-
Operating Temperature	-40°C ~ 85°C

RoHS Compliant

COAXIAL CONNECTORS

CAT.NO.COAX-007A-E.FEB.2008

2008

	BNCS007C00
Description	conn bnc jack R/A 75 ohm pcb
Standard Package	1
Category	Connectors, Interconnects
Family	Coaxial Connectors (RF)
Packaging	Bulk
Connector Style	BNC
Connector Type	Jack, Female Socke
Contact Terminati	Solde
Shield Terminati	Solde
Impedance	75 Ohm
Mounting Type	Through Hole, Right Angle
Fastening Type	Bayonet Lock
Frequency - Max	2.4GHz
Housing Col	Silve
Body Material	Zinc Alloy
Body Finish	Nickel
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Operating Temperature	-40°C ~ 85°C
