787535-4 datasheet, PDF - EEWORLD Datasheet

787535-4: Descriptionconn champ rcpt 80pos .050 R/A; CategoryThe connector; File Size223KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

787535-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	787535-4	-	-	View	Buy Now

conn champ rcpt 80pos .050 R/A

Parameter Name	Attribute value
Datasheets

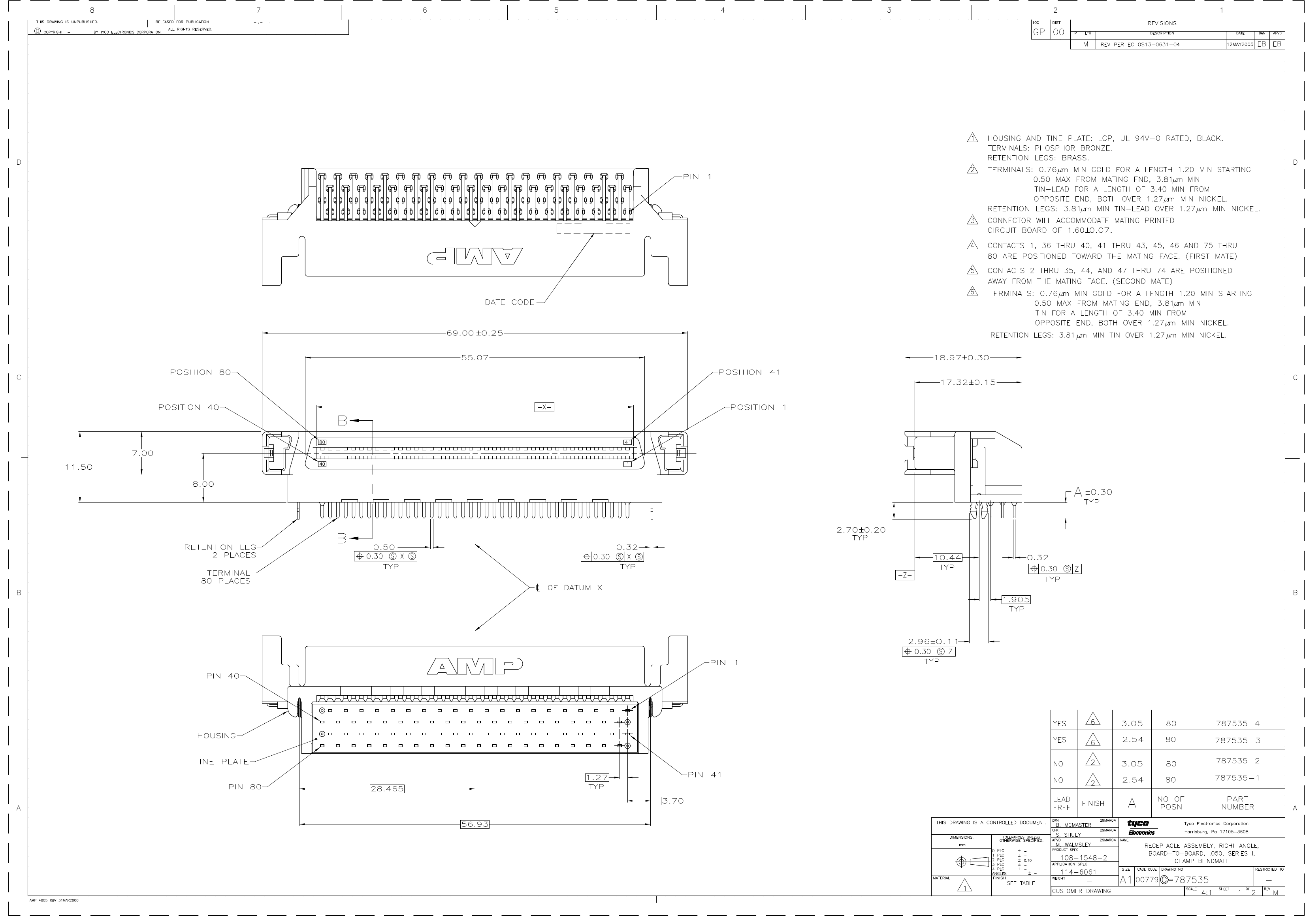

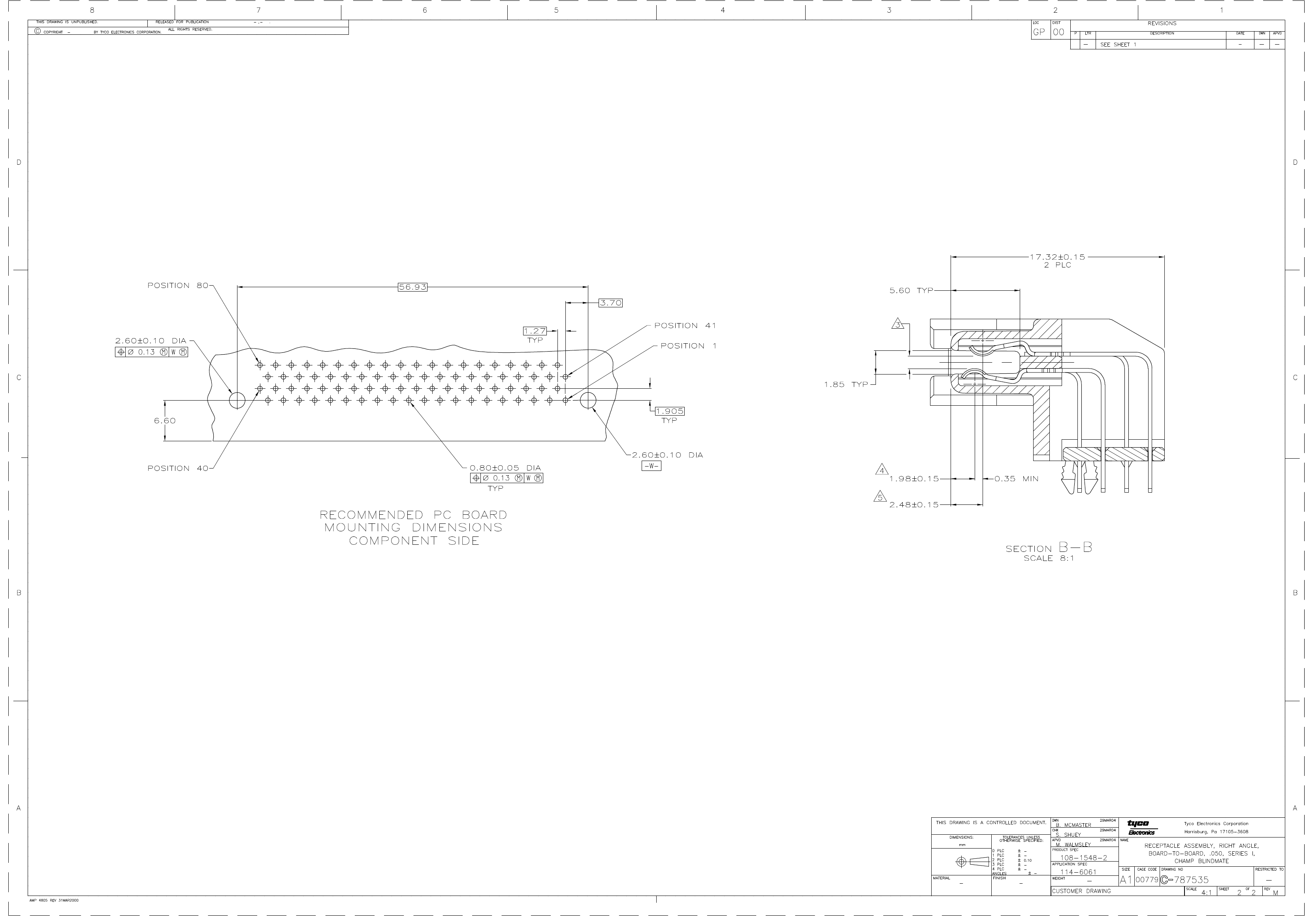

787535
CHAMP Series I Appl Spec
Product Photos
787535-4
RoHS Informati
787535-4 Statement of Compliance
RoHS 2 Stateme
3D Model
787535-4.pdf
787535-4.igs
787535-4.s
Standard Package	40
Category	Connectors, Interconnects
Family	D-Shaped Connectors - Centronics
Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Number of Positions	80
Number of Rows	2
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Flange Feature	-
Type	Board to Board, SCA-2, SCSI
Features	Board Lock, Latch Lock
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Mating Products	5-5917593-9-ND - CONN PLUG 80POS .050 R/A5-917593-9-ND - CONN PLUG 80POS .050 R/A
Other Names	787535-4-NDA114421

	787535-4	787535-3	787535-1	787535-2
Description	conn champ rcpt 80pos .050 R/A	conn champ rcpt 80pos .050 R/A	conn rcpt 80pos R/A blindmate	conn champ rcpt 80pos .050 R/A
Standard Package	40	40	1,280	320
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Shaped Connectors - Centronics	D-Shaped Connectors - Centronics	D-Shaped Connectors - Centronics	D-Shaped Connectors - Centronics
Connector Style	Outer Shroud Contacts	Outer Shroud Contacts	Outer Shroud Contacts	Outer Shroud Contacts
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle
Number of Positions	80	80	80	80
Number of Rows	2	2	2	2
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Terminati	Solde	Solde	Solde	Solde
Type	Board to Board, SCA-2, SCSI	Board to Board, SCA-2, SCSI	Board to Board	Board to Board
Features	Board Lock, Latch Lock	Board Lock, Latch Lock	Board Lock	Board Lock, Latch Lock
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Mating Products	5-5917593-9-ND - CONN PLUG 80POS .050 R/A5-917593-9-ND - CONN PLUG 80POS .050 R/A	5-5917593-9-ND - CONN PLUG 80POS .050 R/A5-917593-9-ND - CONN PLUG 80POS .050 R/A	5-5917593-9-ND - CONN PLUG 80POS .050 R/A5-917593-9-ND - CONN PLUG 80POS .050 R/A	5-5917593-9-ND - CONN PLUG 80POS .050 R/A5-917593-9-ND - CONN PLUG 80POS .050 R/A
