25-7330 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 25-7330

Preview

25-7330: Descriptionconn adapt jack-jack uhf; CategoryThe connector; File Size74KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

25-7330 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	25-7330	-	-	View	Buy Now

25-7330 Overview

conn adapt jack-jack uhf

25-7330 Parametric

Parameter Name	Attribute value
Datasheets
25-7330 Drawing
Product Photos
CP-AD204
Standard Package	10
Category	Connectors, Interconnects
Family	Coaxial Connectors (RF) - Adapters
Packaging	Bulk
Adapter Type	Jack to Jack
Adapter Series	UHF to UHF
Center Gende	Female to Female
Convert From (Adapter End)	UHF Jack, Female Socke
Convert To (Adapter End)	UHF Jack, Female Socke
Conversion Type	Same Series
Impedance	Non-Cons
Style	Straigh
Mounting Type	Free Hanging (In-Line)
Frequency - Max	500MHz
Ingress Protecti	-
Features	-
Body Material	Brass
Body Finish	Nickel
Dielectric Material	Polyoxymethylene (POM) Acetal
Center Contact Material	Beryllium Coppe
Center Contact Plating	Gold
Mating Cycles	500
Dynamic Catalog	Coaxial, RF Adapters
Other Names	012446004757257330367-1083CP-AD204

Preview

Download Datasheet

View All

5

4

3

2

1

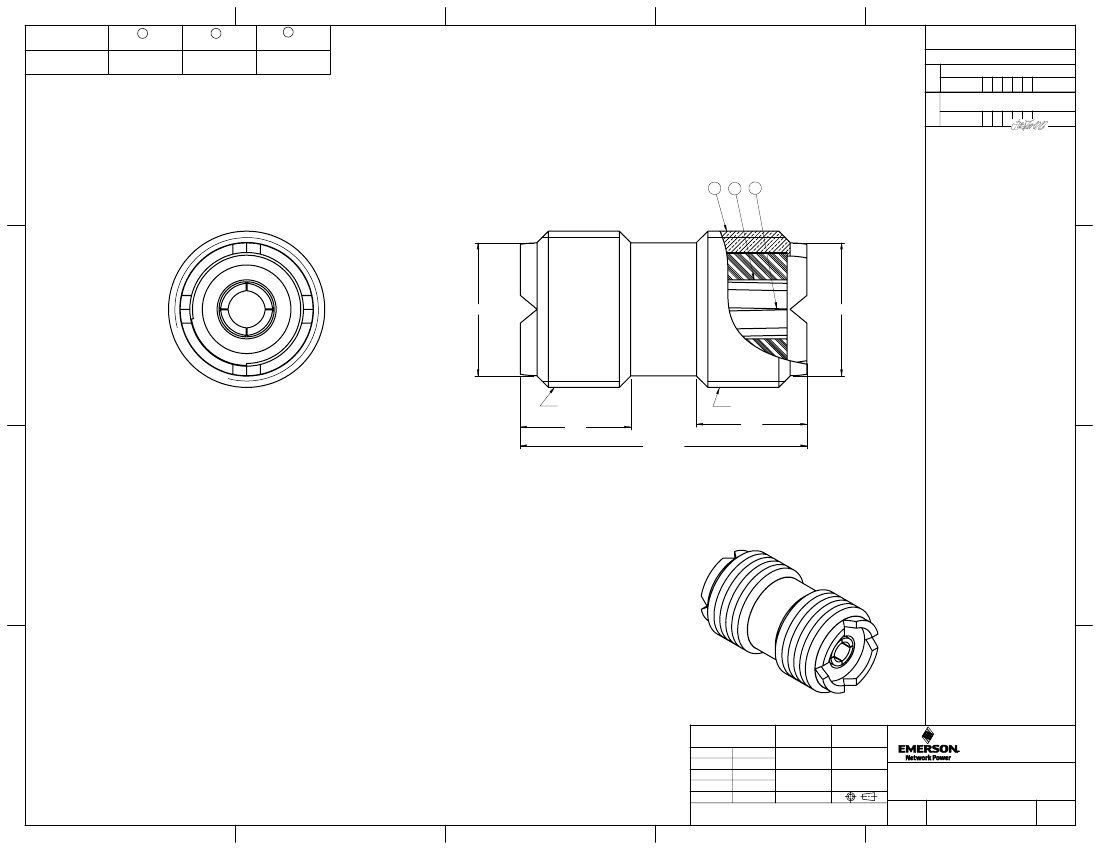

DRAWING NO.

PART NUMBER

CP-AD204

ITEM 1

BODY

BRASS

NICKEL PLATED

ITEM 2

INSULATOR

DELRIN

ITEM 3

CONTACT

BERLLIUM

GOLD PLATED

CP-AD204

REVISIONS

A

B

RELEASE FOR QUTATION

06-21-06

Y

U

W

T

ADD NOTES 4 & 5

CHANGE TOL. ON OVERALL LENGTH

12-26-06

Z

L

T

D

Thomas Chow

2007.01.04

14:07:53 +08'00'

D

1

2

3

O

13.5

C

O

13.5

C

5/8-24 UNEF-2A

11.2

29.1 ±0.5

5/8-24 UNEF-2A

11.2

B

NOTES:

1. ELECTRICAL SPECIFICATIONS

UHF IMPEDANCE:

NON-CONSTANT

WORKING VOLTAGE:500 VOLTS RMS AT SEA LEVEL

DIELECTRIC WITHSTANDING VOLTAGE:1500 VOLTS RMS AT SEA LEVEL

INSULATION RESISTANCE: 5000 MEGOHMS MIN

2. ENVIRONMENTAL SPECIFICATIONS

TEMPERATURE RANGE: -55

℃

TO +85

℃

3. MECHANICAL CHARACTERISTICS:

DURABILITY: 500 CYCLES

4. PRODUCT SHOULD BE RoHS COMPLIANCE.

A

THIS DRAWING TO BE INTERPRETED

PER ANSI Y 14.5M - 1994

5. PACKAGING REQUIREMENT FOLLOWS ENGINEERING DOCUMENT P/N 836-40200001XX

COMPANY CONFIDENTIAL

TOLERANCE UNLESS DRAWN BY

OTHERWISE SPECIFIED

GARY.ZHG

DECIMALS

X

X.X

X.XX

ANGLES

mm

CHECKED BY

DATE

12-26-06

DATE

TITLE

A

Connectivity

Solutions

UHF ADAPTER

，

JACK TO JACK

DRAWING NO.

SIZE

+

1.0

-

+

0.5

-

+

0.2

-

+

0.5

v

-

12-26-06

APPROVED BY DATE

LINDA.WU

THOMAS

12-26-06

SHEET

1 OF 1

U/M

mm

THIS DRAWING WAS PRODUCED BY COMPUTER,

DO NOT SCALE DRAWING OR UPDATE MANUALLY.

CP-AD204

1

C

5

4

3

2

25-7330 Related Products

	25-7330	CPAD204
Description	conn adapt jack-jack uhf	RF connector uhf jack/jack adap
