Part Number

Search

745A508

Description
conn adapt jack-jack uhf
CategoryThe connector
File Size56KB,3 Pages
ManufacturerBomar
Environmental Compliance
Download Datasheet Parametric View All

745A508 Online Shopping

Suppliers Part Number Price MOQ In stock
745A508 - - View Buy Now

745A508 Overview

conn adapt jack-jack uhf

745A508 Parametric

Parameter NameAttribute value
Datasheets
UHF Connectors
Standard Package1,000
CategoryConnectors, Interconnects
FamilyCoaxial Connectors (RF) - Adapters
PackagingBulk
Adapter TypeJack to Jack
Adapter SeriesUHF to UHF, Dual
Center GendeFemale to Female
Convert From (Adapter End)UHF Jack, Female Socke
Convert To (Adapter End)UHF Jack, Female Socket (2)
Conversion TypeSame Series
ImpedanceNon-Cons
StyleT-Shape
Mounting TypeFree Hanging (In-Line)
Frequency - Max500MHz
Ingress Protecti-
Features-
Body MaterialBrass
Body FinishNickel
Dielectric Material-
Center Contact Material-
Center Contact Plating-
Mating Cycles-

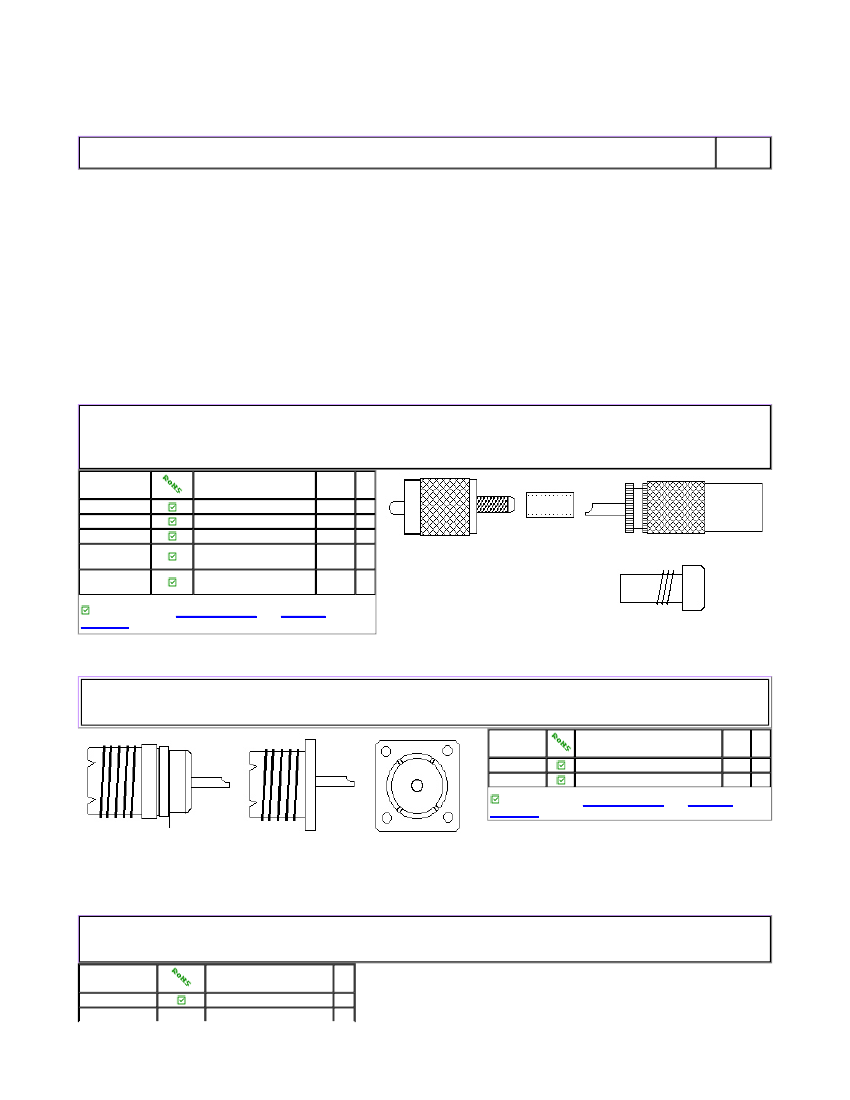

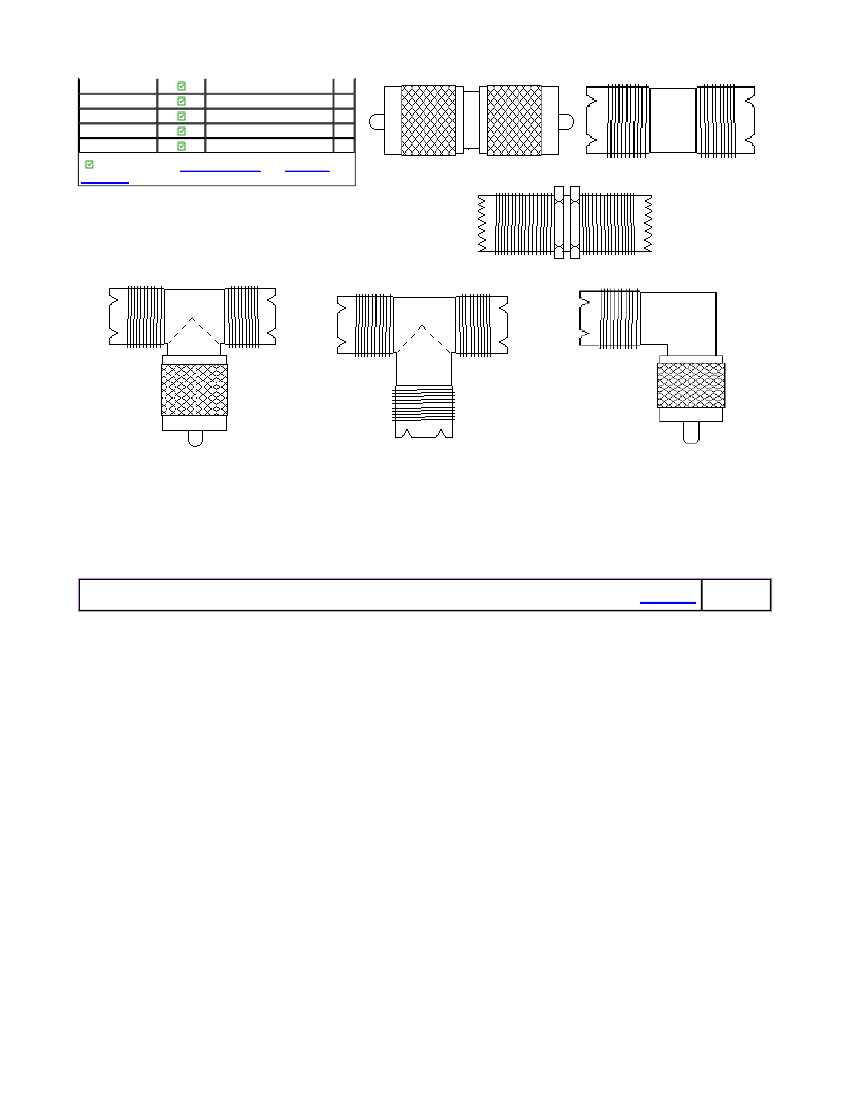

Specifications for UHF Connectors
_____________________________
UHF style connectors are inexpensive, general purpose connectors with non-constant impedance for use at
500 volts or less, and for use with low frequencies to 200Mhz for best performance, or to 500MHz but with
diminished performance. These coaxial connectors are widely used in citizens band communications,
CCTV, public address systems, mobile radio equipment, civil defense, ship to shore communications,
antenna connections, landing systems, and ground control apparatus. UHF connectors use a 5/8-24 threaded
coupling. They are available in a wide selection of sizes to fit various cable sizes.
s
MATERIALS
Connector Parts
Connector Body and Parts
Male Contact Pin
Outer Contact
Crimp Ferrule
Insulators,
Plating
Material
Brass
Brass
Brass
Annealed Copper
Delrin, Teflon
Nickel
ELECTRICAL
Requirement
Impedance
Frequency Range
VSWR
Working Voltage (At Sea
level)
Insulation Resistance
Contact Resistance
Test Voltage
Performance
Non Constant
0-500MHz
1.25 Max.
750V rms
5000 Megohm Min.
5mW Max.
2000V rms
MECHANICAL & ENVIRONMENTAL
Requirement
Durability
Performance
500 Matings
RG58 - 60 Lb. Min.
Cable Retention (Cable Types) RG59 - 75 Lb. Min.
RG8, 213 - 150 Lb. Min.
Coupling Nut
45 lbs. Maximum
Delrin: -55 to +85°C
Temperature Range
Teflon: -55 to +200°C
