NOTES:
1. MATERIALS AND FINISHES:
BODYS - BRASS, SILVER PLATING
CONTACT - BERYLLIUM COPPER, GOLD PLATING
INSULATOR - PTFE
2.
3.
ELECTRICAL:
A. IMPEDANCE:
50 OHM
82-5558
REVISIONS
REV
DRAWING NO.
THIRD ANGLE PROJ.
L
A
STAMP WAS 74868 M55339/20-201
RELEASE TO MFG.
DESCRIPTION
DATE
11/18/13
--
ECO
49787
--
APPR
CPM
--
MECHANICAL:
A. DURABILITY: 500 CYCLES MIN.
B. TEMPERATURE RANGE: +165 $C TO -65 $C
PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL, 82-5558 , AND DATE CODE"
4.
MIL-A-55339
INSPECTION
1.356 MAX
.434
SCALE
2.000
INTERFACE PER
MIL-STD-348
SERIES: N PLUG
INTERFACE PER
MIL-STD-348
SERIES: BNC JACK
STAMP "74868 M55339/20-00201"
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015
(0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
SEE NOTES
DRAWN
NISCHIT MV
07-Oct-09
19-Oct-76
DATE
DATE
DATE

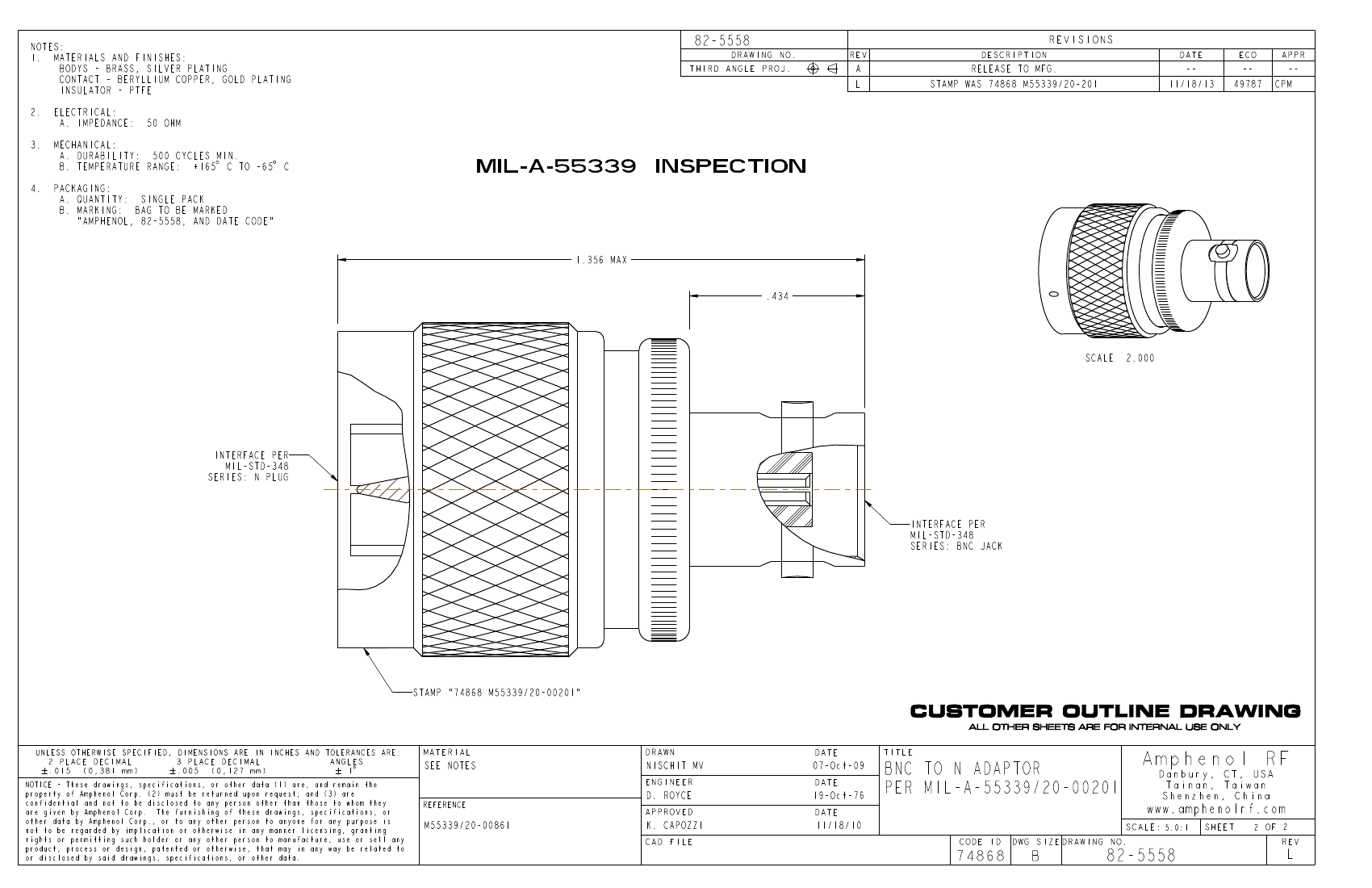

TITLE
ENGINEER
REFERENCE
D. ROYCE
BNC TO N ADAPTOR
PER MIL-A-55339/20-00201
CODE ID
DWG SIZE DRAWING NO.
Amphenol RF
www.amphenolrf.com
SCALE: 5.0:1
SHEET
Danbury, CT, USA
Tainan, Taiwan
Shenzhen, China
M55339/20-00861
APPROVED
CAD FILE
K. CAPOZZI
11/18/10
2 OF 2
REV
74868
B
82-5558
