DX10BM-80S datasheet, PDF - EEWORLD Datasheet

DX10BM-80S: Descriptionconn recept RT ang 80 pos pcb; CategoryThe connector The connector; File Size6MB，18 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

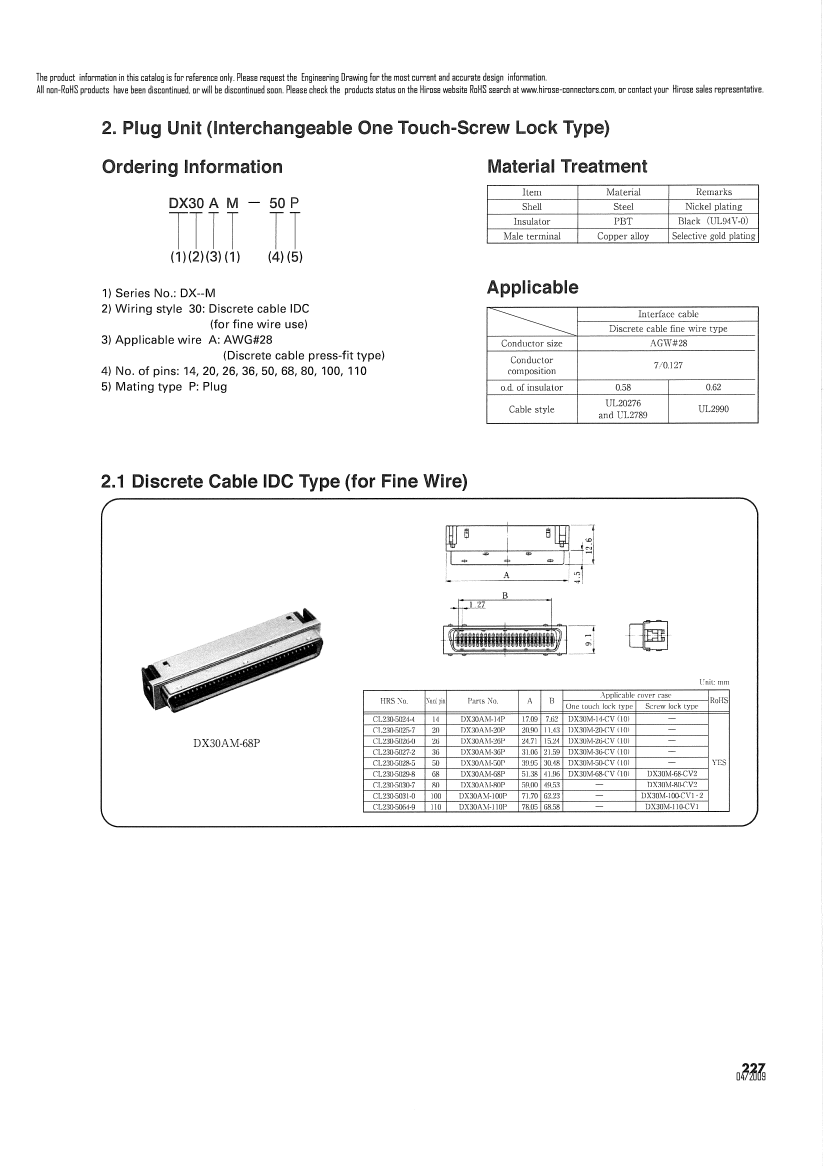

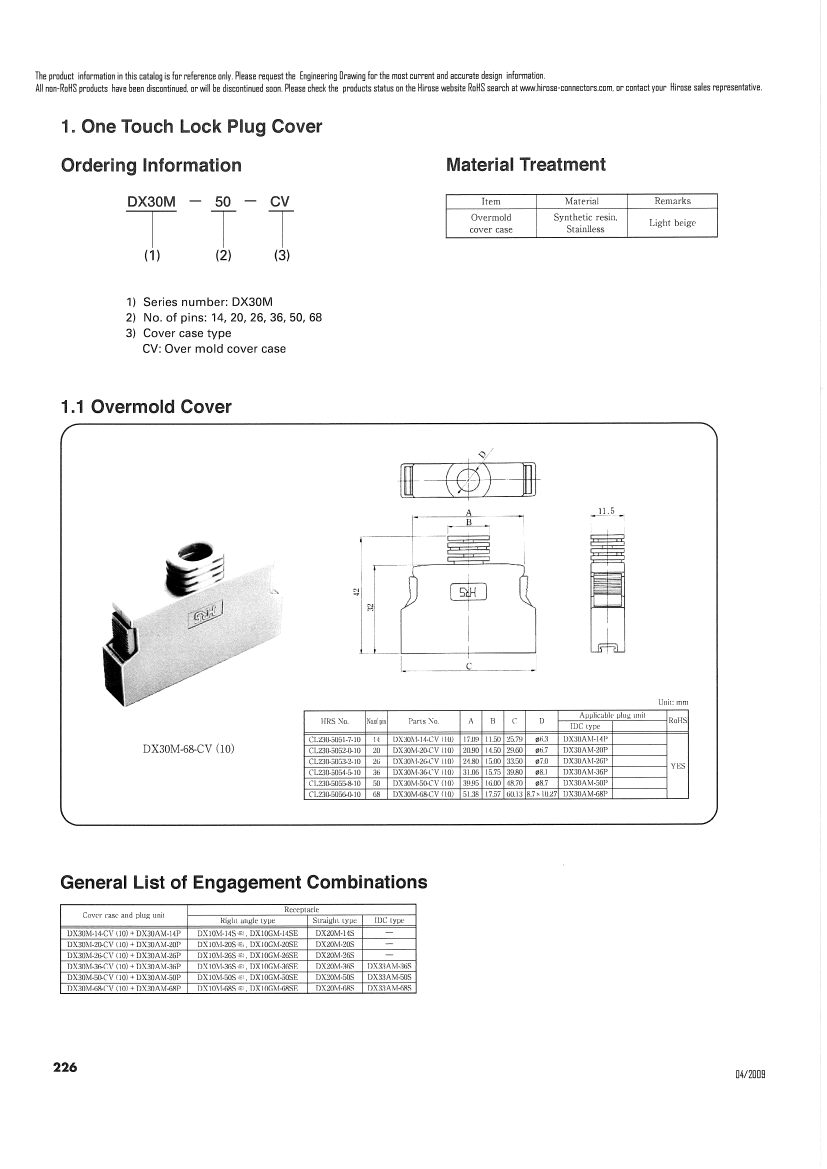

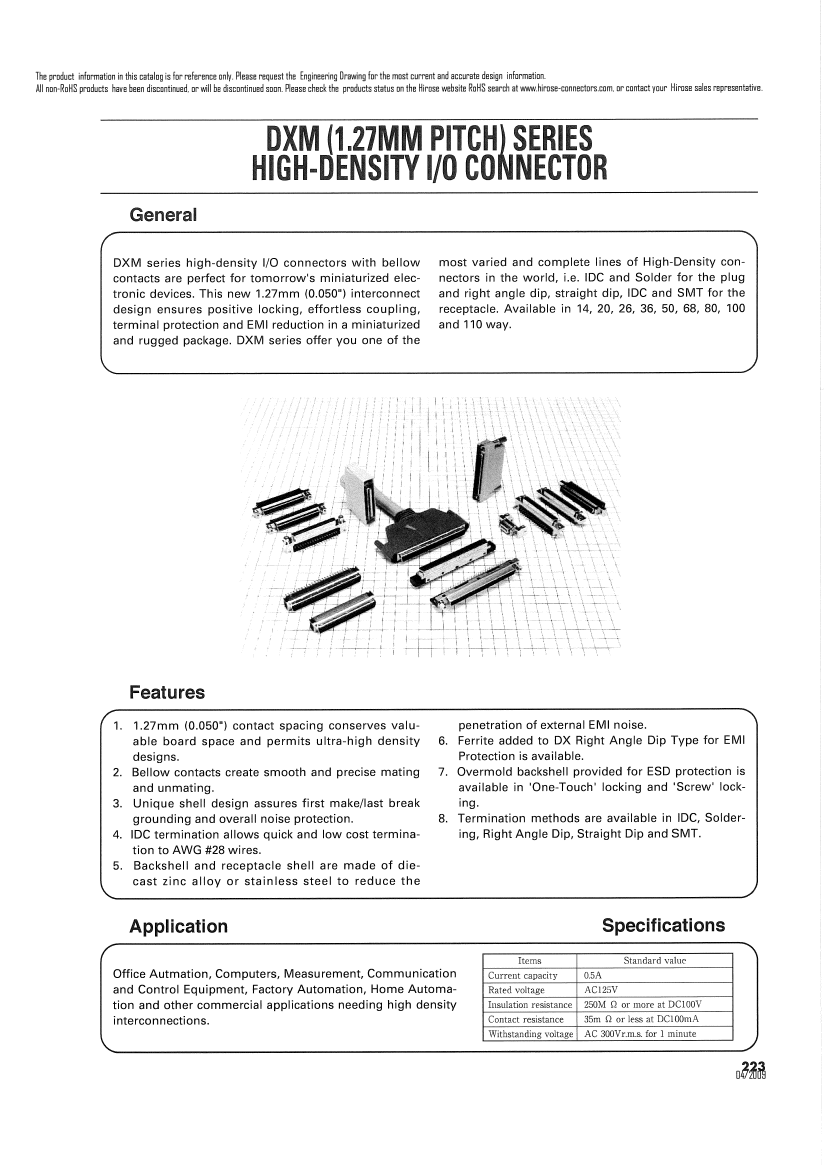

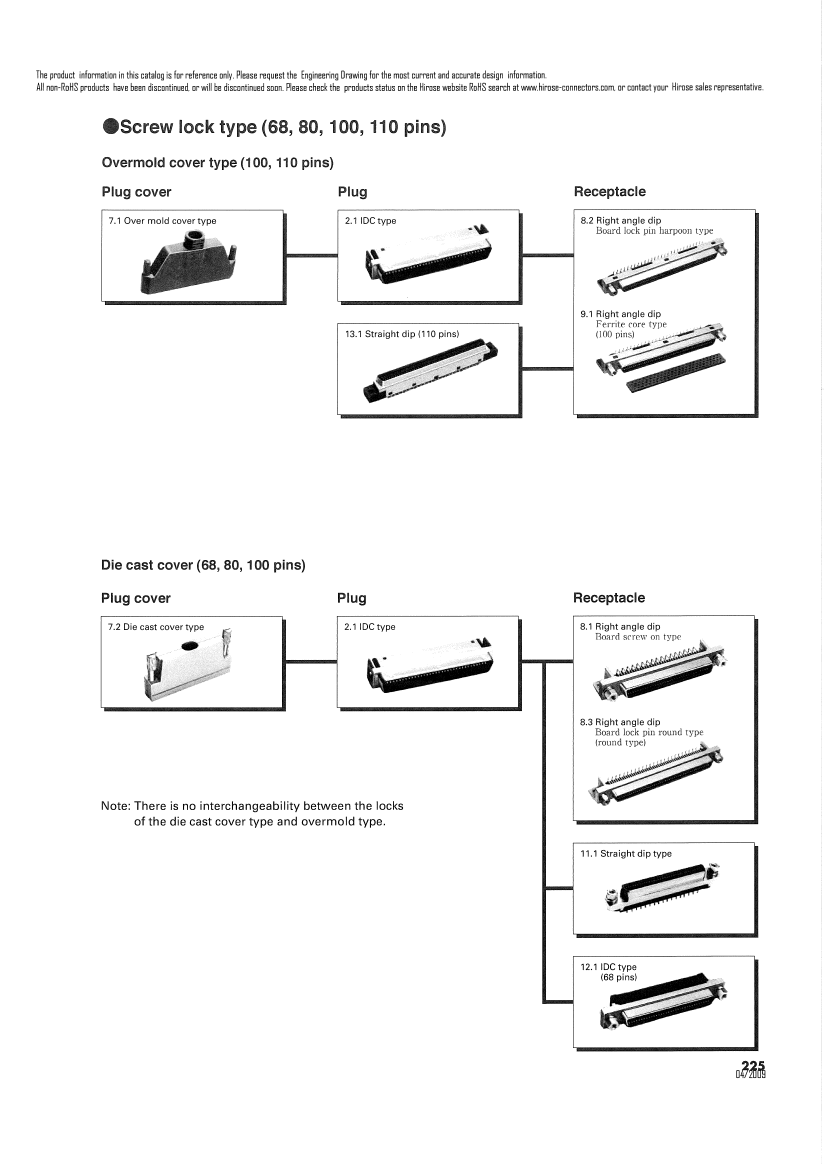

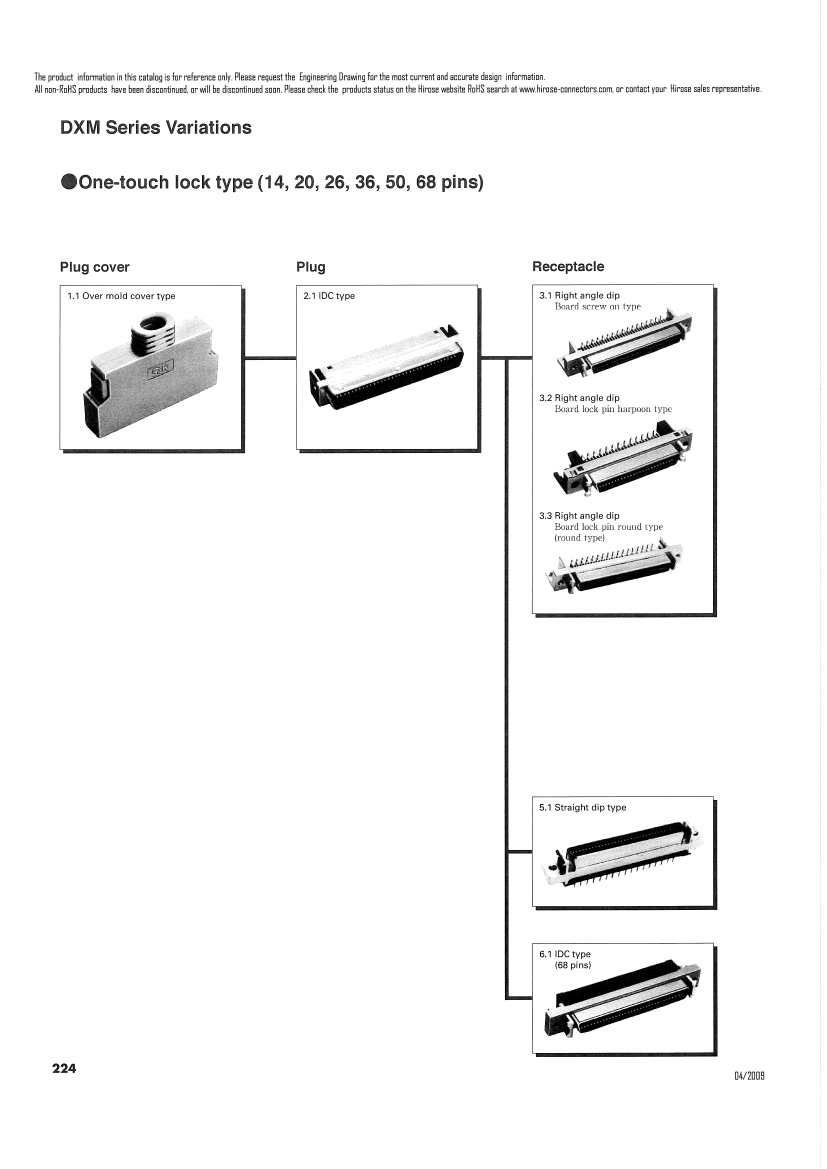

DX10BM-80S Overview

conn recept RT ang 80 pos pcb

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hirose
Reach Compliance Code	unknown
body width	0.354 inch
subject depth	0.453 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	250000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	DX10
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	M2.6X0.45
Installation option 2	SCREWLOCKS
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.154 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	80
UL Flammability Code	94V-0
Base Number Matches	1
