5174683-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5174683-7

5174683-7: Descriptionconn D-cap male pins 68pos vert; CategoryThe connector; File Size102KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5174683-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5174683-7	-	-	View	Buy Now

5174683-7 Overview

conn D-cap male pins 68pos vert

5174683-7 Parametric

Parameter Name	Attribute value
Datasheets

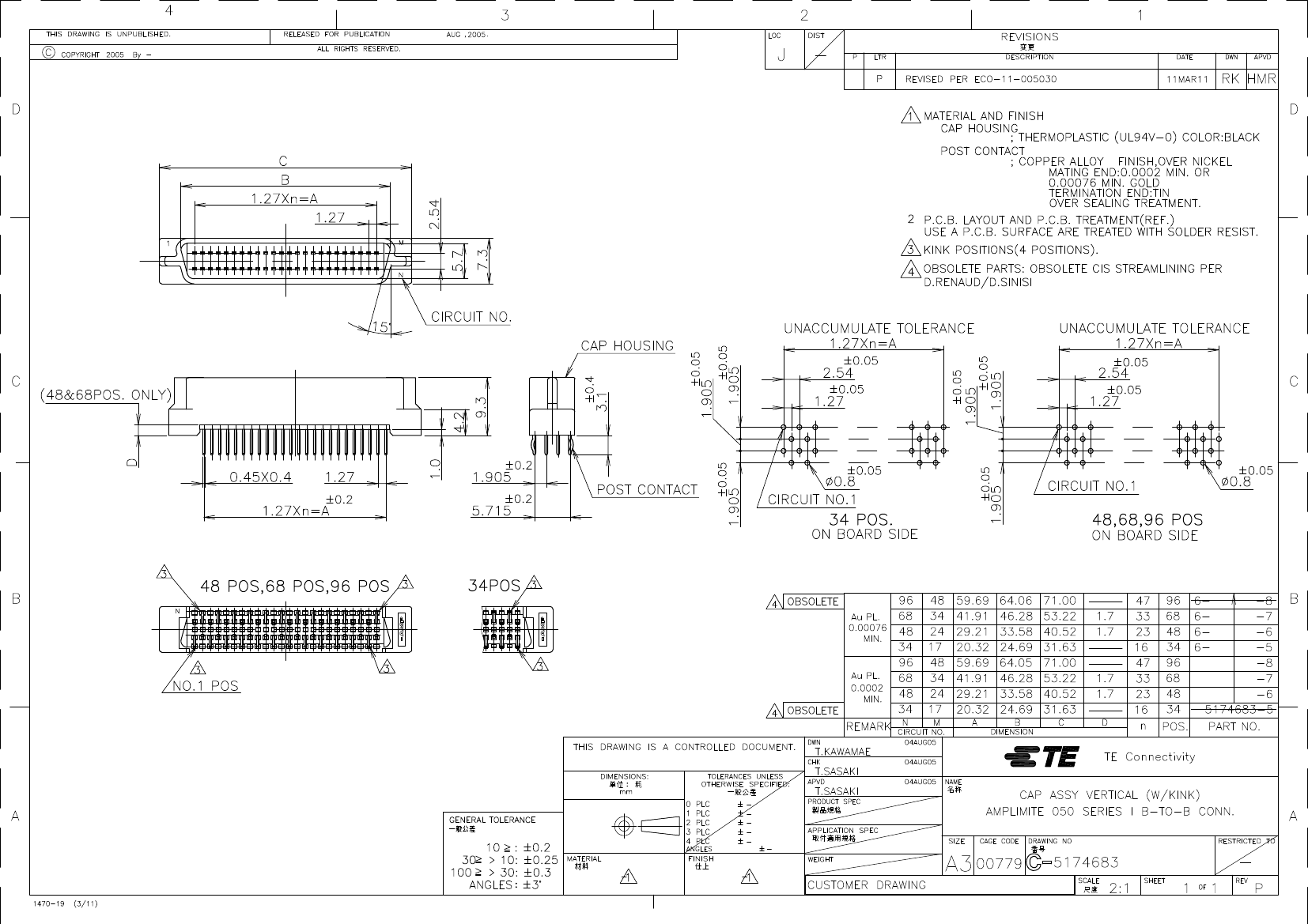

5174683 Drawing
Product Photos
174683-7
Product Training Modules
AMPLIMITE D-Sub Connectors
RoHS Informati
5174683-7 Statement of Compliance
RoHS 2 Stateme
Featured Produc
AMPLIMITE D-Subminiature Connectors
3D Model
5174683-7.pdf
Standard Package	50
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Bulk
Connector Style	D-Type, Board to Board
Connector Type	Cap, Male Pins
Number of Positions	68
Number of Rows	2
Shell Size, Connector Layou	0.050 Pitch x 0.100 Row to Row
Contact Type	Signal
Mounting Type	Through Hole
Flange Feature	-
Terminati	Kinked Pi
Features	-
Shell Material, Finish	-
Contact Finish	Gold
Contact Finish Thickness	8µin (0.20µm)
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	100V
Current Rating	1A
Housing Material	Thermoplastic
Col	Black
Mating Products	6-316173-7-ND - CONN PLUG W/SCKT 68POS VERT T/HA113490-ND - CONN D-PLUG FEM SCKT 68POS R/A8-5174682-7-ND - CONN D-PLUG FEM SCKT 68POS R/A6-5174681-7-ND - CONN D-PLUG FEM SCKT 68POS VERT5174681-7-ND - CONN D-PLUG FEM SCKT 68POS VERT
Other Names	51746837

Preview

Download Datasheet

View All

5174683-7 Related Products

	5174683-7	5174683-8	6-5174683-5	6-5174683-6	5174683-6
Description	conn D-cap male pins 68pos vert	conn D-cap male pins 96pos vert	conn D-cap male pins 34pos vert	conn D-cap male pins 48pos vert	conn D-cap male pin 48pos vert
Standard Package	50	48	1,800	1,344	88
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Bulk	Tube	Bulk	Bulk	Bulk
Connector Style	D-Type, Board to Board	D-Type, Board to Board	D-Type, Board to Board	D-Type, Board to Board	D-Type, Board to Board
Connector Type	Cap, Male Pins	Cap, Male Pins	Cap, Male Pins	Cap, Male Pins	Cap, Male Pins
Number of Positions	68	96	34	48	48
Number of Rows	2	2	2	2	2
Shell Size, Connector Layou	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row
Contact Type	Signal	Signal	Signal	Signal	Signal
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Kinked Pi	Kinked Pi	Kinked Pi	Kinked Pi	Kinked Pi
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	8µin (0.20µm)	8µin (0.20µm)	30µin (0.76µm)	30µin (0.76µm)	8µin (0.20µm)
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	100V	100V	100V	100V	100V
Current Rating	1A	1A	1A	1A	1A
Housing Material	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic
Col	Black	Black	Black	Black	Black
Mating Products	6-316173-7-ND - CONN PLUG W/SCKT 68POS VERT T/HA113490-ND - CONN D-PLUG FEM SCKT 68POS R/A8-5174682-7-ND - CONN D-PLUG FEM SCKT 68POS R/A6-5174681-7-ND - CONN D-PLUG FEM SCKT 68POS VERT5174681-7-ND - CONN D-PLUG FEM SCKT 68POS VERT	6-5174681-8-ND - CONN D-PLUG FEM SCKT 96POS VERT5174681-8-ND - CONN D-PLUG FEM SCKT 96POS VERT5173277-8-ND - CONN D-PLUG FEM SCKT 96POS R/A174207-8-ND - CONN D-PLUG W/SCKT R/A 96P .050	6-174207-5-ND - CONN D-PLUG W/SCKT R/A 34P .050	6-5174207-6-ND - CONN D-PLUG W/SCKT R/A 48P .0506-5174681-6-ND - CONN D-PLUG FEM SCKT 48POS VERT5174681-6-ND - CONN D-PLUG FEM SCKT 48POS VERT6-5173277-6-ND - CONN D-PLUG FEM SCKT 48POS R/A	6-5174207-6-ND - CONN D-PLUG W/SCKT R/A 48P .0506-5174681-6-ND - CONN D-PLUG FEM SCKT 48POS VERT5174681-6-ND - CONN D-PLUG FEM SCKT 48POS VERT6-5173277-6-ND - CONN D-PLUG FEM SCKT 48POS R/A
