5745183-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5745183-2

5745183-2: Descriptionconn D-sub rcpt str 9pos T/H AU; CategoryThe connector; File Size101KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5745183-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5745183-2	-	-	View	Buy Now

5745183-2 Overview

conn D-sub rcpt str 9pos T/H AU

5745183-2 Parametric

Parameter Name	Attribute value
Datasheets

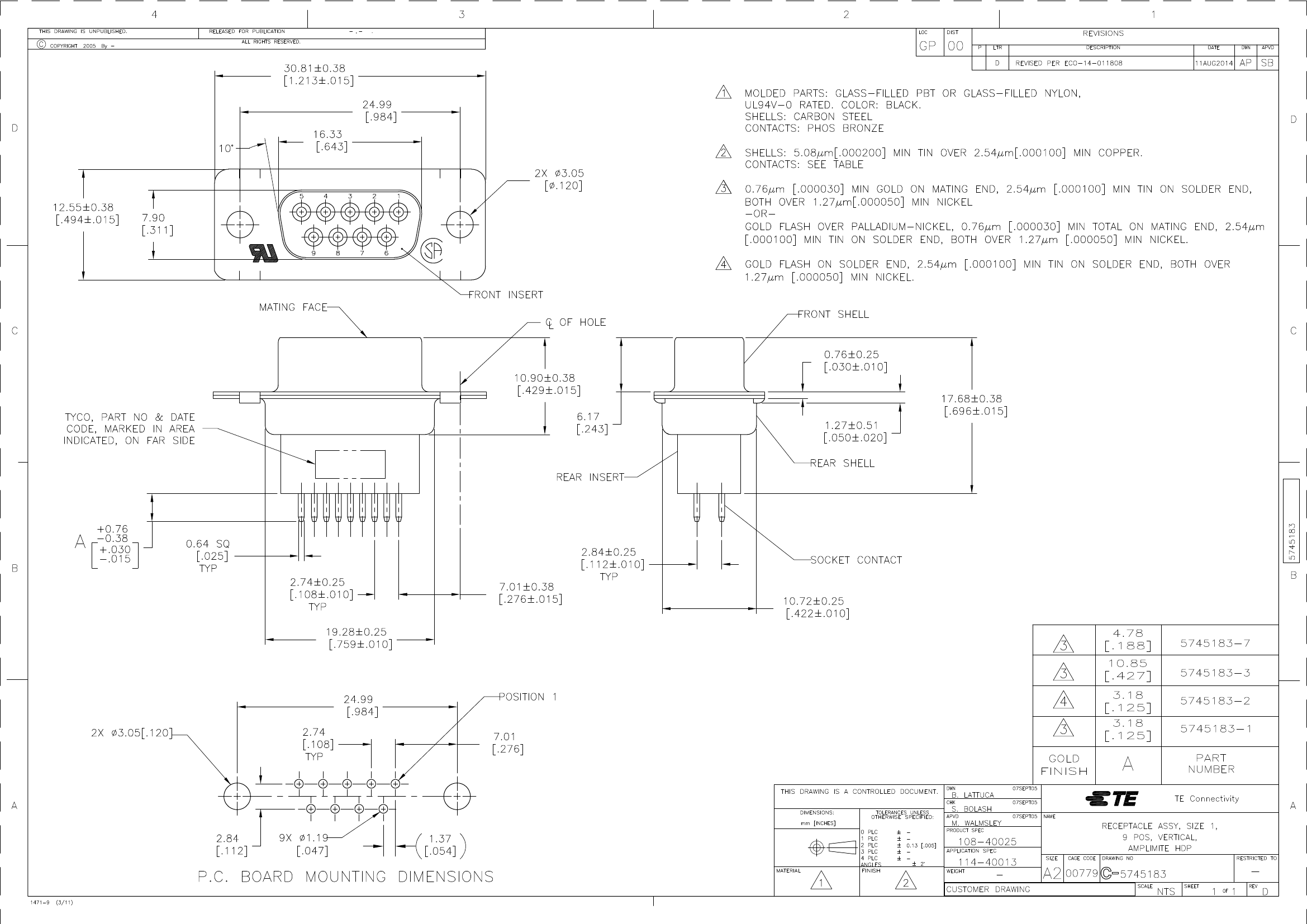

5745183 Drawing
Product Photos
5745183-2
Product Training Modules
AMPLIMITE D-Sub Connectors
RoHS Informati
5745183-2 Statement of Compliance
RoHS 2 Stateme
Catalog Drawings
HD-20 Full Metal Side
Featured Produc
AMPLIMITE D-Subminiature Connectors
3D Model
5745183-2.pdf
Standard Package	17
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tube
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layou	1 (DE, E)
Contact Type	Signal
Mounting Type	Through Hole
Flange Feature	Housing/Shell (Unthreaded)
Terminati	Solde
Features	-
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	125V
Current Rating	6A
Housing Material	Polyamide (PA), Nylon, Glass Filled
Col	Black
Dynamic Catalog	AMPLIMITE HD-20 Series
Mating Products	A101880-ND - CONN D-SUB PLUG 9POS SLD CUP749808-8-ND - CONN D-SUB PLUG 9POS CRIMP5-747904-5-ND - CONN D-SUB PLUG 9POS SLD CUP AUA32507-ND - CONN D-SUB PLUG 9POS SLD CUP AUAMR09B-ND - CONN D-SUB PLUG 9POS GOLDA31966-ND - CONN D-SUB PLUG 9POS 20-22AWG AUA31965-ND - CONN D-SUB PLUG 9POS 26-30AWG AUA31930-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31929-ND - CONN D-SUB PLUG 9POS 22-26AWG AU
Other Names	57451832A34046

Preview

Download Datasheet

View All

5745183-2 Related Products

	5745183-2	5745183-7	5745183-3	5745183-1
Description	conn D-sub rcpt str 9pos T/H AU	conn D-sub rcpt str 9pos T/H AU	conn D-sub rcpt str 9pos T/H AU	conn D-sub rcpt str 9pos T/H AU
Standard Package	17	17	17	17
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Tube	Tube	Tube	Tube
Connector Style	D-Sub	D-Sub	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	9	9	9	9
Number of Rows	2	2	2	2
Shell Size, Connector Layou	1 (DE, E)	1 (DE, E)	1 (DE, E)	1 (DE, E)
Contact Type	Signal	Signal	Signal	Signal
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Terminati	Solde	Solde	Solde	Solde
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	Flash	Flash	Flash	Flash
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	125V	125V	125V	125V
Current Rating	6A	6A	6A	6A
Housing Material	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled
Col	Black	Black	Black	Black
Mating Products	A101880-ND - CONN D-SUB PLUG 9POS SLD CUP749808-8-ND - CONN D-SUB PLUG 9POS CRIMP5-747904-5-ND - CONN D-SUB PLUG 9POS SLD CUP AUA32507-ND - CONN D-SUB PLUG 9POS SLD CUP AUAMR09B-ND - CONN D-SUB PLUG 9POS GOLDA31966-ND - CONN D-SUB PLUG 9POS 20-22AWG AUA31965-ND - CONN D-SUB PLUG 9POS 26-30AWG AUA31930-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31929-ND - CONN D-SUB PLUG 9POS 22-26AWG AU	A101880-ND - CONN D-SUB PLUG 9POS SLD CUP749808-8-ND - CONN D-SUB PLUG 9POS CRIMP5-747904-5-ND - CONN D-SUB PLUG 9POS SLD CUP AUA32507-ND - CONN D-SUB PLUG 9POS SLD CUP AUAMR09B-ND - CONN D-SUB PLUG 9POS GOLDA31966-ND - CONN D-SUB PLUG 9POS 20-22AWG AUA31965-ND - CONN D-SUB PLUG 9POS 26-30AWG AUA31930-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31929-ND - CONN D-SUB PLUG 9POS 22-26AWG AU	A101880-ND - CONN D-SUB PLUG 9POS SLD CUP749808-8-ND - CONN D-SUB PLUG 9POS CRIMP5-747904-5-ND - CONN D-SUB PLUG 9POS SLD CUP AUA32507-ND - CONN D-SUB PLUG 9POS SLD CUP AUAMR09B-ND - CONN D-SUB PLUG 9POS GOLDA31966-ND - CONN D-SUB PLUG 9POS 20-22AWG AUA31965-ND - CONN D-SUB PLUG 9POS 26-30AWG AUA31930-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31929-ND - CONN D-SUB PLUG 9POS 22-26AWG AU	A101880-ND - CONN D-SUB PLUG 9POS SLD CUP749808-8-ND - CONN D-SUB PLUG 9POS CRIMP5-747904-5-ND - CONN D-SUB PLUG 9POS SLD CUP AUA32507-ND - CONN D-SUB PLUG 9POS SLD CUP AUAMR09B-ND - CONN D-SUB PLUG 9POS GOLDA31966-ND - CONN D-SUB PLUG 9POS 20-22AWG AUA31965-ND - CONN D-SUB PLUG 9POS 26-30AWG AUA31930-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31929-ND - CONN D-SUB PLUG 9POS 22-26AWG AU
Other Names	57451832A34046	57451837A34047	57451833A35175	57451831
Dynamic Catalog	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series	-
