1-106505-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-106505-2

1-106505-2: Descriptionconn rcpt 9pos R/A boardlock met; CategoryThe connector; File Size126KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1-106505-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-106505-2	-	-	View	Buy Now

1-106505-2 Overview

conn rcpt 9pos R/A boardlock met

1-106505-2 Parametric

Parameter Name	Attribute value
Datasheets

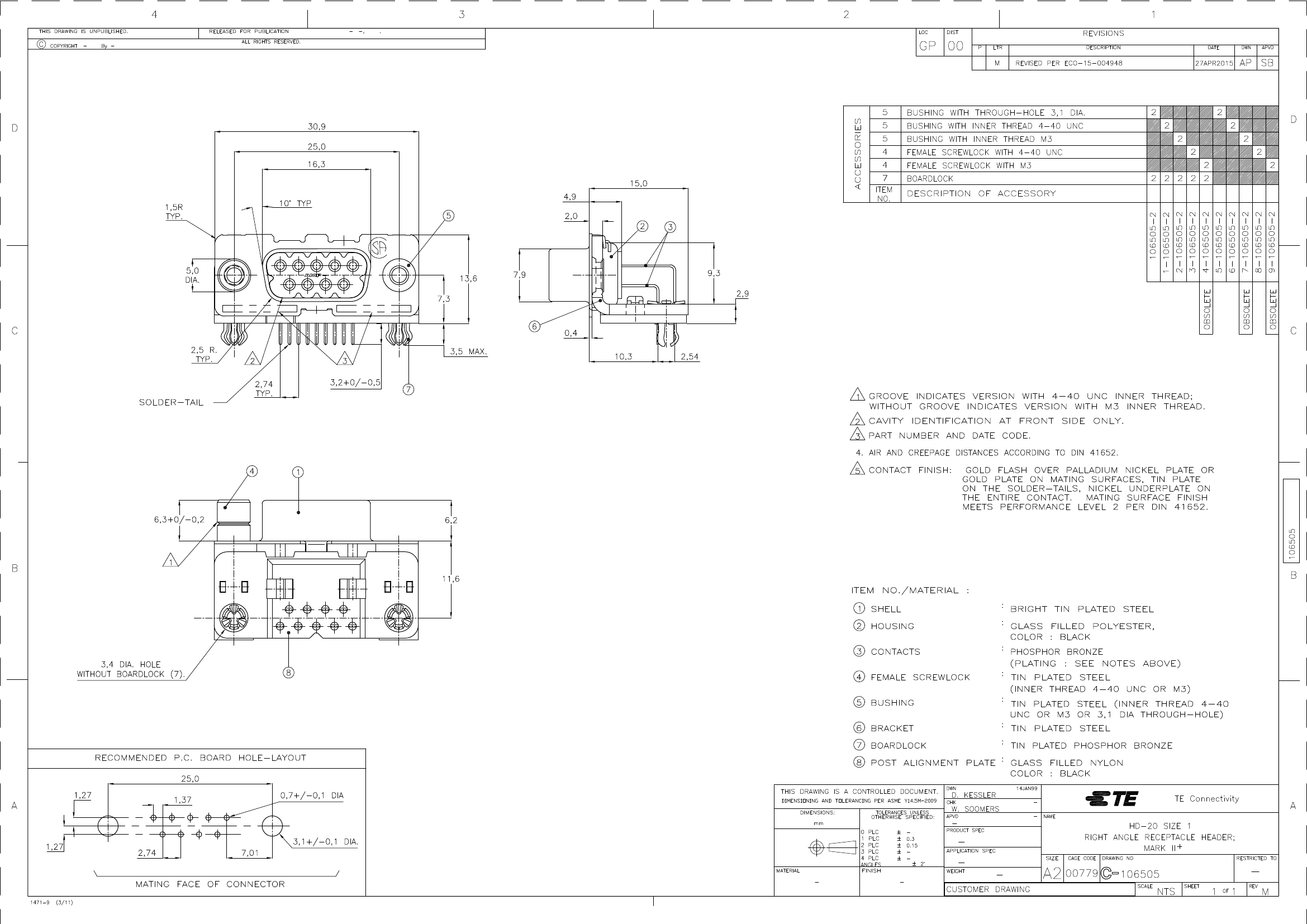

x-106505-x Drawing
AMPLIMITE Catalog
Product Photos
1-106505-2
RoHS Informati
1-106505-2 Statement of Compliance
RoHS 2 Stateme
3D Model
1-106505-2.pdf
Standard Package	55
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tray
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layou	1 (DE, E)
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Flange Feature	Housing/Shell (4-40)
Terminati	Solde
Features	Board Lock
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	125V
Current Rating	6A
Housing Material	Polyester, Glass Filled
Col	Black
Dynamic Catalog	AMPLIMITE HD-20 Series
Mating Products	A101880-ND - CONN D-SUB PLUG 9POS SLD CUP749808-8-ND - CONN D-SUB PLUG 9POS CRIMPA114024-ND - CONN D-SUB PLUG 9POS SLD CUP AUA106369-ND - CONN D-SUB PLUG KIT 9 POS GOLD5-747904-5-ND - CONN D-SUB PLUG 9POS SLD CUP AUA32507-ND - CONN D-SUB PLUG 9POS SLD CUP AUAMR09B-ND - CONN D-SUB PLUG 9POS GOLDAML09B-ND - CONN D-SUB PLUG 9POS GOLDA31966-ND - CONN D-SUB PLUG 9POS 20-22AWG AUA31965-ND - CONN D-SUB PLUG 9POS 26-30AWG AUA31930-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31929-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31540-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31513-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31512-ND - CONN D-SUB PLUG 9P 22-26AWG GOLD
Other Names	1-106505-2-ND11065052A104898

Preview

Download Datasheet

View All

1-106505-2 Related Products

	1-106505-2	3-106505-2	106505-2
Description	conn rcpt 9pos R/A boardlock met	conn rcpt 9pos R/A boardlock met	conn rcpt 9pos R/A boardlock met
Standard Package	55	55	880
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Tray	Tray	Bulk
Connector Style	D-Sub	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	9	9	9
Number of Rows	2	2	2
Shell Size, Connector Layou	1 (DE, E)	1 (DE, E)	1 (DE, E)
Contact Type	Signal	Signal	Signal
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Flange Feature	Housing/Shell (4-40)	Mating Side	Housing/Shell (Unthreaded)
Terminati	Solde	Solde	Solde
Features	Board Lock	Board Lock	Board Lock
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	125V	125V	125V
Current Rating	6A	6A	6A
Housing Material	Polyester, Glass Filled	Polyester, Glass Filled	Polyester, Glass Filled
Col	Black	Black	Black
Mating Products	A101880-ND - CONN D-SUB PLUG 9POS SLD CUP749808-8-ND - CONN D-SUB PLUG 9POS CRIMPA114024-ND - CONN D-SUB PLUG 9POS SLD CUP AUA106369-ND - CONN D-SUB PLUG KIT 9 POS GOLD5-747904-5-ND - CONN D-SUB PLUG 9POS SLD CUP AUA32507-ND - CONN D-SUB PLUG 9POS SLD CUP AUAMR09B-ND - CONN D-SUB PLUG 9POS GOLDAML09B-ND - CONN D-SUB PLUG 9POS GOLDA31966-ND - CONN D-SUB PLUG 9POS 20-22AWG AUA31965-ND - CONN D-SUB PLUG 9POS 26-30AWG AUA31930-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31929-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31540-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31513-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31512-ND - CONN D-SUB PLUG 9P 22-26AWG GOLD	AML09B-ND - CONN D-SUB PLUG 9POS GOLD	A101880-ND - CONN D-SUB PLUG 9POS SLD CUP749808-8-ND - CONN D-SUB PLUG 9POS CRIMP5-747904-5-ND - CONN D-SUB PLUG 9POS SLD CUP AUA32507-ND - CONN D-SUB PLUG 9POS SLD CUP AUAMR09B-ND - CONN D-SUB PLUG 9POS GOLDA31966-ND - CONN D-SUB PLUG 9POS 20-22AWG AUA31965-ND - CONN D-SUB PLUG 9POS 26-30AWG AUA31930-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31929-ND - CONN D-SUB PLUG 9POS 22-26AWG AU
Dynamic Catalog	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series	-
Other Names	1-106505-2-ND11065052A104898	3-106505-2-ND31065052A105026	-
