5747841-2 datasheet, PDF - EEWORLD Datasheet

5747841-2: Descriptionconn D-sub plug R/A 15pos; CategoryThe connector; File Size151KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5747841-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5747841-2	-	-	View	Buy Now

conn D-sub plug R/A 15pos

Parameter Name	Attribute value
Datasheets
5747841
AMPLIMITE Catalog
Product Photos
5747841-2
Product Training Modules
AMPLIMITE D-Sub Connectors
RoHS Informati
5747841-2 Statement of Compliance
RoHS 2 Stateme

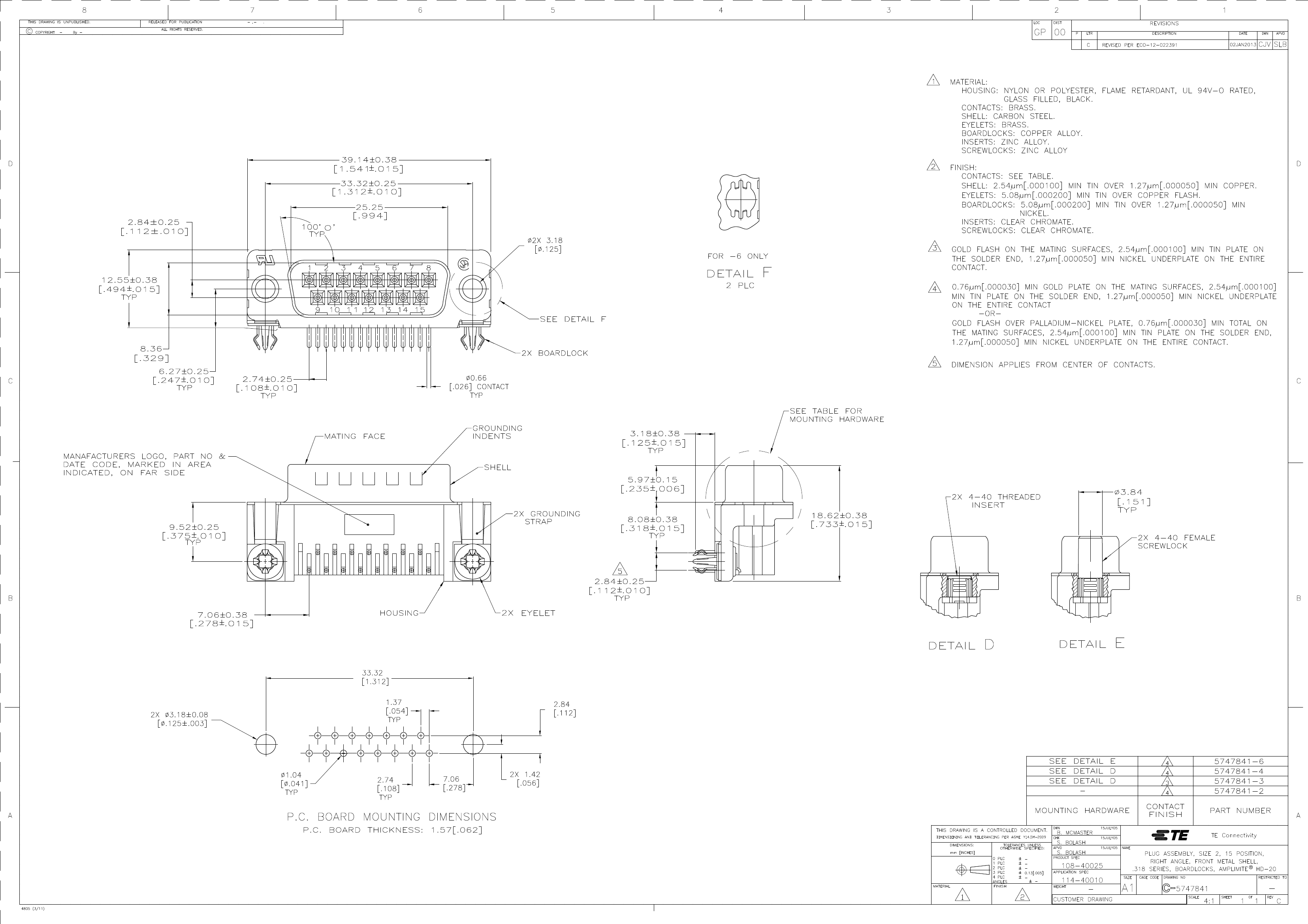

Catalog Drawings
AMP D-Sub Male .318
Featured Produc
AMPLIMITE D-Subminiature Connectors
3D Model
5747841-2.pdf
Standard Package	104
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tray
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layou	2 (DA, A)
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Flange Feature	Housing/Shell (Unthreaded)
Terminati	Solde
Features	Board Lock, Ground Strap, Grounding Indents
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	125V
Current Rating	6A
Housing Material	-
Col	Black
Dynamic Catalog	AMPLIMITE HD-20 Series
Mating Products	A32504-ND - CONN DSUB RCPT 15POS SLD CUPAFR15B-ND - CONN D-SUB RECEPT 15POS 30 GOLDA31977-ND - CONN D-SUB RECPT 15P 22-26AWG AUA31976-ND - CONN D-SUB RECPT 15P 26-30AWG AUA31932-ND - CONN D-SUB RCPT 15P 22-26AWG AU
Other Names	57478412A35126

	5747841-2	5747841-4
Description	conn D-sub plug R/A 15pos	conn D-sub plug R/A 15pos gold
Standard Package	104	104
Category	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors
Packaging	Tray	Tray
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Number of Positions	15	15
Number of Rows	2	2
Shell Size, Connector Layou	2 (DA, A)	2 (DA, A)
Contact Type	Signal	Signal
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (4-40)
Terminati	Solde	Solde
Features	Board Lock, Ground Strap, Grounding Indents	Board Lock, Ground Strap, Grounding Indents
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	125V	125V
Current Rating	6A	6A
Col	Black	Black
Dynamic Catalog	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series
Mating Products	A32504-ND - CONN DSUB RCPT 15POS SLD CUPAFR15B-ND - CONN D-SUB RECEPT 15POS 30 GOLDA31977-ND - CONN D-SUB RECPT 15P 22-26AWG AUA31976-ND - CONN D-SUB RECPT 15P 26-30AWG AUA31932-ND - CONN D-SUB RCPT 15P 22-26AWG AU	5-747909-7-ND - CONN D-SUB RCPT 15POS SOLDER CUPAFL15B-ND - CONN D-SUB RECEPT 15POS 30 GOLDA31977-ND - CONN D-SUB RECPT 15P 22-26AWG AUA31976-ND - CONN D-SUB RECPT 15P 26-30AWG AUA31932-ND - CONN D-SUB RCPT 15P 22-26AWG AU
Other Names	57478412A35126	57478414A32096
