5747150-4 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 5747150-4

Preview

5747150-4: Descriptionconn D-sub recpt str 9pos pcb AU; CategoryThe connector; File Size120KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5747150-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5747150-4	-	-	View	Buy Now

5747150-4 Overview

conn D-sub recpt str 9pos pcb AU

5747150-4 Parametric

Parameter Name	Attribute value
Datasheets
5747150
Product Photos
5747150-4
Product Training Modules
AMPLIMITE D-Sub Connectors
RoHS Informati
5747150-4 Statement of Compliance
RoHS 2 Stateme

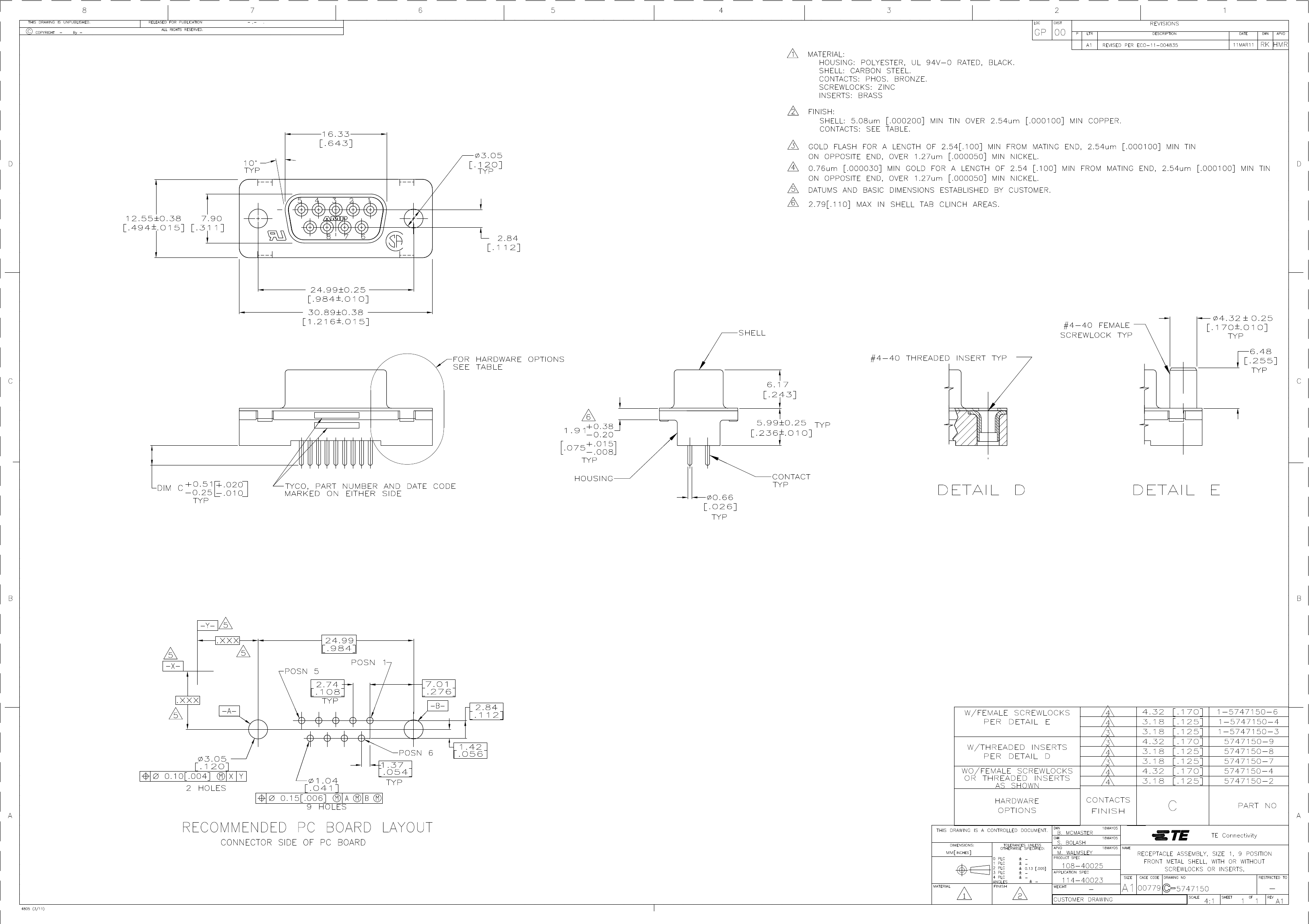

Catalog Drawings
HD-20 Front Metal Side
Featured Produc
AMPLIMITE D-Subminiature Connectors
3D Model
5747150-4.pdf
Standard Package	17
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tube
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layou	1 (DE, E)
Contact Type	Signal
Mounting Type	Through Hole
Flange Feature	Housing/Shell (Unthreaded)
Terminati	Solde
Features	-
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	125V
Current Rating	6A
Housing Material	Polyeste
Col	Black
Dynamic Catalog	AMPLIMITE HD-20 Series
Mating Products	A101880-ND - CONN D-SUB PLUG 9POS SLD CUP749808-8-ND - CONN D-SUB PLUG 9POS CRIMP5-747904-5-ND - CONN D-SUB PLUG 9POS SLD CUP AUA32507-ND - CONN D-SUB PLUG 9POS SLD CUP AUAMR09B-ND - CONN D-SUB PLUG 9POS GOLDA31966-ND - CONN D-SUB PLUG 9POS 20-22AWG AUA31965-ND - CONN D-SUB PLUG 9POS 26-30AWG AUA31930-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31929-ND - CONN D-SUB PLUG 9POS 22-26AWG AU
Other Names	57471504A34065

Preview

Download Datasheet

View All

5747150-4 Related Products

	5747150-4	1-5747150-3	1-5747150-6	5747150-9
Description	conn D-sub recpt str 9pos pcb AU	conn D-sub rcpt str 9pos pcb AU	conn D-sub rcpt str 9pos pcb AU	conn D-sub recpt str 9pos pcb AU
Standard Package	17	17	17	17
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Tube	Tube	Tube	Tube
Connector Style	D-Sub	D-Sub	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	9	9	9	9
Number of Rows	2	2	2	2
Shell Size, Connector Layou	1 (DE, E)	1 (DE, E)	1 (DE, E)	1 (DE, E)
Contact Type	Signal	Signal	Signal	Signal
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Flange Feature	Housing/Shell (Unthreaded)	Mating Side	Mating Side	Housing/Shell (4-40)
Terminati	Solde	Solde	Solde	Solde
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	Flash	30µin (0.76µm)	Flash
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	125V	125V	125V	125V
Current Rating	6A	6A	6A	6A
Housing Material	Polyeste	Polyeste	Polyeste	Polyeste
Col	Black	Black	Black	Black
Dynamic Catalog	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series
Mating Products	A101880-ND - CONN D-SUB PLUG 9POS SLD CUP749808-8-ND - CONN D-SUB PLUG 9POS CRIMP5-747904-5-ND - CONN D-SUB PLUG 9POS SLD CUP AUA32507-ND - CONN D-SUB PLUG 9POS SLD CUP AUAMR09B-ND - CONN D-SUB PLUG 9POS GOLDA31966-ND - CONN D-SUB PLUG 9POS 20-22AWG AUA31965-ND - CONN D-SUB PLUG 9POS 26-30AWG AUA31930-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31929-ND - CONN D-SUB PLUG 9POS 22-26AWG AU	AML09B-ND - CONN D-SUB PLUG 9POS GOLD	AML09B-ND - CONN D-SUB PLUG 9POS GOLD	A114024-ND - CONN D-SUB PLUG 9POS SLD CUP AUA106369-ND - CONN D-SUB PLUG KIT 9 POS GOLDAML09B-ND - CONN D-SUB PLUG 9POS GOLD
Other Names	57471504A34065	157471503A34090	157471506A34091	57471509A34074
