Part Number

Search

3-338315-2

Description
conn D-sub rcpt vert 25pos
CategoryThe connector
File Size124KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

3-338315-2 Online Shopping

Suppliers Part Number Price MOQ In stock
3-338315-2 - - View Buy Now

3-338315-2 Overview

conn D-sub rcpt vert 25pos

3-338315-2 Parametric

Parameter NameAttribute value
Datasheets

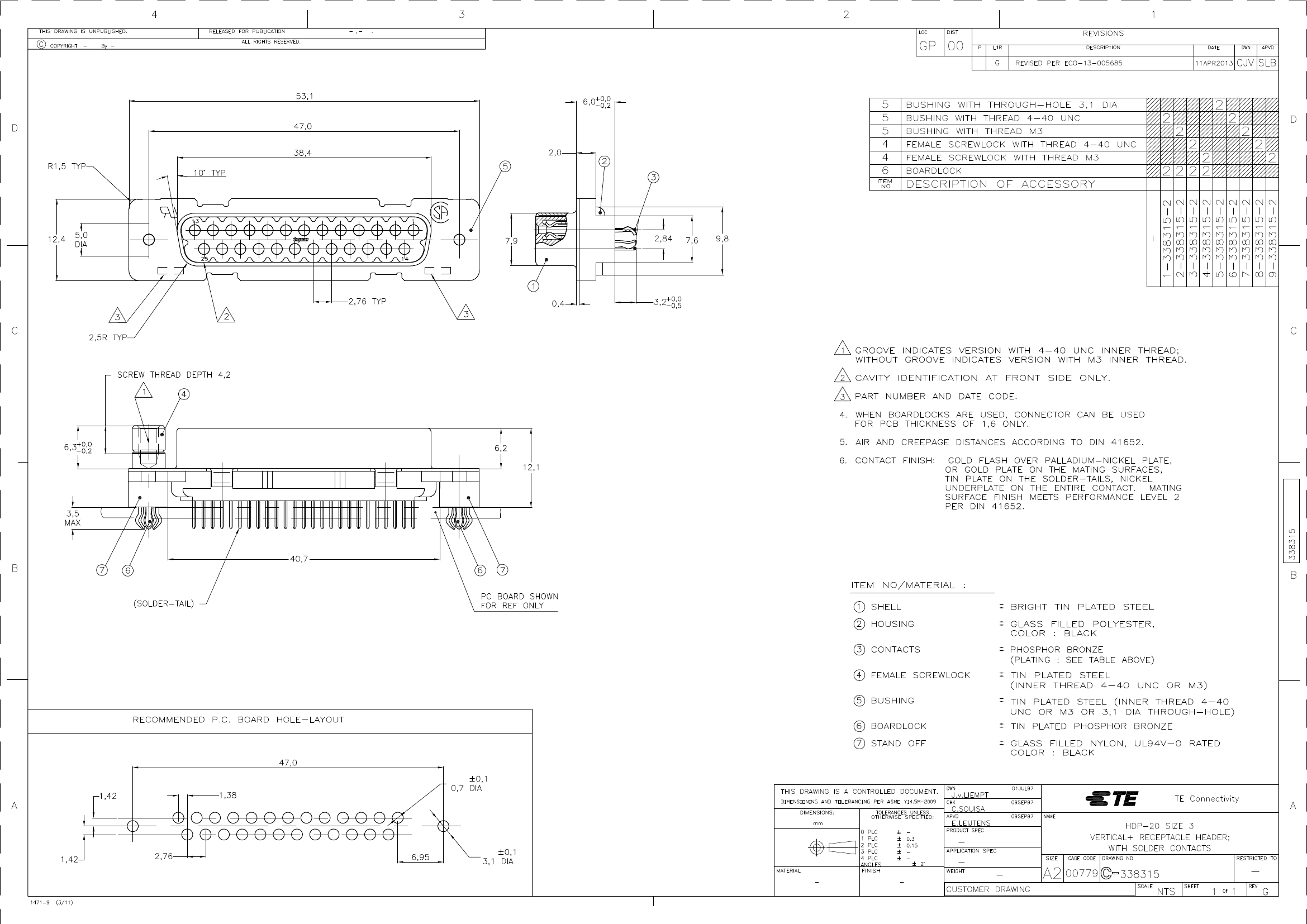

x-338315-x Drawing
Product Photos
3-338315-2
RoHS Informati
3-338315-2 Statement of Compliance
RoHS 2 Stateme
Catalog Drawings
HDP-20 Female Side
3D Model
3-338315-2.pdf
Standard Package30
CategoryConnectors, Interconnects
FamilyD-Sub Connectors
PackagingTray
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Number of Positions25
Number of Rows2
Shell Size, Connector Layou3 (DB, B)
Contact TypeSignal
Mounting TypeThrough Hole
Flange FeatureMating Side
Female Screwlock (4-40)
TerminatiSolde
FeaturesBoard Lock
Shell Material, FinishSteel, Tin Plated
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Ingress Protecti-
Operating Temperature-55°C ~ 105°C
Voltage Rating-
Current Rating6A
Housing MaterialPolyester, Glass Filled
ColBlack
Dynamic CatalogAMPLIMITE HDP-20 Series
Mating ProductsAML25B-ND - CONN D-SUB PLUG 25POS GOLD
Other Names33383152A35174

3-338315-2 Related Products

3-338315-2 1-338315-2
Description conn D-sub rcpt vert 25pos conn D-sub rcpt vert 25pos
Standard Package 30 30
Category Connectors, Interconnects Connectors, Interconnects
Family D-Sub Connectors D-Sub Connectors
Packaging Tray Tray
Connector Style D-Sub D-Sub
Connector Type Receptacle, Female Sockets Receptacle, Female Sockets
Number of Positions 25 25
Number of Rows 2 2
Shell Size, Connector Layou 3 (DB, B) 3 (DB, B)
Contact Type Signal Signal
Mounting Type Through Hole Through Hole
Flange Feature Mating Side Housing/Shell (4-40)
Terminati Solde Solde
Features Board Lock Board Lock
Shell Material, Finish Steel, Tin Plated Steel, Tin Plated
Contact Finish Gold Gold
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C
Current Rating 6A 6A
Housing Material Polyester, Glass Filled Polyester, Glass Filled
Col Black Black
Dynamic Catalog AMPLIMITE HDP-20 Series AMPLIMITE HDP-20 Series
Mating Products AML25B-ND - CONN D-SUB PLUG 25POS GOLD 749810-9-ND - CONN D-SUB PLUG 25POS IDC METALAML25B-ND - CONN D-SUB PLUG 25POS GOLD
Other Names 33383152A35174 13383152A35168
