5747236-6

Description
conn D-sub plug R/A 15pos
CategoryThe connector
File Size159KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

5747236-6 Online Shopping

Suppliers Part Number Price MOQ In stock
5747236-6 - - View Buy Now

5747236-6 Overview

conn D-sub plug R/A 15pos

5747236-6 Parametric

Parameter NameAttribute value
Datasheets
5747236-6
Product Photos
5747236-6
RoHS Informati
5747236-6 Statement of Compliance
RoHS 2 Stateme

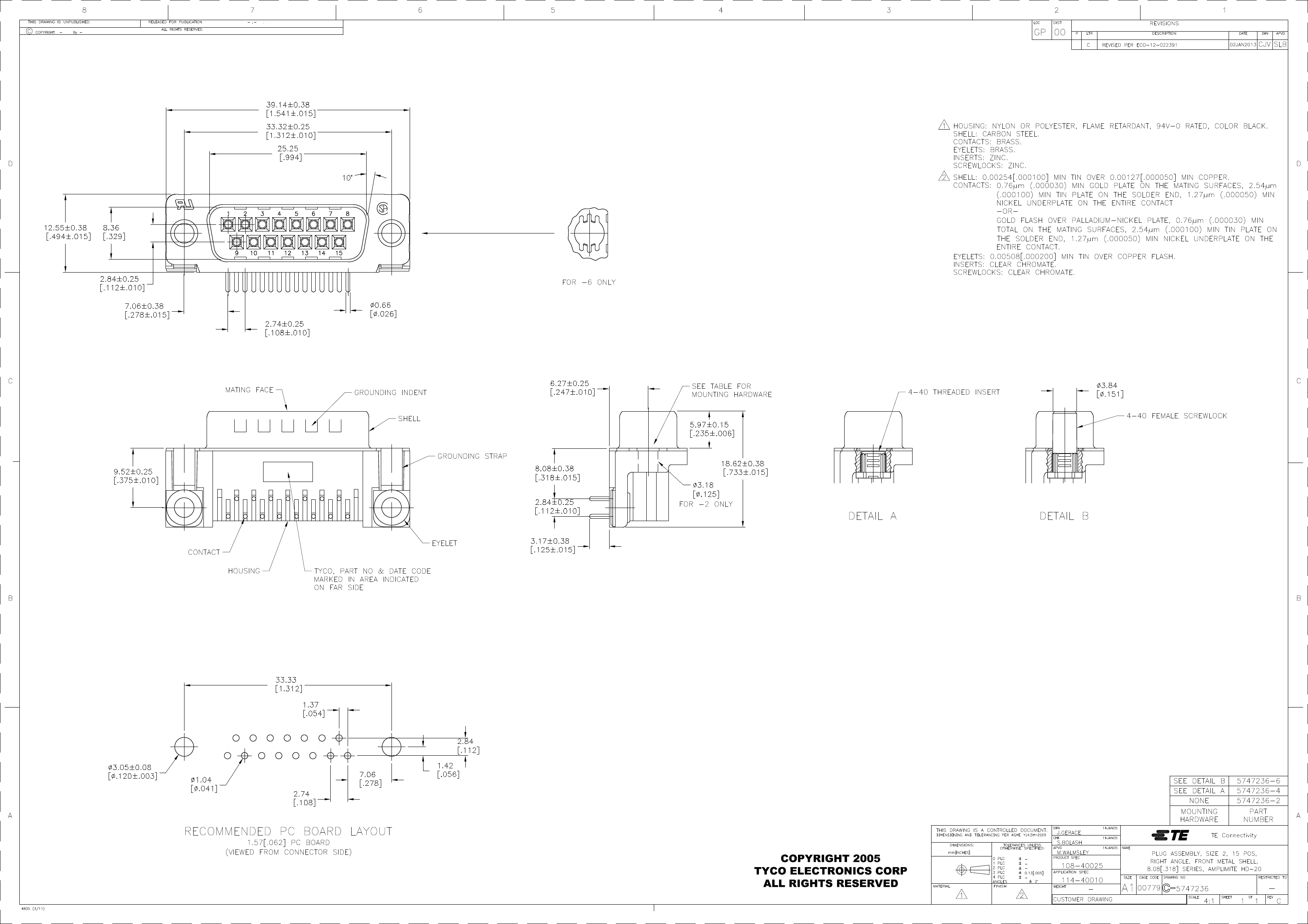

Catalog Drawings
AMP D-Sub Male .318
3D Model
5747236-6.pdf
Standard Package104
CategoryConnectors, Interconnects
FamilyD-Sub Connectors
PackagingTray
Connector StyleD-Sub
Connector TypePlug, Male Pins
Number of Positions15
Number of Rows2
Shell Size, Connector Layou2 (DA, A)
Contact TypeSignal
Mounting TypeThrough Hole, Right Angle
Flange FeatureMating Side
Female Screwlock (4-40)
TerminatiSolde
FeaturesGround Strap, Grounding Indents
Shell Material, FinishSteel, Tin Plated
Contact FinishGold
Contact Finish ThicknessFlash
Ingress Protecti-
Operating Temperature-55°C ~ 105°C
Voltage Rating125V
Current Rating6A
Housing Material-
ColBlack
Dynamic CatalogAMPLIMITE HD-20 Series
Mating ProductsAFL15B-ND - CONN D-SUB RECEPT 15POS 30 GOLD
Other Names57472366A35122

5747236-6 Related Products

5747236-6
Description conn D-sub plug R/A 15pos
Standard Package 104
Category Connectors, Interconnects
Family D-Sub Connectors
Packaging Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Shell Size, Connector Layou 2 (DA, A)
Contact Type Signal
Mounting Type Through Hole, Right Angle
Flange Feature Mating Side
Terminati Solde
Features Ground Strap, Grounding Indents
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Operating Temperature -55°C ~ 105°C
Voltage Rating 125V
Current Rating 6A
Col Black
Dynamic Catalog AMPLIMITE HD-20 Series
Mating Products AFL15B-ND - CONN D-SUB RECEPT 15POS 30 GOLD
Other Names 57472366A35122
