TCO-3131-60.00MHZ

Description
IC,CRYSTAL OSCILLATOR,1-CHANNEL,60MHZ-700MHZ,DIP,6PIN,PLASTIC
CategoryPassive components    oscillator
File Size235KB,2 Pages
ManufacturerSeiko Epson Corporation
Download Datasheet Parametric Compare View All

TCO-3131-60.00MHZ Overview

IC,CRYSTAL OSCILLATOR,1-CHANNEL,60MHZ-700MHZ,DIP,6PIN,PLASTIC

TCO-3131-60.00MHZ Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionSMDIP6,.4
Reach Compliance Codecompli
JESD-609 codee0
Installation featuresSURFACE MOUNT
Number of terminals6
Maximum operating frequency700 MHz
Minimum operating frequency60 MHz
Nominal operating frequency60 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Encapsulate equivalent codeSMDIP6,.4
power supply3.3 V
Certification statusNot Qualified
Maximum slew rate75 mA
Nominal supply voltage3.3 V
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Base Number Matches1

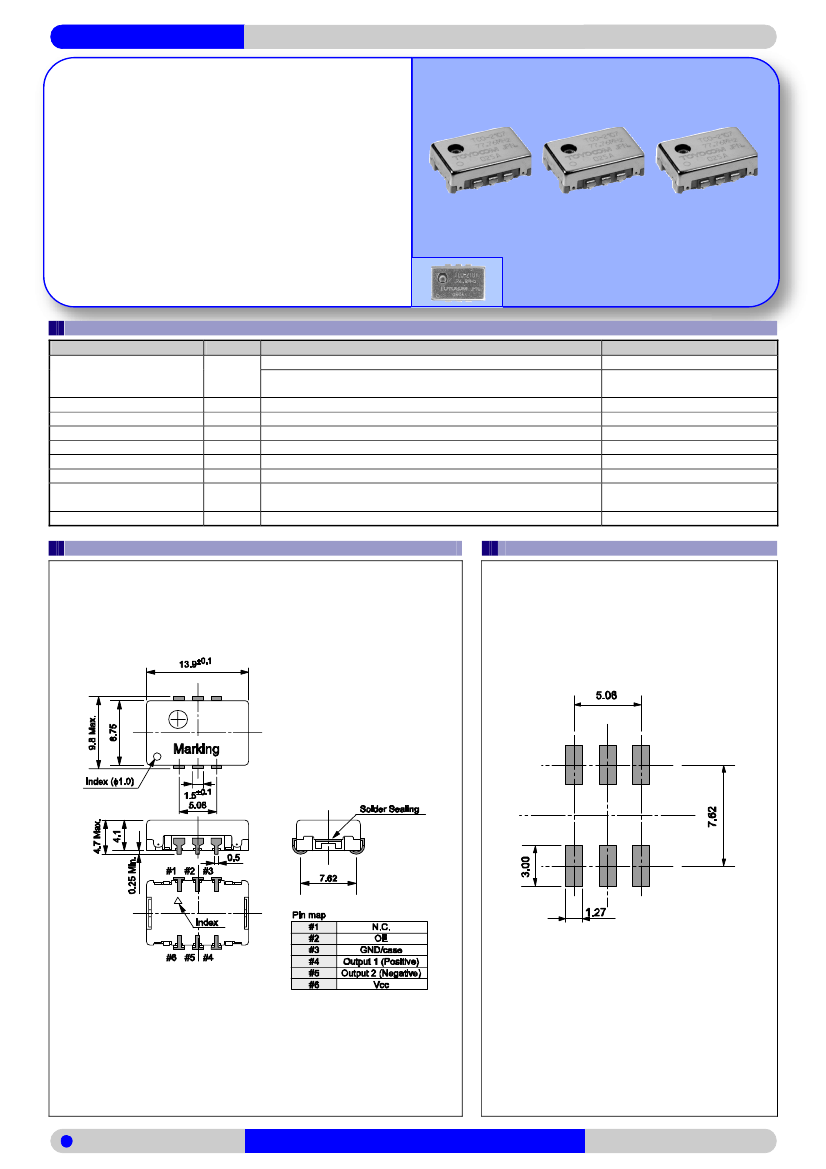

Crystal oscillator
CRYSTAL OSCILLATOR
HIGH-STABILITY
TCO-3131
Frequency range
Supply voltage
Frequency stability
Features
Function
Lead(Pb)-free
:
:
:
:
:
:
60 MHz to 700 MHz
3.3 V
-6
±30 ×
10
/ -40 to +85
°C
With HFF-XTAL technology
Fundamental oscillation (60MHz to 230MHz)
Multiplier oscillation (230MHz to 700MHz) Actual size
Output enable(OE)
Contains Pb in this product exempted by
RoHS directive.
Specifications (characteristics)
Item
Output frequency range
Symbol
f
0
Specifications
60.000 MHz to 700.000 MHz
77.760 MHz, 155.520 MHz, 156.250 MHz,
166.6286 MHz, 622.080 MHz, 666.5143 MHz,
3.3 V
±0.165
V
-40 °C to +85 °C
-40 °C to +85 °C
±35 ×
10
-6
Max.
75 mA Max.
LV-PECL
10 ms Max.
±5 ×
10
-6
/ year Max.
(Unit:mm)
Remarks
Standard frequency
Supply voltage
V
CC
Storage temperature range
T_stg
Operating temperature range
T_use
Frequency tolerance
F_tol(osc)
Current consumption
I
CC
Output load condition
-
Oscillation start up time
Frequency aging
-40 °C to +85 °C
t
OSC
F_aging
Time at minimum supply
voltage to be 0 s.
+25 °C, First year
External dimensions
Footprint (Recommended)
(Unit:mm)
62
http://www.epsontoyocom.co.jp
