5747190-2 datasheet, PDF - EEWORLD Datasheet

5747190-2: Descriptionconn D-sub recpt str 9pos pcb AU; CategoryThe connector; File Size114KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5747190-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5747190-2	-	-	View	Buy Now

conn D-sub recpt str 9pos pcb AU

Parameter Name	Attribute value
Datasheets

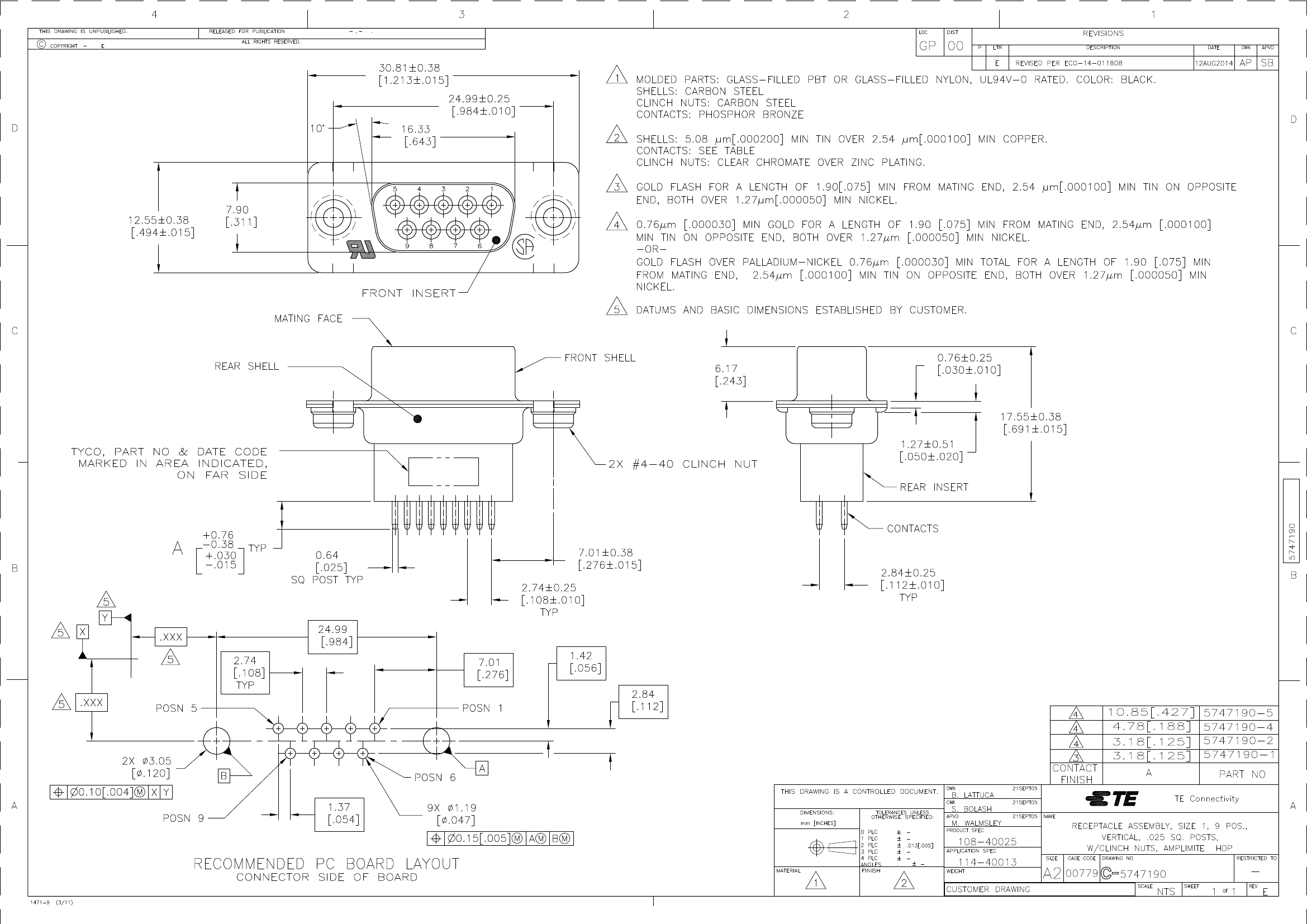

5747190 Drawing
Product Photos
5747190-2
Product Training Modules
AMPLIMITE D-Sub Connectors
RoHS Informati
5747190-2 Statement of Compliance
RoHS 2 Stateme
Catalog Drawings
HD-20 Full Metal Side
3D Model
5747190-2.pdf
Standard Package	17
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tube
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layou	1 (DE, E)
Contact Type	Signal
Mounting Type	Through Hole
Flange Feature	Board Side (4-40)
Terminati	Solde
Features	-
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	125V
Current Rating	6A
Housing Material	-
Col	Black
Dynamic Catalog	AMPLIMITE HD-20 Series
Mating Products	AML09B-ND - CONN D-SUB PLUG 9POS GOLDA31929-ND - CONN D-SUB PLUG 9POS 22-26AWG AU
Other Names	57471902A34056

	5747190-2
Description	conn D-sub recpt str 9pos pcb AU
Standard Package	17
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tube
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layou	1 (DE, E)
Contact Type	Signal
Mounting Type	Through Hole
Flange Feature	Board Side (4-40)
Terminati	Solde
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Operating Temperature	-55°C ~ 105°C
Voltage Rating	125V
Current Rating	6A
Col	Black
Dynamic Catalog	AMPLIMITE HD-20 Series
Mating Products	AML09B-ND - CONN D-SUB PLUG 9POS GOLDA31929-ND - CONN D-SUB PLUG 9POS 22-26AWG AU
Other Names	57471902A34056
