5786554-5: Descriptionconn recept 50pos vert .050 gold; CategoryThe connector; File Size189KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5786554-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5786554-5	-	-	View	Buy Now

5786554-5 Overview

conn recept 50pos vert .050 gold

5786554-5 Parametric

Parameter Name	Attribute value
Datasheets
5786554
Product Photos
5786554-5
Product Training Modules
AMPLIMITE D-Sub Connectors
RoHS Informati
5786554-5 Statement of Compliance
RoHS 2 Stateme
Catalog Drawings

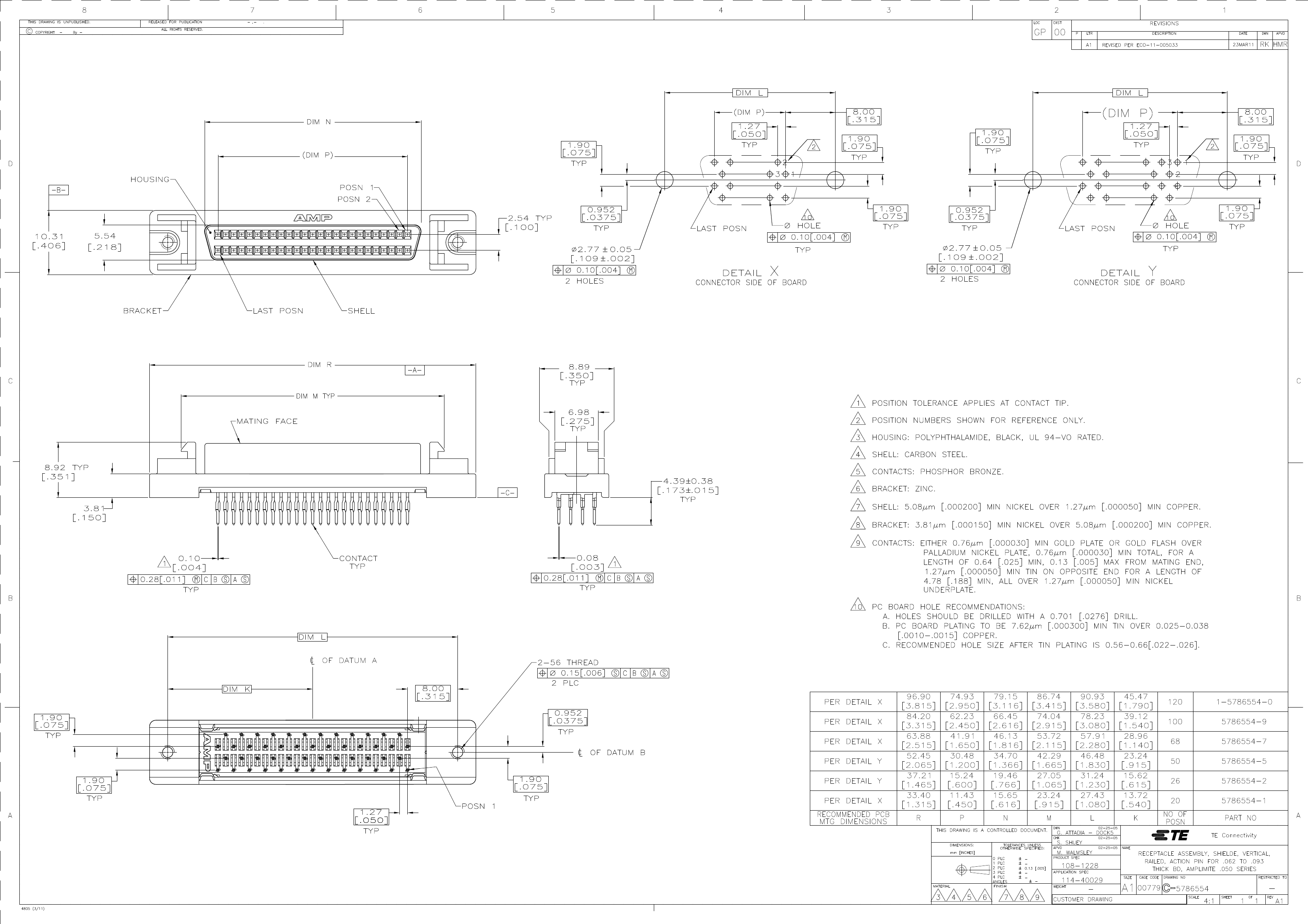

Vertical Receptacle with Rails and Latch Blocks
Featured Produc
AMPLIMITE D-Subminiature Connectors
3D Model
5786554-5.pdf
Standard Package	10
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tube
Connector Style	D-Type
Connector Type	Receptacle, Female Sockets
Number of Positions	50
Number of Rows	2
Shell Size, Connector Layou	0.050 Pitch x 0.100 Row to Row
Contact Type	Signal
Mounting Type	Through Hole
Flange Feature	Housing/Shell (2-56)
Latchblocks, Rails
Terminati	Press-Fi
Features	Shielded
Shell Material, Finish	Steel, Nickel Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	30V
Current Rating	1A
Housing Material	Polyphthalamide (PPA)
Col	Black
Dynamic Catalog	AMPLIMITE .050 III Series
Mating Products	A33483-ND - CONN 50POS .050 CHAMPPLUG SCHCVRA33480-ND - 50 50SR CABLE CONN KITA31794-ND - CONN PLUG 50POS .050 IDC W/COVA31785-ND - CONN PLUG 50POS .050SR 3PC GRAY
Other Names	57865545A31827

Preview

Download Datasheet

View All

5786554-5 Related Products

	5786554-5	5786554-1	1-5786554-0
Description	conn recept 50pos vert .050 gold	20 50sr vrt rcpt,L,R,act pin	conn rcpt 120pos vert .050
Standard Package	10	1,008	315
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Tube	Tube	Tube
Connector Style	D-Type	D-Type	D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	50	20	120
Number of Rows	2	2	2
Shell Size, Connector Layou	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row
Contact Type	Signal	Signal	Signal
Mounting Type	Through Hole	Through Hole	Through Hole
Flange Feature	Housing/Shell (2-56)	Housing/Shell (2-56)	Housing/Shell (2-56)
Terminati	Press-Fi	Press-Fi	Press-Fi
Features	Shielded	Shielded	Shielded
Shell Material, Finish	Steel, Nickel Plated	Steel, Nickel Plated	Steel, Nickel Plated
Contact Finish	Gold	Gold	Gold
Contact Finish Thickness	Flash	Flash	Flash
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	30V	30V	30V
Current Rating	1A	1A	1A
Housing Material	Polyphthalamide (PPA)	Polyphthalamide (PPA)	Polyphthalamide (PPA)
Col	Black	Black	Black
Mating Products	A33483-ND - CONN 50POS .050 CHAMPPLUG SCHCVRA33480-ND - 50 50SR CABLE CONN KITA31794-ND - CONN PLUG 50POS .050 IDC W/COVA31785-ND - CONN PLUG 50POS .050SR 3PC GRAY	5749621-1-ND - CONN PLUG 20POS .050 IDC W/COVA31788-ND - CONN PLUG 20POS .050SR W/COVER	1-5749621-0-ND - CONN PLUG 120POS .050 IDC W/COVA35099-ND - CONN PLUG 120POS .050 W/COVER
Other Names	57865545A31827	A33524	-
