3-1740197-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-1740197-2

3-1740197-2: Description15p hd20 pin hdr eurost.smt stud; CategoryThe connector; File Size821KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

3-1740197-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1740197-2	-	-	View	Buy Now

3-1740197-2 Overview

15p hd20 pin hdr eurost.smt stud

3-1740197-2 Parametric

Parameter Name	Attribute value
Datasheets
1740197 Drawing
AMPLIMITE HD-20 Brochure
Product Photos
3-1740197-2
RoHS Informati
RoHS 2 Stateme
3-1740197-2 Statement of Compliance
3D Model
3-1740197-2.pdf
Standard Package	4,500
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tape & Reel (TR)
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layou	2 (DA, A)
Contact Type	Signal
Mounting Type	Surface Mount, Right Angle
Flange Feature	Mating Side
Female Screwlock (4-40)
Terminati	Solde
Features	Board Guide, Grounding Indents
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	31.5µin (0.80µm)
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	-
Current Rating	-
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Col	-
Other Names	A118137TR

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

VERTRAULICHE UNVEROEFFENTLICHTE ZEICHNUNG

2004

BY -

RELEASED FOR PUBLICATION

FREI FUER VEROEFFENTLICHUNG

DEC

2004

MATED WITH:

PASSEND ZU:

REVISIONS

PROJEKT NR.:

LTR

AENDERUNGEN

DESCRIPTION

DATE

DWN

APVD

EGGMN03028

REVISED PER ECO-13-012712

BESCHREIBUNG

10SEP2013

CJV

SLB

24.9 # 0.15

ALL CONTACTS

ALLE KONTAKTE

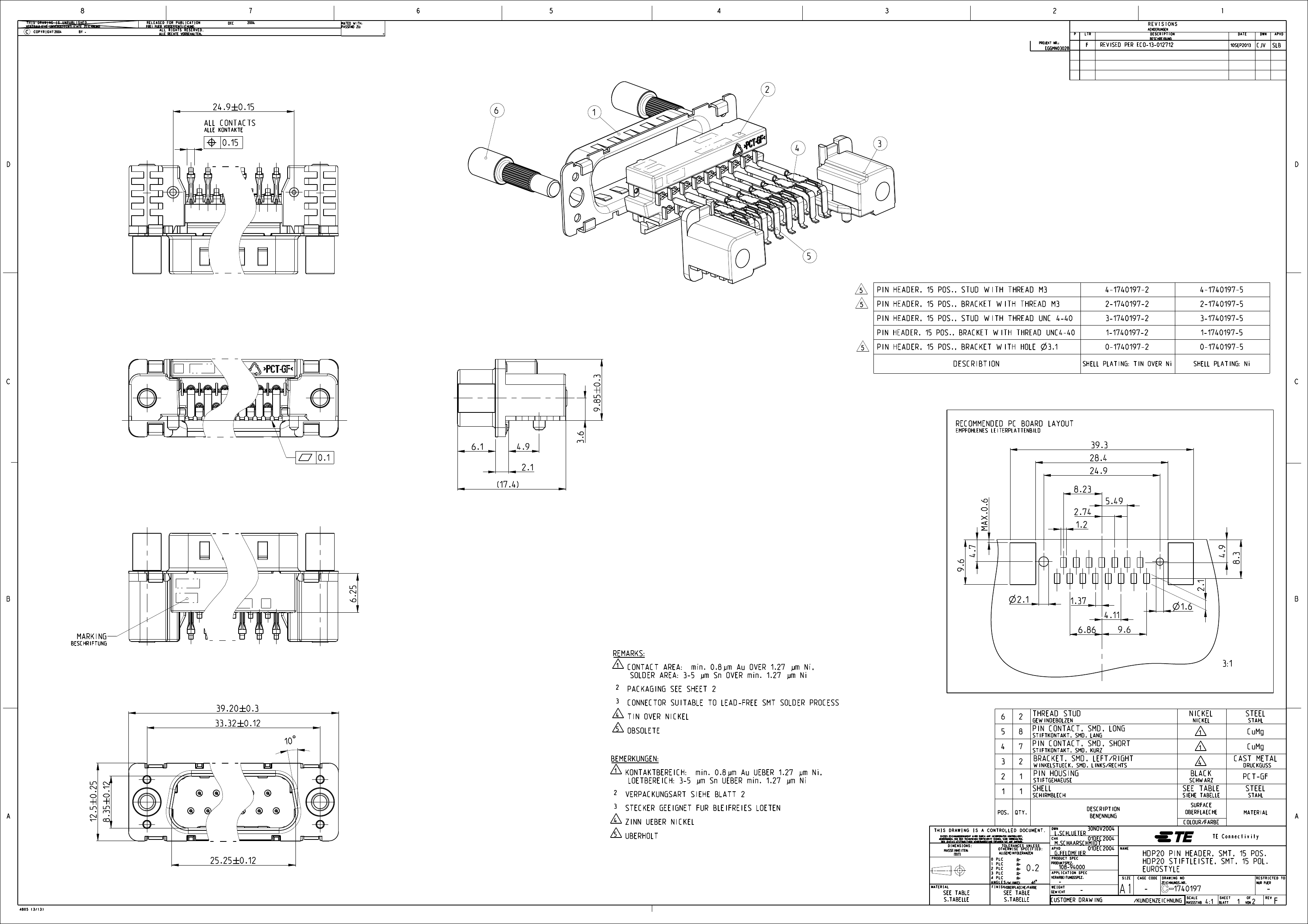

PIN HEADER, 15 POS., STUD WITH THREAD M3

PIN HEADER, 15 POS., BRACKET WITH THREAD M3

PIN HEADER, 15 POS., STUD WITH THREAD UNC 4-40

PIN HEADER, 15 POS., BRACKET WITH THREAD UNC4-40

4-1740197-2

2-1740197-2

3-1740197-2

1-1740197-2

0-1740197-2

SHELL PLATING: TIN OVER Ni

4-1740197-5

2-1740197-5

3-1740197-5

1-1740197-5

0-1740197-5

SHELL PLATING: Ni

PIN HEADER, 15 POS., BRACKET WITH HOLE

DESCRIBTION

n 3.1

9.85

3.6

RECOMMENDED PC BOARD LAYOUT

EMPFOHLENES LEITERPLATTENBILD

6.1

4.9

2.1

(

17.4

)

28.4

24.9

MAX.0.6

8.23

2.74

1.2

39.3

5.49

9.6

4.7

4.9

2.1

6.25

8.3

1.37

4.11

6.86

9.6

1.6

BESCHRIFTUNG

MARKING

REMARKS:

CONTACT AREA: min. 0.8µm Au OVER 1.27 µm Ni,

SOLDER AREA: 3-5 µm Sn OVER min. 1.27 µm Ni

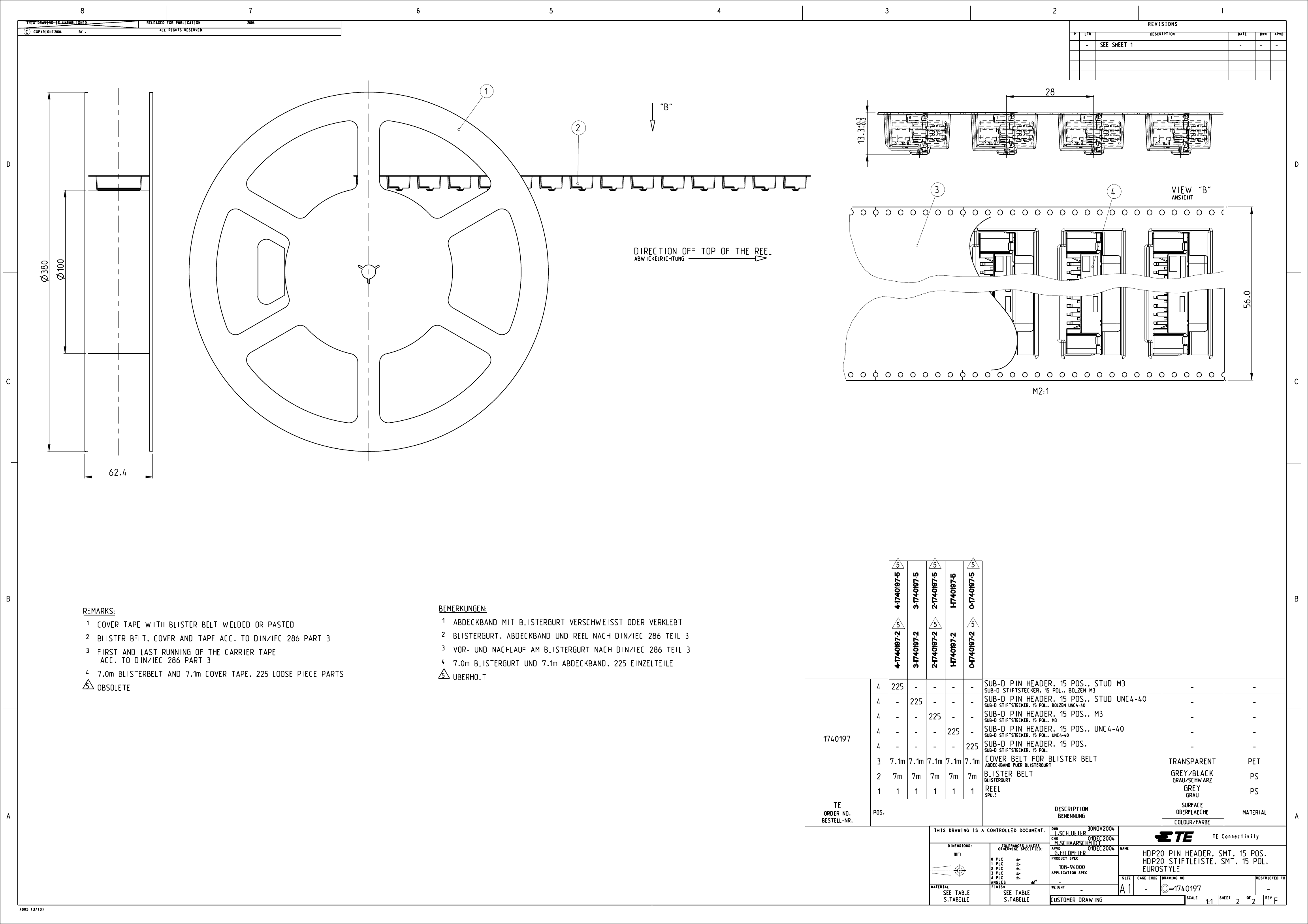

PACKAGING SEE SHEET 2

CONNECTOR SUITABLE TO LEAD-FREE SMT SOLDER PROCESS

TIN OVER NICKEL

OBSOLETE

THREAD STUD

PIN CONTACT, SMD, LONG

NICKEL

3:1

39.20 # 0.3

33.32 # 0.12

10 $

GEWINDEBOLZEN

STEEL

STAHL

PIN CONTACT, SMD, SHORT

STIFTKONTAKT, SMD, KURZ

WINKELSTUECK, SMD, LINKS/RECHTS

STIFTGEHAEUSE

SCHIRMBLECH

DESCRIPTION

BENENNUNG

DWN

CHK

STIFTKONTAKT, SMD, LANG

CuMg

CAST METAL

DRUCKGUSS

BEMERKUNGEN:

KONTAKTBEREICH: min. 0.8µm Au UEBER 1.27 µm Ni,

LOETBEREICH: 3-5 µm Sn UEBER min. 1.27 µm Ni

VERPACKUNGSART SIEHE BLATT 2

STECKER GEEIGNET FUR BLEIFREIES LOETEN

ZINN UEBER NICKEL

UBERHOLT

BRACKET, SMD, LEFT/RIGHT

CuMg

PIN HOUSING

SHELL

BLACK

SIEHE TABELLE

SURFACE

OBERFLAECHE

COLOUR/FARBE

SEE TABLE

SCHWARZ

PCT-GF

STEEL

STAHL

8.35

12.5

POS. QTY.

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIESES ZEICHNUNGSDOKUMENT WIRD DURCH AMP INCORPORATED KONTROLLIERT.

AENDERUNGEN, DIE DEM TECHNISCHEN FORTSCHRITT DIENEN, SIND VORBEHALTEN.

DEN JEWEILS LETZTGUELTIGEN AENDERUNGSSTAND ERFAHREN SIE AUF ANFRAGE.

MATERIAL

MASSEINHEITEN:

DIMENSIONS:

25.25 # 0.12

MATERIAL

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

ALLGEMEINTOLERANZEN

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES /WINKEL

01DEC2004

M.SCHAARSCHMIDT

APVD

01DEC2004

G.FELDMEIER

PRODUCT SPEC

PRODUKTSPEZ.

APPLICATION SPEC

L.SCHLUETER

30NOV2004

NAME

TE Connectivity

0.2

1 $

108-94000

VERARBEITUNGSSPEZ.

WEIGHT

SEE TABLE

S.TABELLE

FINISH /OBERFLAECHE/FARBE

SEE TABLE

S.TABELLE

GEWICHT

CUSTOMER DRAWING

SIZE

CAGE CODE

HDP20 PIN HEADER, SMT, 15 POS.

HDP20 STIFTLEISTE, SMT, 15 POL.

EUROSTYLE

DRAWING NO

ZEICHNUNGS-NR.

RESTRICTED TO

NUR FUER

1740197

SCALE

MASSSTAB

/KUNDENZEICHNUNG

4805 (3/13)

4:1

SHEET

BLATT

VON

REV
