3-1634224-2 datasheet, PDF - EEWORLD Datasheet

3-1634224-2: Descriptionconn D-sub rcpt 25pos vert gold; CategoryThe connector; File Size246KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1634224-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1634224-2	-	-	View	Buy Now

conn D-sub rcpt 25pos vert gold

Parameter Name	Attribute value
Datasheets

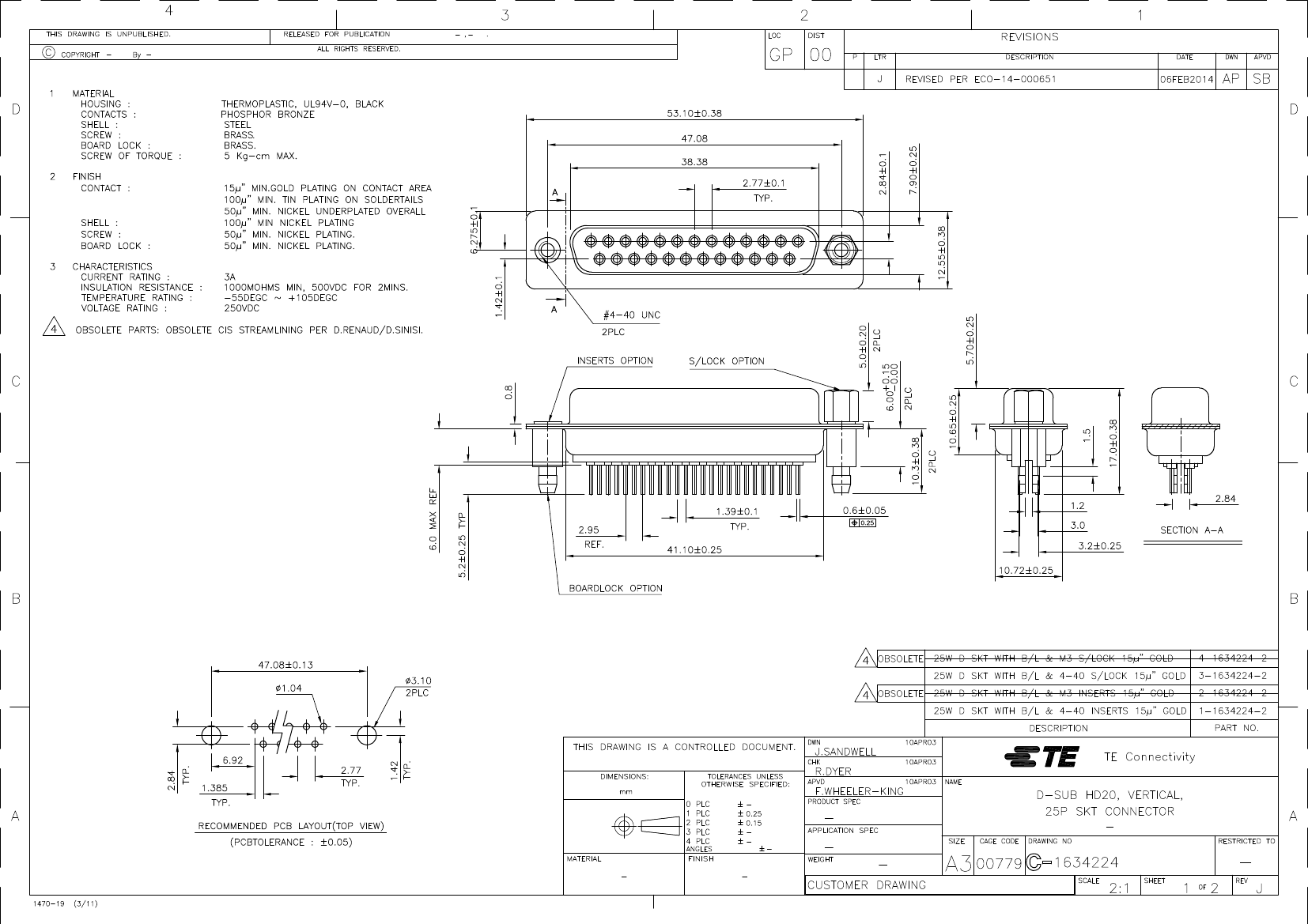

1634224 Drawing
Product Photos
3-1634224-2
RoHS Informati
3-1634224-2 Statement of Compliance
RoHS 2 Stateme
Standard Package	500
Category	Connectors, Interconnects
Family	D-Sub Connectors

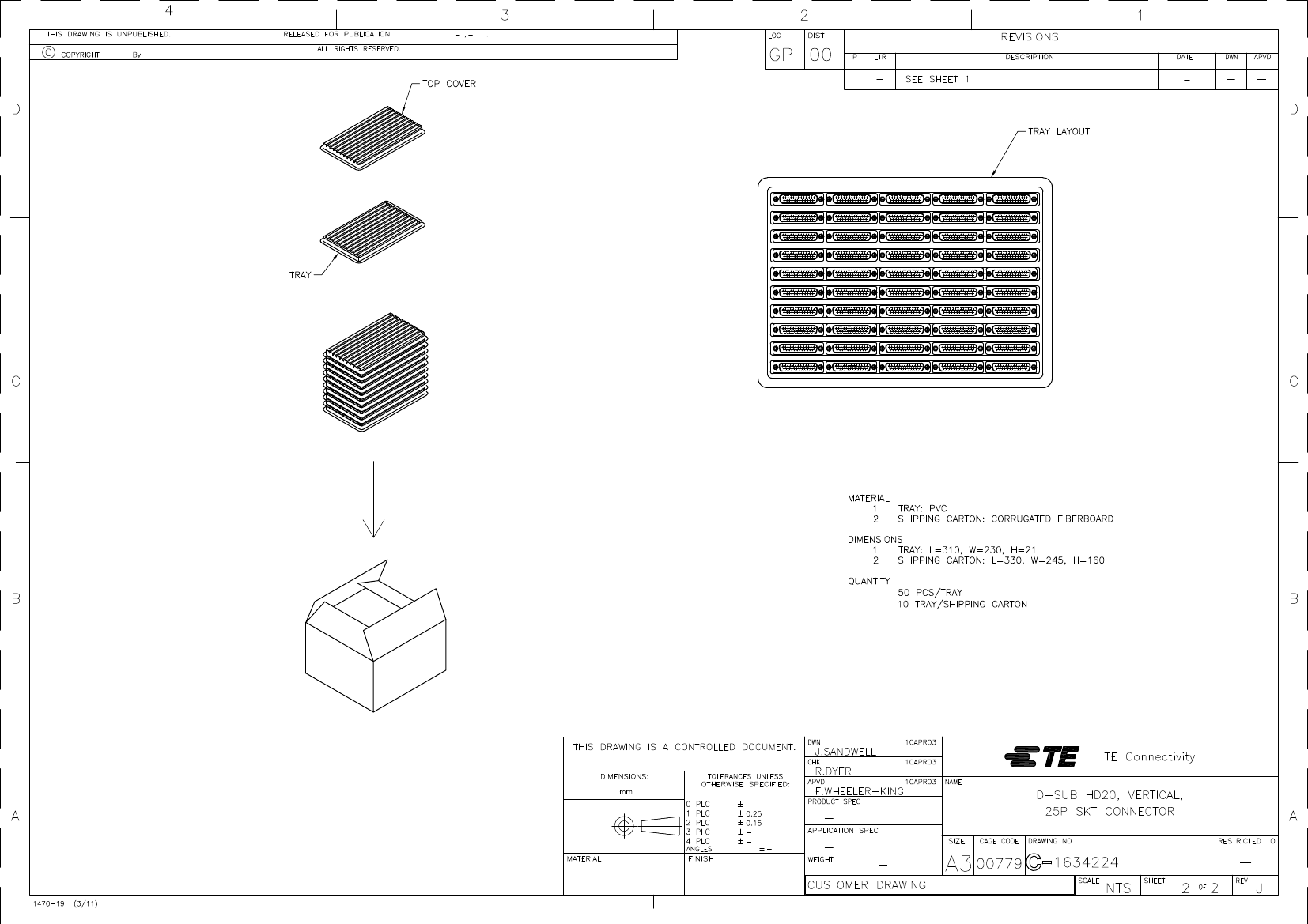

Packaging	Tray
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	25
Number of Rows	2
Shell Size, Connector Layou	3 (DB, B)
Contact Type	Signal
Mounting Type	Through Hole
Flange Feature	Mating Side
Female Screwlock (4-40)
Terminati	Solde
Features	Board Lock
Shell Material, Finish	Steel, Nickel Plated
Contact Finish	Gold
Contact Finish Thickness	15µin (0.38µm)
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	250V
Current Rating	3A
Housing Material	Thermoplastic
Col	Black
Mating Products	AML25B-ND - CONN D-SUB PLUG 25POS GOLD

	3-1634224-2	1-1634224-2
Description	conn D-sub rcpt 25pos vert gold	conn D-sub rcpt 25pos vert gold
Standard Package	500	1,000
Category	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors
Packaging	Tray	Tray
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	25	25
Number of Rows	2	2
Shell Size, Connector Layou	3 (DB, B)	3 (DB, B)
Contact Type	Signal	Signal
Mounting Type	Through Hole	Through Hole
Flange Feature	Mating Side	Housing/Shell (4-40)
Terminati	Solde	Solde
Features	Board Lock	Board Lock
Shell Material, Finish	Steel, Nickel Plated	Steel, Nickel Plated
Contact Finish	Gold	Gold
Contact Finish Thickness	15µin (0.38µm)	15µin (0.38µm)
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	250V	250V
Current Rating	3A	3A
Housing Material	Thermoplastic	Thermoplastic
Col	Black	Black
Mating Products	AML25B-ND - CONN D-SUB PLUG 25POS GOLD	749810-9-ND - CONN D-SUB PLUG 25POS IDC METALAML25B-ND - CONN D-SUB PLUG 25POS GOLD
