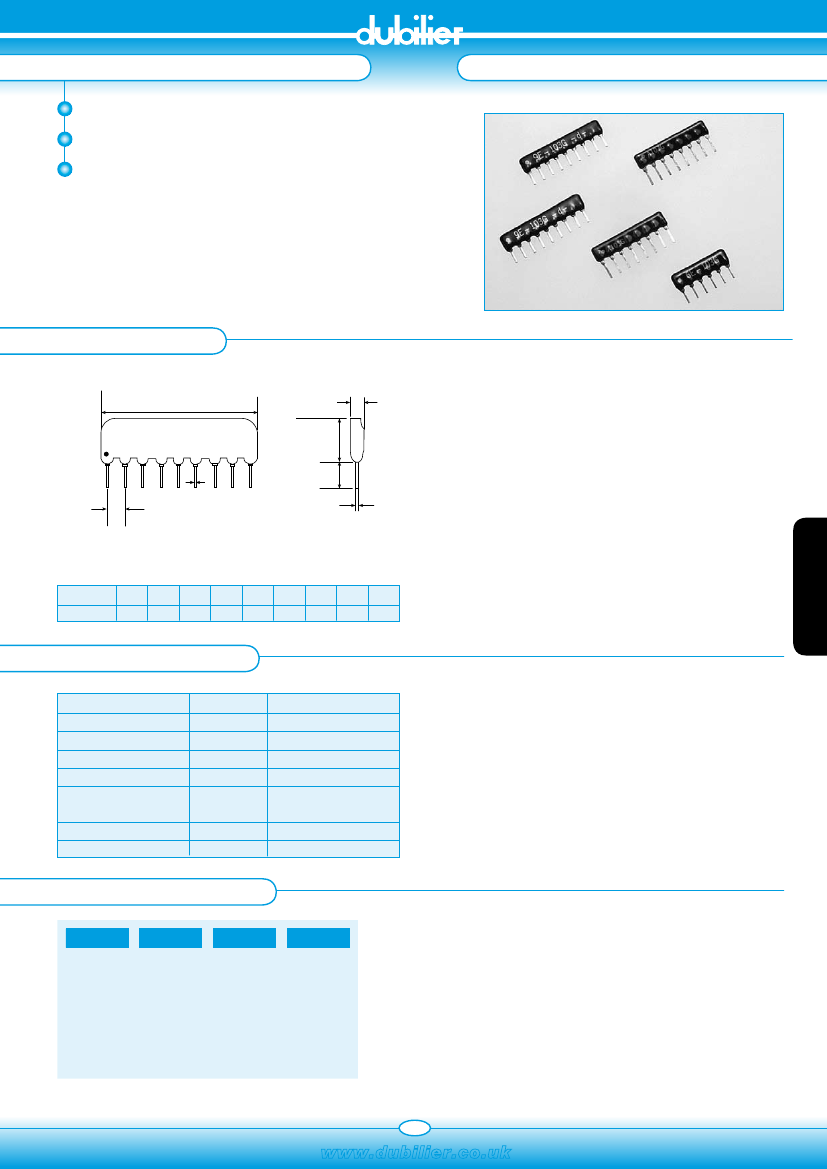

RESISTORS
Low-profile
Epoxy dipped
5 to 13-pin
The Dubilier range of SIL networks features 2% accuracy in a low-
cost package.
The low-profile epoxy package allows the device to be used in
locations where moulded parts do not fit.
Isolated and common-terminal designs are available, allowing the
simple, reliable insertion of up to 12 resistors at once.
RESISTOR NETWORK SIL
OUTLINE DRAWING
2.5 max
L max
PIN 1
Marking
9E-103G
5.2 max
3.0
±
0.5
0.5
±
0.1
3.0
±
0.1
No of Pins
L max
5
12.7
6
15.3
7
17.8
8
20.4
9
22.9
10
25.4
11
28.0
12
30.5
13
33.1
RANGE & TOLERANCES
Parameter
Power Rating per Element
Temperature Range
Resistance Range
Resistance Tolerance
Temperature Coefficient
Max Working Voltage
Max Overload Voltage
Performance
0.125W
-55˚ to +125°C
33Ω to 1MΩ
± 2% (G)
± 100 ppm/°C
± 250ppm/˚C
100V
200V
Limits
@ 70°C
Derating linearly from 70°C
E - 24 series
50Ω ≥ 2.2MΩ
<50Ω – 2.2MΩ
ORDERING INFORMATION
9
N° Pins
5 to 13
E
Type
M = Isolated
E = Common
103
Value
3 digit code :
Last digit is
decade multiplier.
First two digits are
first digits of value.
G
Tolerance
2%
135
www.dubilier.co.uk
SECTION 4
2.54
±
0.25
RESISTORS
SPECIFICATION
Short Term Overload
Vibration
RESISTOR NETWORK SIL
Dielectric Strength
Solderability
∆R/R ± (1% + 0.05Ω)
After application of 21/2 x rated voltage, or the maximum overload voltage, whichever smaller, for a period of 5
secs. Resistance change to be within specification, with no evidence of arcing, burning or charring.
∆R/R ± (0.5% + 0.5Ω)
Resistors are to be subjected to vibration of amplitude 0.8mm for 2 hours in each of three mutually
perpendicular directions. The vibration frequency shall be swept from 10 to 55 to 10Hz in 1 minute.
Resistance change to be within specification with no evidence of damage.
Components shall withstand twice their rated voltage for 1 minute applied between termination and substrate. No
evidence of arcing, burning or charring.
∆R/R ± (1% + 0.05Ω)
After dipping at 260°C ± 5°C for 10 seconds, resistance change to be within specification, with no evidence of
arcing, burning or charring. Terminations shall maintain a minimum of 75% coverage following the procedures of
MIL-STD-202E.
∆R/R ± (2% + 0.05Ω)
After 1000 hours application of the rated voltage with a duty cycle of 11/2 hours ON and 1/2 hour OFF, at
70°C. Resistance change to be within specification, with no evidence of arcing, burning or charring.
∆R/R ± (2% + 0.05Ω)
After 1000 hours application of the rated voltage with a duty cycle of 11/2 hours ON and 1/2 hour OFF, at
40°C and 90-95% RH. Resistance change to be within specification, with no evidence of arcing, burning
or charring.
∆R/R < 100ppm/V
Product is conformally coated with epoxy resin conforming to UL94V-0.
Load Life
Moisture Load
Voltage Coefficient
Flammability
SECTION 4
SIL PIN-OUTS
Common (E)
Common
parts are characterised by having a number of resistive
elements, all of the same nominal value. All elements are connected to pin 1.
1
2
3
6
4
5
n = Number of pins
7
8
n-1
Isolated (M)
Isolated
parts are characterised by having a number of resistive
elements, all of the same nominal value. All elements are independent.
1
2
3
4
6
5
n = Number of pins
n-1
n
136
www.dubilier.co.uk
