ECS-260-8-47Q-JY-TR Overview

Parallel - Fundamental Quartz Crystal,

ECS-260-8-47Q-JY-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7169873631
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
YTEOL	7.25
Other features	AEC-Q200; TR, 7 INCH
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.005%
frequency tolerance	20 ppm
JESD-609 code	e4
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	26 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
physical size	L1.6XB1.2XH0.3 (mm)/L0.063XB0.047XH0.012 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

ECX-1247Q

SMD Crystal

The ECX-1247Q is a very compact SMD Crystal with a 1.6 x

1.2 mm footprint. AEC-Q200 Qualified.

Request a Sample

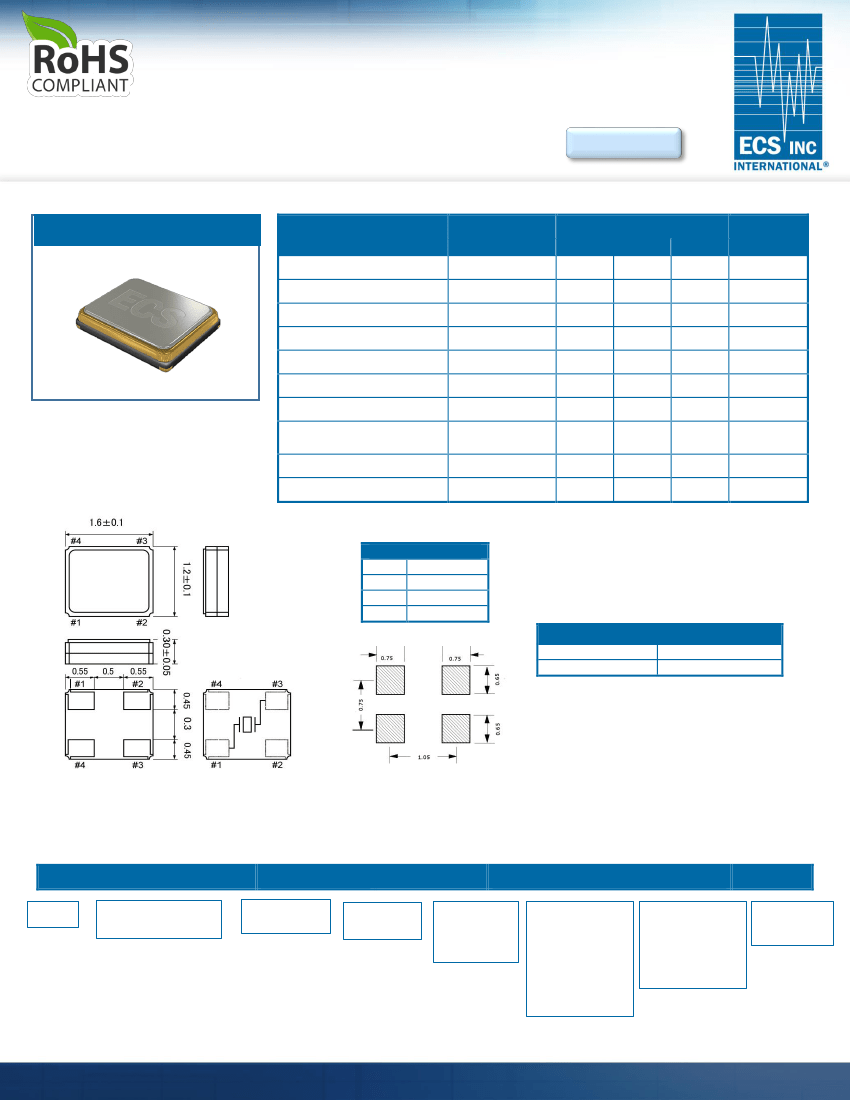

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

ECX-1247Q SMD CRYSTAL

PARAMETERS

Frequency

Mode of Oscillation

Frequency Tolerance*

Frequency Stability*

Shunt Capacitance

Load Capacitance

•

Low Profile

1.6 x 1.2 mm Footprint

RoHS Compliant

AEC-Q200 Qualified

CONDITIONS

ECX-1247Q

MIN

TYP

MAX

26.000

40.000

± 30

± 50

-40

100

+85

+125

±5

UNITS

MHz

ppm

μW

°C

ppm

Fundamental

@ +25°C

-40 ~ +85°C

Specify in P/N

Topr

Tstg

@ +25°C ±3°C

Drive Level

Operating

Temperature*

Storage Temperature

Aging (Per Year)

DIMENSIONS (mm)

Pad Connections

In/Out

Gnd

Out/In

Gnd

Frequency

(MHz)

26.000 ~ 29.999

30.000 ~ 40.000

ESR Ω Max.

100

Figure 1)

Top, Side, and Bottom

Crystal is symmetrical, pad 1 & 3 are interchangeable. Chamfer on

the bottom pad has no electrical significance.

Figure 2)

Suggested land pattern

PART NUMBERING GUIDE: Example ECS-260-8-47Q-TR

ECS - FREQUENCY ABBREVIATION

LOAD

CAPACITANCE

8 = 8 pF

S=Series

PACKAGE

Tolerance

47Q =

ECX-1247Q

Blank = Std

A = ± 25 ppm

J = ± 20 ppm

R = ± 15 ppm

C = ± 10 ppm

AVAILABLE OPTIONS

Stability

Temp Range

PACKAGING

ECS

260 = 26.000 MHz

See P/N Guide

Blank= Std

D= ±100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

T = ± 20 ppm †

W = ±15 ppm †

K = ± 10 ppm †

Blank= Std

L = -10 ~ +70°C

M = -20 ~ +70°C

Y = -30 ~ +85°C

N = -40 ~ +85°C

P = -40 ~ +105°C

S = -40 ~ +125°C

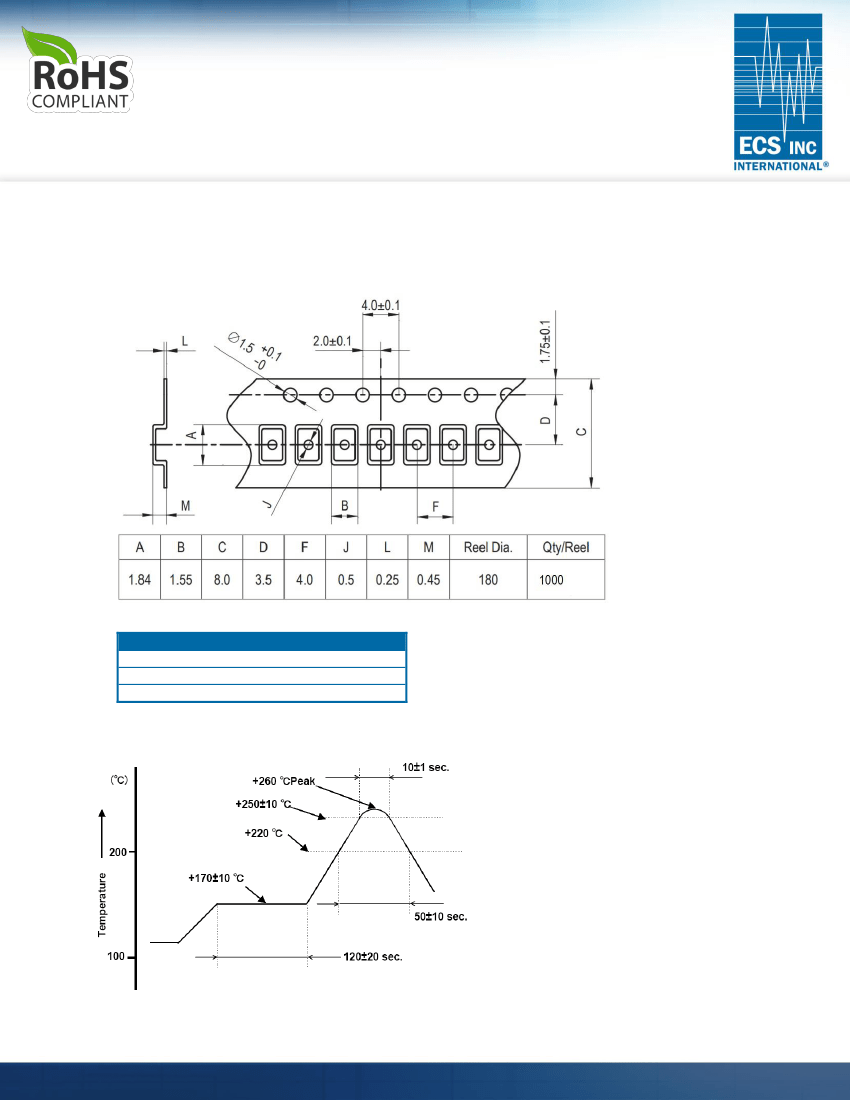

TR = Tape

& Reel

1K/Reel

* Specify available options in P/N.

† Contact ECS for availability over extended temp range.

Rev.2018

15351 West 109

Street

Lenexa, KS 66219

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
