High-Pressure Environmental
Square Flange Wall-Mount Gender Changer
How To Order
Sample Part Number
940 -016
B, J, M, N, NF, T, Z1
See Table III
10, 12, 14, 16, 18, 20, 22, 24
See Table II
See Table I
S
= Sockets Panel Side
P
= Pins, Panel Side
PP
= Pin to Pin Config.
SS
= Socket to Socket Config.
N, 1, 2, 3 or 4
940-016
M
24
-61
S
N
Alternate Key Position
Notes
1. Assembly identified with manufacturer's name and P/N, space permitting.
2. Glenair 940-016 connector saver is designed to mate with Glenair 22 - series Geo-
Marine®connectors.
3. Material/Finish:
Barrel, shell, coupling & jam nut - see Table II.
Contacts - copper alloy/gold plate.
Insulators - high grade rigid dielectric/n.a.
O-ring & seals - silicone/n.a.
MATES
WITH SERIES
22

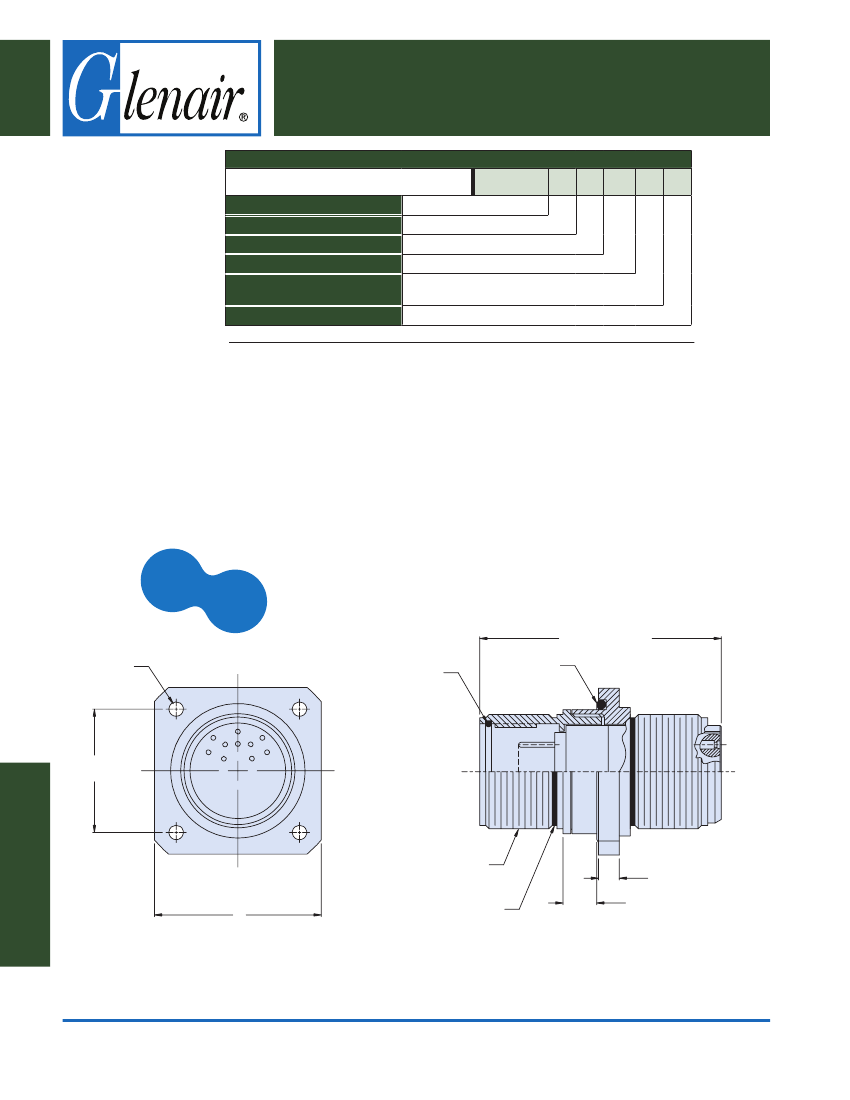

1.58(40.1) Max
D Dia Typ
O-ring
Typ
O-ring
B
Typ
D
C
SQ
A Thread
Class 2A
Typ
Red Color Band For
Visual Indication
Of Full Mate - Typ
.156(4.0) Max
.50(12.7) Max
Panel Accommodation
© 2014 Glenair, Inc.
Series 22 Geo-Marine
®
U.S. CAGE Code 06324
Rev 7-11-14
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
D-6
E-Mail: sales@glenair.com
940-016
High-Pressure Environmental
Square Flange Wall-Mount Gender Changer
Table I: Contact Arrangements
Shell
Size
Insert
Arrangement
Dash No
-2
-4
-6
-13
-8
-10
-22
-12
-19
--37
-19
-26
-55
-11
-22
-32
-66
30
-41
-79
-38
-50
-55
-85
-24
-48
-61
-100
Contact Size and
Quantity
22
20
6
13
10
22
19
37
26
55
32
66
41
79
38
48
85
61
100
16
48
16
55
2
30
11
22
19
SYM
B
J
M
N
NF
T
Z1
12
8
16
2
4
12
Shell Size
10
12
14
16
18
20
22
24
A Thread
.750-.1P-.1L
.875-.1P-.1L
1.000-.1P-.1L
1.125-.1P-.1L
1.250-.1P-.1L
1.375-.1P-.1L
1.500-.1P-.1L
1.625-.1P-.1L
Table II: Dimensions
B Dim
.938(23.8)
1.062(27.0)
1.188(30.2)
1.250(31.8)
1.375(34.9)
1.500(38.1)
1.625(41.3)
1.750(44.5)
C Dim
1.188(30.2)
1.312(33.3)
1.438(36.5)
1.562(39.7)
1.750(44.5)
1.875(47.6)
2.000(50.8)
2.125(54.0)
D
.125(3.2)
.125(3.2)
.125(3.2)
.125(3.2)
.125(3.2)
.125(3.2)
.125(3.2)
.156(4.0)
E
.890(22.6)
1.015(25.8)
1.140(29.0)
1.265(32.1)
1.390(32.5)
1.515(38.5)
1.640(41.7)
1.765(44.8)
10
12
14
16
Table III: Material and Finish
Finish Description
Cadmium plate/olive drab
Gold iridite over cadmium plate over nickel
Electroless nickel
Cadmium plate/olive drab over nickel
CAD/O. D. over electroless nickel (500 hour salt spray)
Cadmium plate/bright dip over nickel
Stainless steel, passivated
18
20
22
24
B
TYP
Panel Cut Out
E Dia
