O0.5-JO53-G-3.0-1-LF

Description
Oscillator, 0.5MHz Min, 125MHz Max, 0.5MHz Nom
CategoryPassive components    oscillator
File Size205KB,2 Pages
ManufacturerJauch
Websitehttp://www.jauchusa.com/
Environmental Compliance
Download Datasheet Parametric View All

O0.5-JO53-G-3.0-1-LF Overview

Oscillator, 0.5MHz Min, 125MHz Max, 0.5MHz Nom

O0.5-JO53-G-3.0-1-LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid114109783
Reach Compliance Codecompliant
Installation featuresSURFACE MOUNT
Number of terminals4
Maximum operating frequency125 MHz
Minimum operating frequency0.5 MHz
Nominal operating frequency0.5 MHz
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
Package body materialCERAMIC
Encapsulate equivalent codeDILCC4,.12
power supply3 V
Certification statusNot Qualified
Maximum slew rate10 mA
Nominal supply voltage3 V
surface mountYES

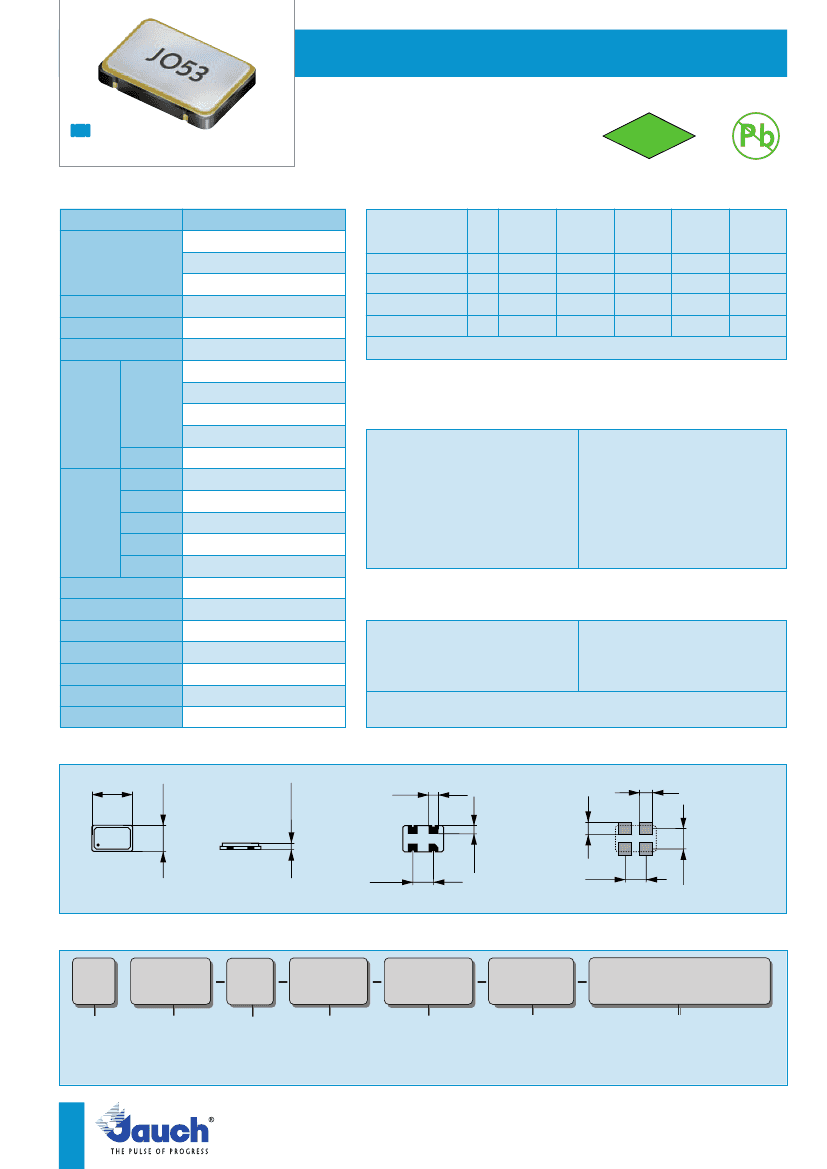

Oscillator · JO53 · 3.0 V
SMD Oscillator with Stop Function · 5.0 x 3.2 mm
actual size
I
high temperature version available
I
reflow soldering temperature: 260
°C max.
I
ceramic/metal package
2011/65/EC
RoHS compliant
Pb free: pins / pads
RoHS
General Data
type
frequency range
JO53 3.0 V
0.50 ~ 125.0 MHz (15 pF max.)
0.50 ~ 50.0 MHz (30 pF max.)
2.00 ~ 50.0 MHz (15 pF max. for T2 & T3*)
frequency stability over all**
current consumption
supply voltage V
DC
temperature
operating
± 20 ppm ~ ± 100 ppm (table 1)
see table 2
3.0 V ± 5%
-10 °C ~ +70 °C
-40 °C ~ +85 °C
-40 °C ~ +105 °C
-40 °C ~ +125 °C ask if available
storage
output
-55 °C ~ +125 °C
Table 1: Frequency Stability Code
stability code
A
± 100 ppm
-20 °C ~ +70 °C
-40 °C ~ +85 °C
-40 °C ~ +105 °C
-40 °C ~ +125 °C
STD.
T1
T2
T3*
B
± 50 ppm
G
± 30 ppm
O
O
C
± 25 ppm
O
O
D
± 20 ppm
Δ
O
I
I
ask if available
O
standard
O
available
Δ
excludes aging
** includes stability at 25 °C, operating temp. range, supply voltage change, shock and vibration, aging 1st year.
Table 2: Current Consumption max.
Current at 15 pF load
0.5 ~ 29.9 MHz
30.0 ~ 49.9 MHz
50.0 ~ 79.9 MHz
80.0 ~ 125.0 MHz
10 mA
20 mA
30 mA
40 mA
Current at 30 pF load
0.5 ~ 29.9 MHz
30.0 ~ 50.0 MHz
10 mA
25 mA
rise & fall time see table 3
load max.
current max.
15 pF / 30 pF (≤ +85 °C and
50.0 MHz)
5 mA / 4 mA (T2 & T3*)
low level max. 0.1 x V
DC
/ 0.4 V (T2 & T3*)
high level min. 0.9 x V
DC
/ V
DC
- 0.4 V (T2 & T3*)
output enable time max.
output disable time max.
start-up time max.
standby function
standby current max.
10 ms
150 ns / 200 ns (T2 & T3*)
10 ms
stop
10 µA / 20 µA (T2 & T3*)
Table 3: Rise & Fall Time max.
at 15 pF
6 ns: 0.50 ~ 1.79 MHz
5 ns: 1.80 ~ 49.99 MHz
4 ns: 50.00 ~ 125.00 MHz
at 30 pF
7 ns:
0.50 ~ 50.00 MHz
phase jitter 12 kHz ~ 20.0 MHz < 1.0 ps RMS
symmetry at 0.5 x V
DC
45% ~ 55% (40% ~ 60% max.)
* ask if available
note:
rise time: 0.1 V
DC
~ 0.9 V
DC
/ fall time: 0.9 V
DC
~ 0.1 V
DC
specific data on request
Dimensions
3.2
±0.2
5.0
±0.2
#4 #3
#1
#2
side view
1.4 max.
1.2
±0.1
1.5
±0.1
#3
#2
2.54
±0.1
#4
#1
1.0
±0.1
1.6
±0.1
pin connection
# 1: e/d
# 2: ground
# 3: output
# 4: V
DC
in mm
2.54
±0.1
pad layout
top view
bottom view
Order Information
O
Oscillator
frequency
type
frequency stability
code
see table 1
supply voltage
code
3.0 = 3.0 V
output load
code
1 = 15 pF
2 = 30 pF
blank =
T1 =
T2 =
T3 =
option
0.5 ~ 125.0 MHz
JO53
Example: O 20.0-JO53-B-3.0-1
(LF = RoHS compliant / Pb free pins or pads)
-10 °C ~
-40 °C ~
-40 °C ~
-40 °C ~
2.5
±0.1
+70 °C
+85 °C
+105 °C
+125 °C
Jauch Quartz GmbH
e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.co.uk / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
280513-18
