MDM-BT-51TE-SJS

Description
dsub backshell shield 51pos met
CategoryThe connector
File Size107KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric View All

MDM-BT-51TE-SJS Overview

dsub backshell shield 51pos met

MDM-BT-51TE-SJS Parametric

Parameter NameAttribute value
Datasheets
MDM-BT
Product Photos
MDM-BT-51TE-SJS
Featured Produc
Micro-D Backshells - MDM Series
Standard Package1
CategoryConnectors, Interconnects
FamilyD-Sub, D-Shaped Connectors - Backshells, Hoods
Accessory TypeOne Piece Backshell
Number of Positions51
Cable TypeRound
Cable Exi180°
ShieldingShielded
MaterialAluminum
PlatingYellow Chromate over Cadmium
Hardware-
FeaturesSpring Clip, Mating Screws
Col-
Dynamic CatalogMDM Series
For Use WithIMDM-51SH004B-ND - MICRO 51POS SKT 24"MDM-51SH003B-ND - MICRO-D PLUG 51POS SKT 18" WIREMDM-51SH006B-ND - MICRO-D PLUG 51POS SKT 36" WIREIMDM-51PH027B-ND - MICRO 51POS PIN 3"MDM-51PH002B-ND - MICRO 51POS PIN 12"IMDM-51PH034B-ND - MICRO 51POS PIN 8"MDM-51PH005B-ND - MICRO 51POS PIN 30"IMDM-51PH023B-ND - MICRO 51POS PIN 20"MDM-51PH025B-ND - MICRO 51POS PIN 10"IMDM-51PH016B-ND - MICRO 51POS PIN 6"MDM-51PH003B-ND - MICRO-D RCPT 51POS PIN 18" WIREMDM-51PH004B-ND - MICRO 51POS PIN 24"MDM-51PH006B-ND - MICRO-D RCPT 51POS PIN 36" WIRE1003-1143-ND - MICRO-D 51POS SKT SLDER CUP1003-1141-ND - MICRO-D 51POS PIN SLDER CUP
Other Names1003-2391980-0011-0439800011043
ITT Cannon Accessories
Shielded metal backshell
.378
(9.6)
Micro Metal Backshell
For MDM connectors
.634
(16.1)
.138
(3.5)
Top Entry

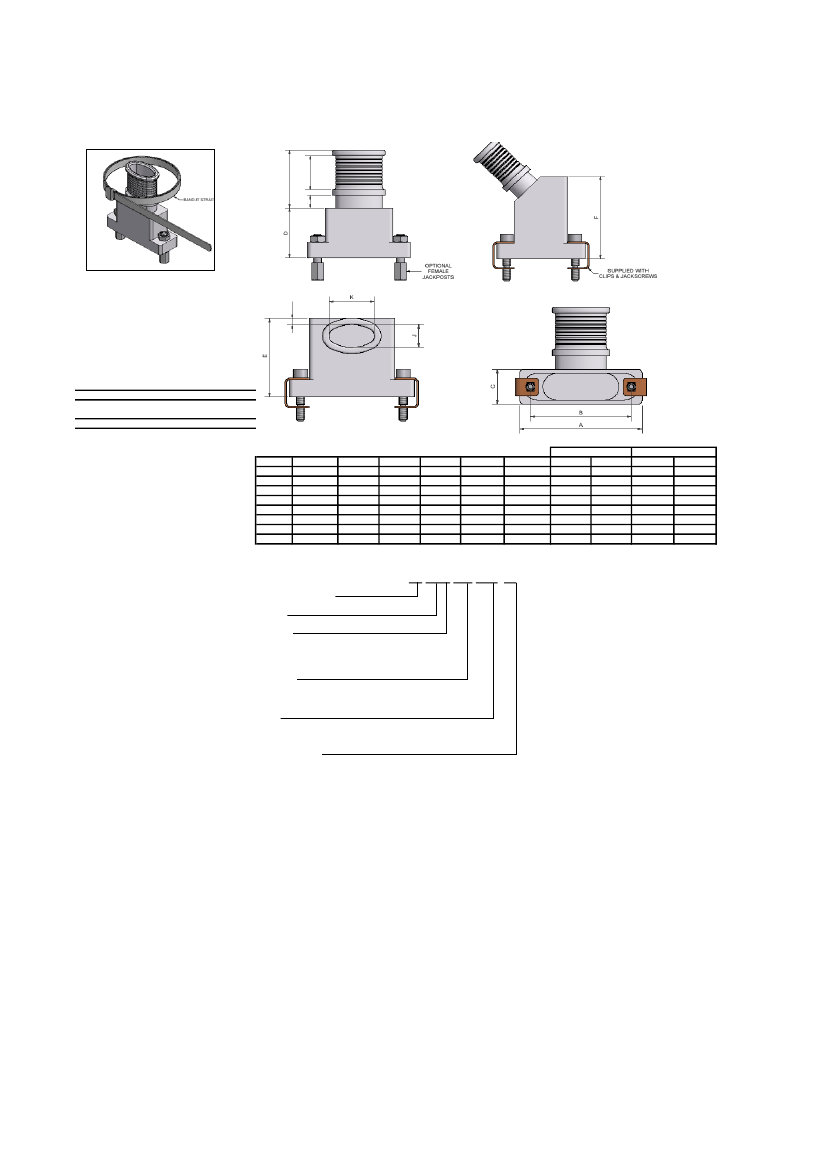

A single piece, machined aluminum shell for ITT
Cannon MDM connectors. Cable braid can be fixed to
the shell with the band-it strap (supplied with the
backshell) to give a shielded termination. Stainless
steel mounting hardware, either jackposts or low
profile jack screws, comes with the backshell.
45° Entry
.063
(1.6)
Materials and Finishes
Backshell Material: Aluminum
Backshell Finish:
Electroless Nickel or
Yellow Chromate over Cadmium
Hardware Material: Stainless Steel
Side Entry
Shell Size
9
15
21
25
31
37
51
100
A
0.776 (19.7)
0.921 (23.4)
1.075 (27.3)
1.175 (29.9)
1.327 (33.7)
1.476 (37.5)
1.421 (36.1)
2.165 (55.0)
B
C
D
0.394 (10.0)
0.472 (12.0)
0.551 (14.0)
0.630 (16.0)
0.669 (17.0)
0.709 (18.0)
0.748 (19.0)
0.827 (21.0)
E
0.591 (15.0)
0.650 (16.5)
0.709 (18.0)
0.787 (20.0)
0.827 (21.0)
0.866 (22.0)
0.906 (23.0)
0.984 (25.0)
F
0.827 (21.0)
0.906 (23.0)
0.984 (25.0)
1.063 (27.0)
1.102 (28.0)
1.142 (29.0)
1.181 (30.0)
1.496 (38.0)
Styles TE & SE
J
K
0.228 (5.8)
0.228 (5.8)
0.228 (5.8)
0.228 (5.8)
0.228 (5.8)
0.228 (5.8)
0.268 (6.8)
0.307 (7.8)
0.276 (7.0)
0.425 (10.8)
0.425 (10.8)
0.598 (15.2)
0.598 (15.2)
0.791 (20.1)
0.898 (22.8)
1.024 (26.0)
Style AE
J
0.189 (4.8)
0.189 (4.8)
0.228 (5.8)
0.228 (5.8)
0.228 (5.8)
0.228 (5.8)
0.268 (6.8)
0.307 (7.8)
K
0.189 (4.8)
0.189 (4.8)
0.276 (7.0)
0.425 (10.8)
0.425 (10.8)
0.598 (15.2)
0.697 (17.7)
1.024 (26.0)
0.565 (14.4) 0.354 (9.0)
0.715 (18.2) 0.354 (9.0)
0.865 (22.0) 0.354 (9.0)
0.965 (24.5) 0.354 (9.0)
1.115 (28.3) 0.354 (9.0)
1.265 (32.1) 0.354 (9.0)
1.215 (30.9) 0.394 (10.0)
1.800 (45.7) 0.433 (11.0)
MDM-BT-15TE-SJS-CAD- ***
Band tied backshell
Shell size
Cable entry
TE = top entry
AE = angled (45°) entry
SE = side entry
Harware
SJS = spring clips and jackscrews
JP = jackposts
Plating
blank - electroless nickel
CAD - yellow chromate over cadmium
Modification code
Smaller cable entry - consult factory
