33FLZ-SM2-TB(LF)(SN) datasheet, PDF

Datasheet> All Categories > The connector> The connector> 33FLZ-SM2-TB(LF)(SN)

33FLZ-SM2-TB(LF)(SN): Descriptionconn ffc/fpc 33pos .5mm tin smd; CategoryThe connector The connector; File Size64KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric View All

33FLZ-SM2-TB(LF)(SN) Overview

conn ffc/fpc 33pos .5mm tin smd

33FLZ-SM2-TB(LF)(SN) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Other features	ZIF
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	33
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

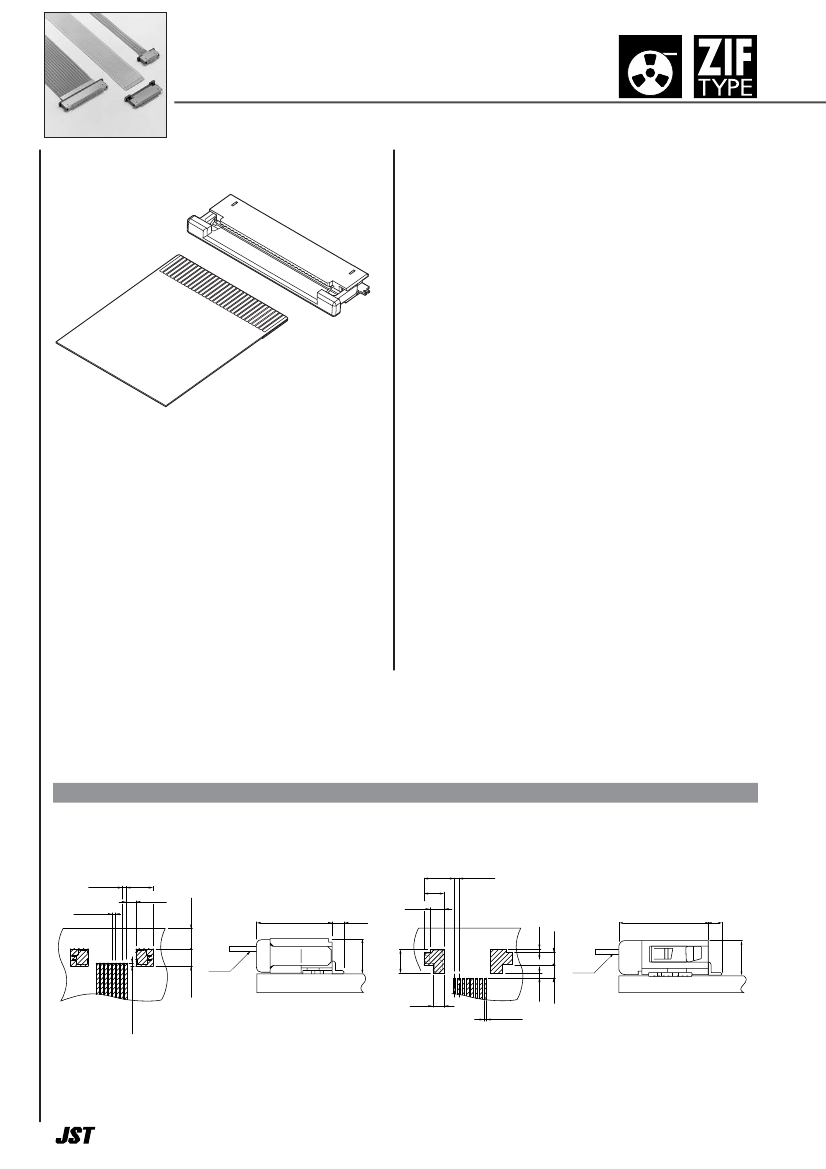

FLZ

CONNECTOR

Emboss Tape

0.5mm pitch/Connectors for FFC and FPC

Specifications –––––––––––––––––––

• Current rating: 0.5 A AC, DC

• Voltage rating: 50 V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/ 40 mΩ max.

After environmental tests/ 60 mΩ max.

• Insulation resistance: 800 MΩ min.

• Withstanding voltage: 200 VAC/minute

• Applicable FFC and FPC: Conductor pitch/ 0.5 mm

Conductor width/ 0.35 mm

Mating part thickness/ 0.3

0.03 mm

Note:

FFC and

FPC to be actually used should be checked for applicability.

This extremely small 0.5 mm pitch

connector with a height of only 2.0 mm

above the PCB surface allows

interconnection in extremely small spaces

and is an example of JST's leading edge

technology.

• Zero insertion force mechanism

• Heat resisting design suitable for surface

mounting

• In-line surface mount tails

• Two types of connections

• Embossed tape for automatic mounting

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

* Compliant with RoHS.

Standards ––––––––––––––––––––––

Certified LR20812

Recognized E60389

PC board layout and Assembly layout

Inner lock type

3.75

2.85

0.5

±0.03

0.5

±0.03

0.35

±0.05

3.3

±0.1

2.5

min

1.2

±0.1

2.05

4.6

（0.7）

0.4

1.5

5.1

0.7

（2.95）

2.1

±0.1

FPC

1.65

0.6

±0.1

1.55

0.3

±0.05

Note: 1. The above figure is the figure viewed from the connector mounting side.

2. Tolerances are non-cumulative:

0.03 mm for all centers. The dimensions above should serve as a guideline. Contact JST for details.

0.35
