30FHY-RSM1-GAN-TF(LF)(SN) datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 30FHY-RSM1-GAN-TF(LF)(SN)

Preview

30FHY-RSM1-GAN-TF(LF)(SN): Descriptionfhy conn 0.5mm 30 pos fpc; CategoryThe connector The connector; File Size131KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

30FHY-RSM1-GAN-TF(LF)(SN) Overview

fhy conn 0.5mm 30 pos fpc

30FHY-RSM1-GAN-TF(LF)(SN) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	NOT APPLICABLE
Contact material	NOT SPECIFIED

Preview

Download Datasheet

View All

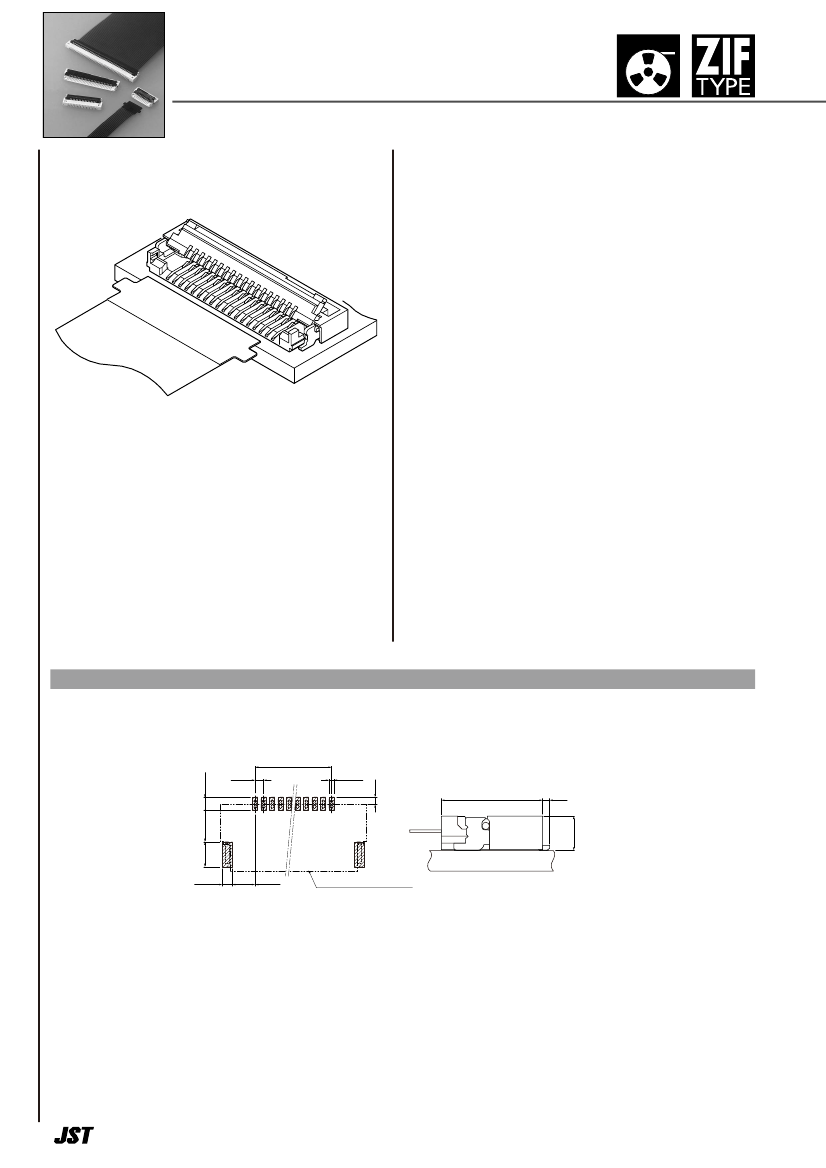

0.5mmピッチ

FHY

CONNECTOR

0.5mm pitch/Connectors for FPC

Emboss Tape

Specifications –––––––––––––––––––

• Current rating: 0.5A AC, DC

• Voltage rating: 50V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/60m

Ω

max.

After environmental testing/60m

Ω

max.

(variation from initial value)

• Insulation resistance:

500M

Ω

min.

• Withstanding voltage: 200V AC/minute

• Applicable FPC: Conductor pitch/0.5mm

Conductor width/0.35mm

Mating part thickness/0.3±0.03mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

The connector for the 0.3mm thickness

FPC with a mounting height of 1.3mm.

FPC with protrusion prevents incomplete

insertion and mis-insertion, so that it

provides reliable connection.

• A FPC with protrusion improves operability

and reliability

• Reliable cover

• Self-lock mechanism enables the cover to

close by one-touch operation

Standards ––––––––––––––––––––––

0

Recognized E60389

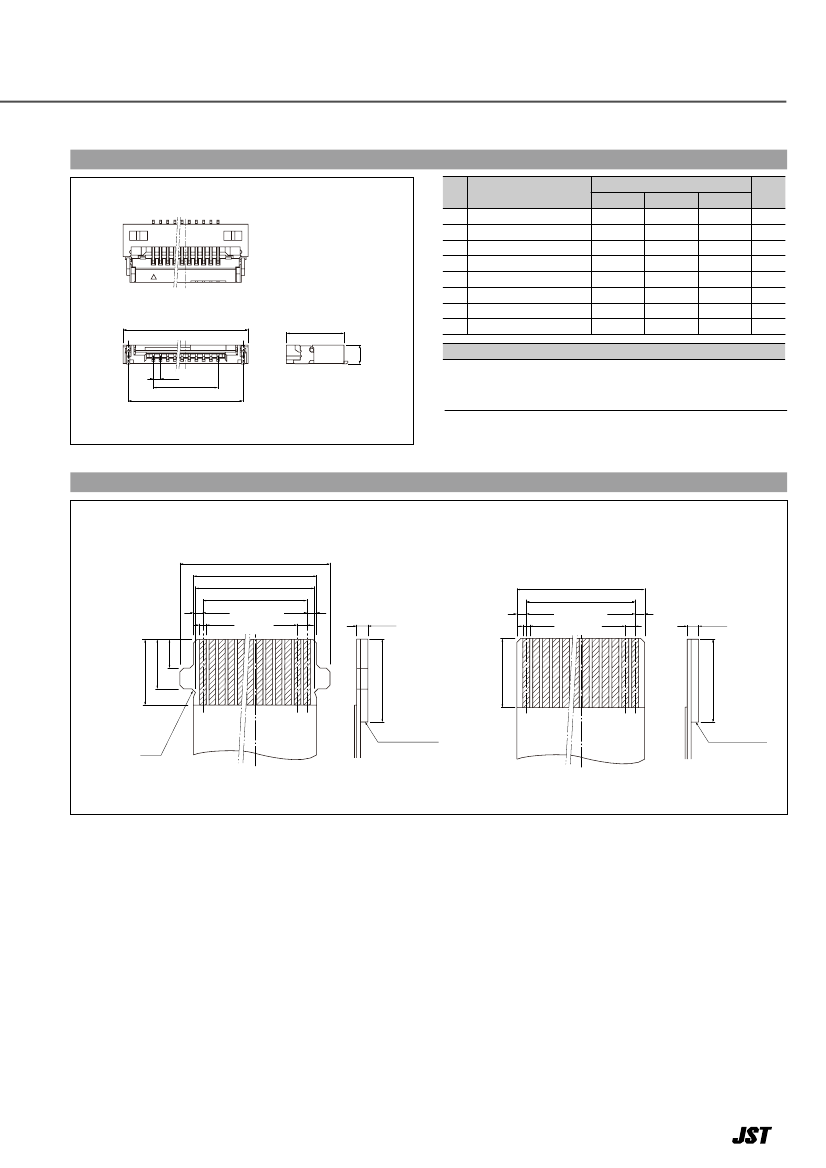

PC board layout (viewed from component side) and Assembly layout

±

0.5

（N−1）

0.05

0.8

±0.05

0.45

0.5

±0.05

0.3

±0.05

4.0

0.3

1.9

±0.1

1.5

±0.1

0.6

±0.05

1.4

±0.05

External shape of connector

Note: 1. Tolerances are non-cumulative:

±

0.05mm for all centers.

2. The dimensions above should serve as a guideline. Contact JST for details.

3. N --- Number of circuits

1

1.3

30FHY-RSM1-GAN-TF(LF)(SN) Related Products

	30FHY-RSM1-GAN-TF(LF)(SN)	18FHY-RSM1-GAN-TF	10FHY-RSM1-GAN-TF(LF)(SN)	30FHY-RSM1-GAN-TF	40FHY-RSM1-TF	50FHY-RSM1-TF	10FHY-RSM1-GAN-TF
Description	fhy conn 0.5mm 30 pos fpc	Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal	fhy 0.5mm pitch 10pos smt	Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 40 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 50 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal
Is it lead-free?	Lead free	Contains lead	Lead free	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	conform to	incompatible	conform to	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknow
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Maker	JST	-	-	JST	JST	JST	JST
Contact to complete cooperation	TIN OVER COPPER	GOLD OVER NICKEL	-	GOLD OVER NICKEL	TIN OVER COPPER	TIN OVER COPPER	GOLD OVER NICKEL
Contact completed and terminated	NOT APPLICABLE	Gold (Au) - with Nickel (Ni) barrie	-	Gold (Au) - with Nickel (Ni) barrier	TIN OVER COPPER	TIN OVER COPPER	Gold (Au) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Other features	-	ZERO INSERTION FORCE	ZIF	ZERO INSERTION FORCE	ZERO INSERTION FORCE	ZERO INSERTION FORCE	ZERO INSERTION FORCE
Contact point gender	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	-	NO	NO	NO	NO	NO	NO
Filter function	-	NO	NO	NO	NO	NO	NO
IEC compliance	-	NO	NO	NO	NO	NO	NO
JESD-609 code	-	e4	-	e4	e3	e3	e4
MIL compliance	-	NO	NO	NO	NO	NO	NO
Mixed contacts	-	NO	NO	NO	NO	NO	NO
Installation method	-	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	-	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	-	1	1	1	1	1	1
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	-	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	-	18	10	30	40	50	10
UL Flammability Code	-	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	-	1	1	1	1	1	-
