1-1393482-2 datasheet, PDF - EEWORLD Datasheet

1-1393482-2: Descriptionconn D-sub rcpt R/A 9pos T/H; CategoryThe connector; File Size335KB，3 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1-1393482-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1393482-2	-	-	View	Buy Now

conn D-sub rcpt R/A 9pos T/H

Parameter Name	Attribute value
Datasheets

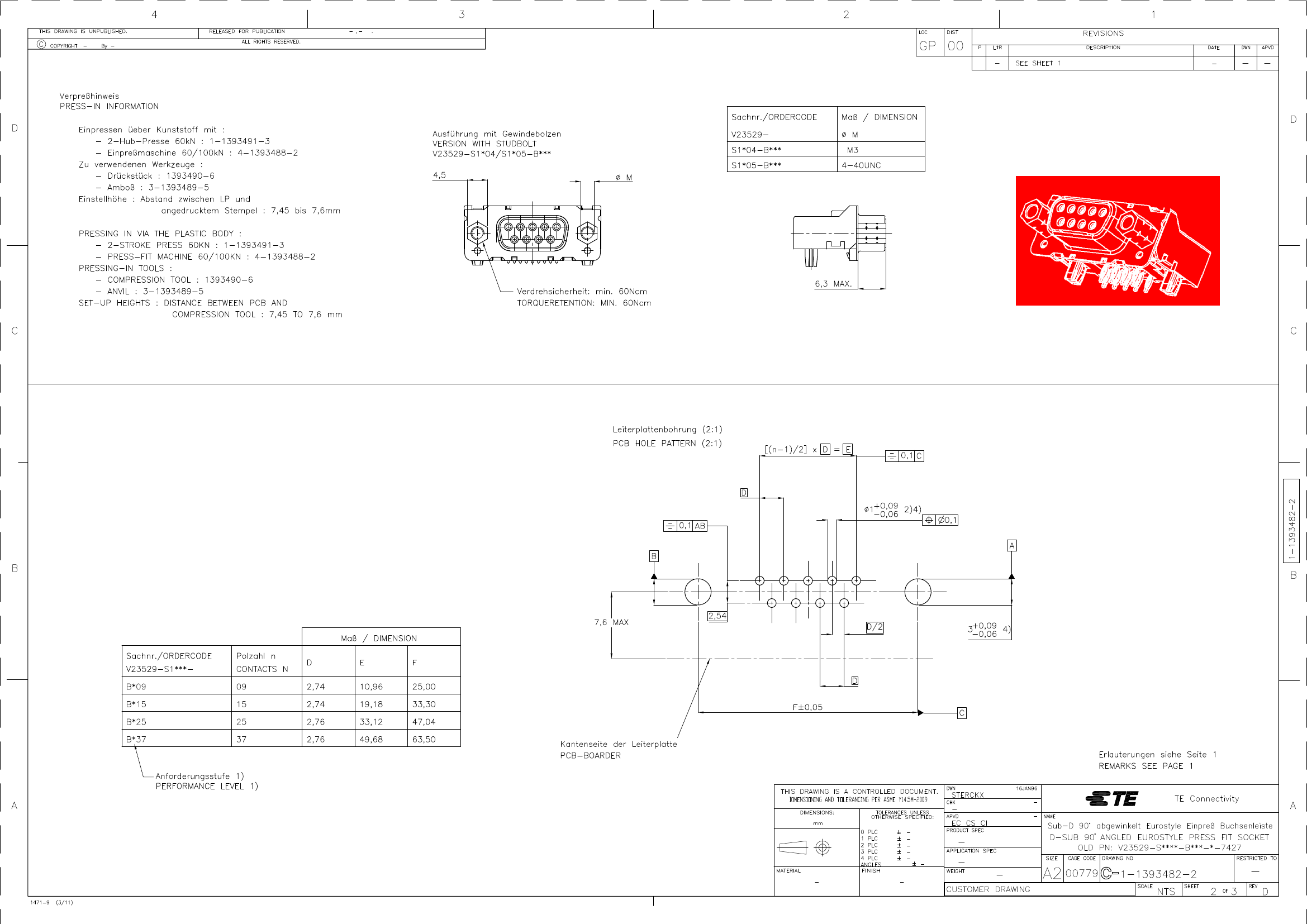

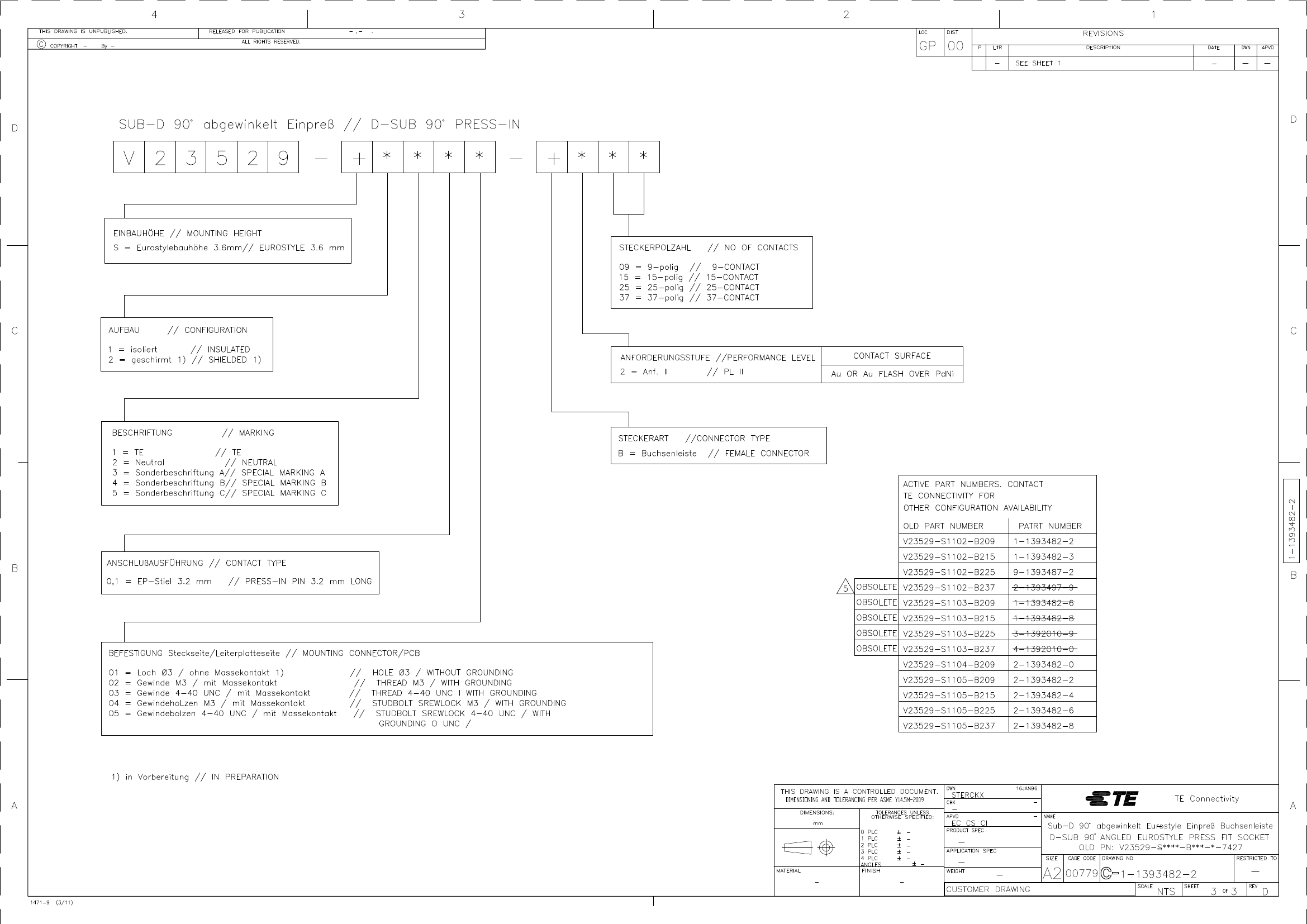

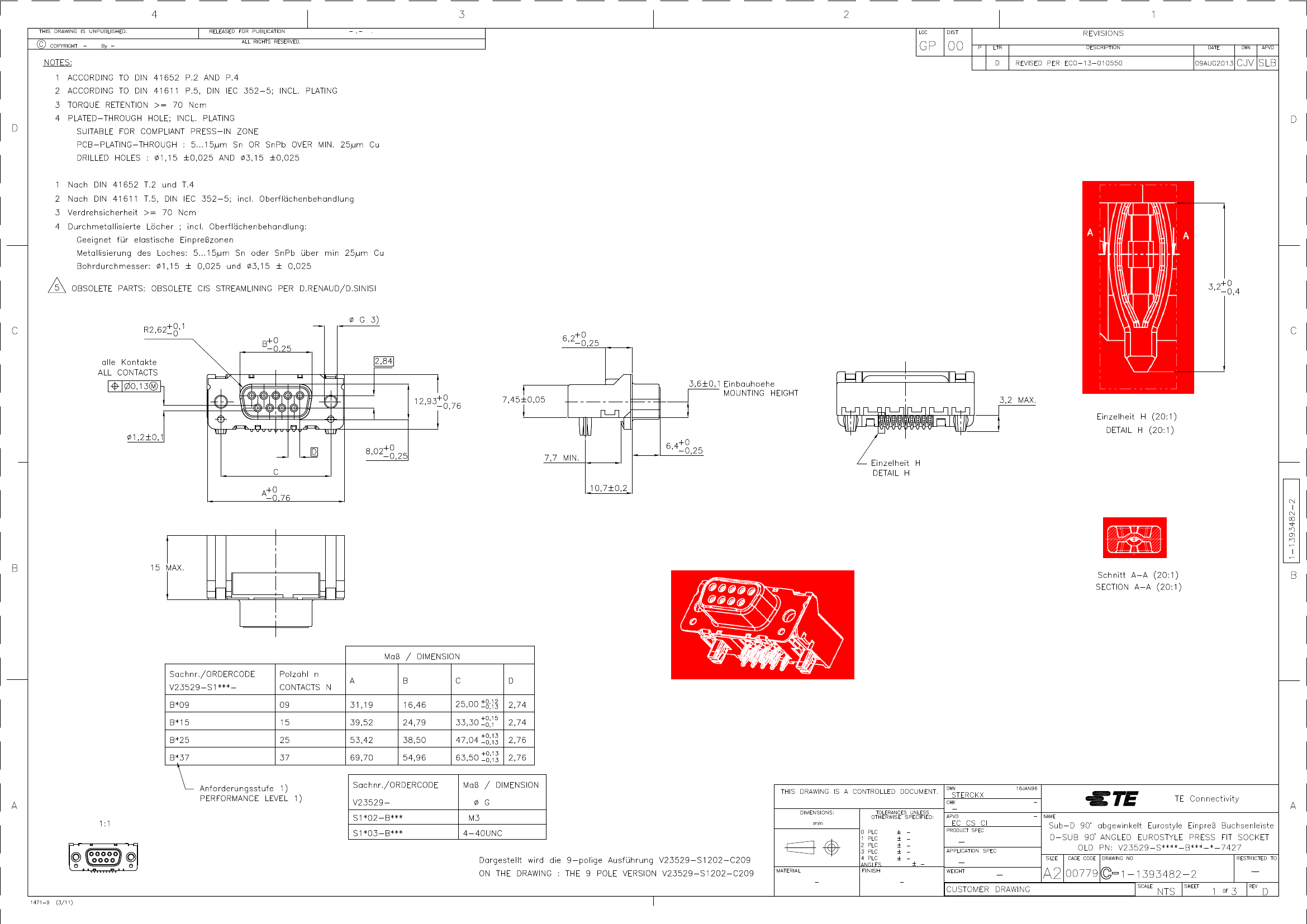

1-1393482-2 Drawing
AMPLIMITE Catalog
RoHS Informati
1-1393482-2 Statement of Compliance
RoHS 2 Stateme
Standard Package	400
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Bulk
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layou	1 (DE, E)
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Flange Feature	Housing/Shell (M3)
Terminati	Press-Fi
Features	Board Lock
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Ingress Protecti	-
Operating Temperature	-55°C ~ 125°C
Voltage Rating	-
Current Rating	2.2A
Housing Material	Polybutylene Terephthalate (PBT)
Col	Black
Mating Products	A101880-ND - CONN D-SUB PLUG 9POS SLD CUP749808-8-ND - CONN D-SUB PLUG 9POS CRIMP5-747904-5-ND - CONN D-SUB PLUG 9POS SLD CUP AUA32507-ND - CONN D-SUB PLUG 9POS SLD CUP AUAMR09B-ND - CONN D-SUB PLUG 9POS GOLDA31966-ND - CONN D-SUB PLUG 9POS 20-22AWG AUA31965-ND - CONN D-SUB PLUG 9POS 26-30AWG AUA31930-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31929-ND - CONN D-SUB PLUG 9POS 22-26AWG AU

	1-1393482-2
Description	conn D-sub rcpt R/A 9pos T/H
Standard Package	400
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Bulk
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layou	1 (DE, E)
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Flange Feature	Housing/Shell (M3)
Terminati	Press-Fi
Features	Board Lock
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Operating Temperature	-55°C ~ 125°C
Current Rating	2.2A
Housing Material	Polybutylene Terephthalate (PBT)
Col	Black
Mating Products	A101880-ND - CONN D-SUB PLUG 9POS SLD CUP749808-8-ND - CONN D-SUB PLUG 9POS CRIMP5-747904-5-ND - CONN D-SUB PLUG 9POS SLD CUP AUA32507-ND - CONN D-SUB PLUG 9POS SLD CUP AUAMR09B-ND - CONN D-SUB PLUG 9POS GOLDA31966-ND - CONN D-SUB PLUG 9POS 20-22AWG AUA31965-ND - CONN D-SUB PLUG 9POS 26-30AWG AUA31930-ND - CONN D-SUB PLUG 9POS 22-26AWG AUA31929-ND - CONN D-SUB PLUG 9POS 22-26AWG AU
