6-5174218-1: Descriptionconn D-cap male pins 30pos R/A; CategoryThe connector; File Size119KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

6-5174218-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	6-5174218-1	-	-	View	Buy Now

6-5174218-1 Overview

conn D-cap male pins 30pos R/A

6-5174218-1 Parametric

Parameter Name	Attribute value
Datasheets

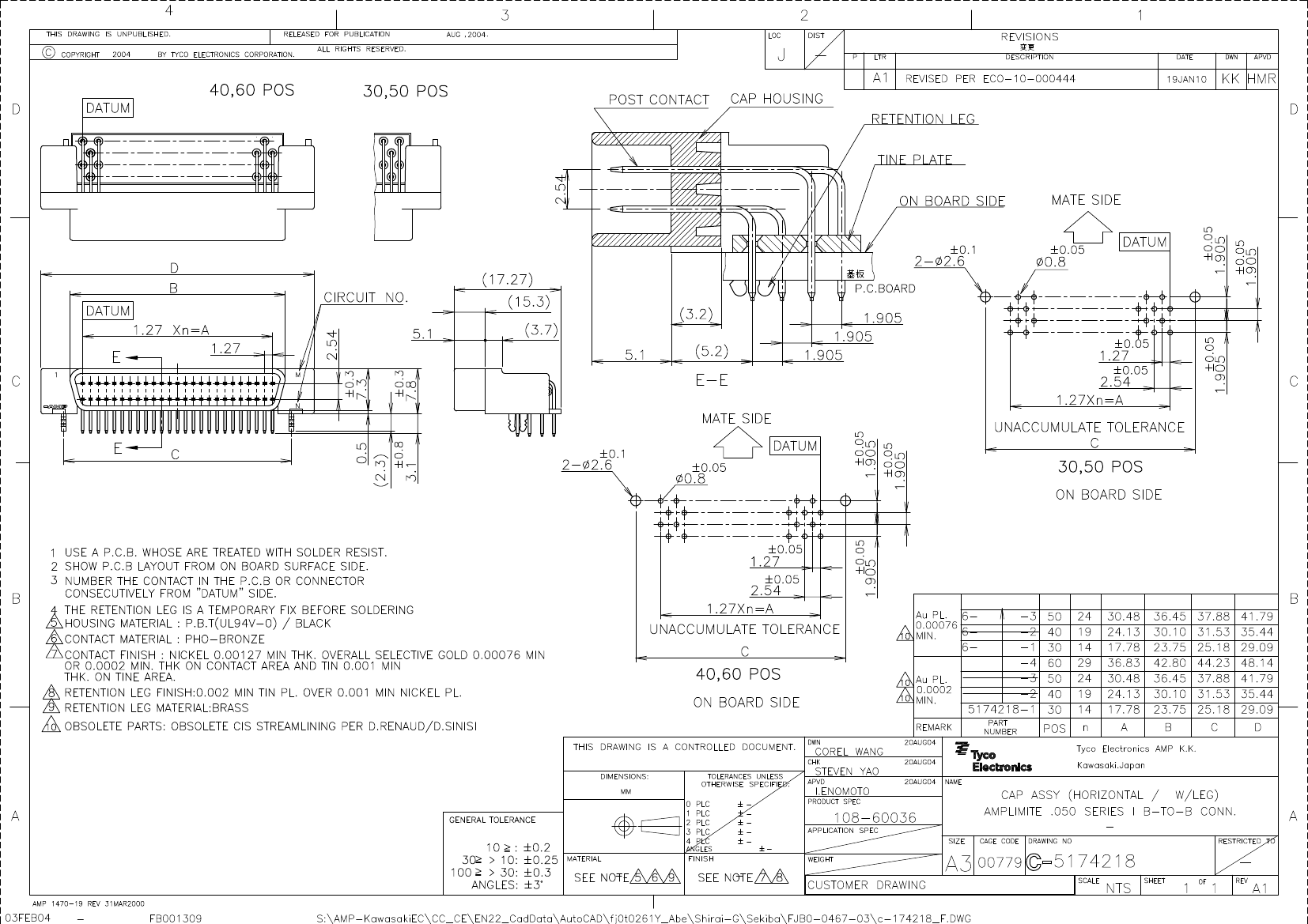

5174218 Drawing
RoHS Informati
6-5174218-1 Statement of Compliance
RoHS 2 Stateme
Standard Package	1,792
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Bulk
Connector Style	D-Type, Board to Board
Connector Type	Cap, Male Pins
Number of Positions	30
Number of Rows	2
Shell Size, Connector Layou	0.050 Pitch x 0.100 Row to Row
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Flange Feature	-
Terminati	Solde
Features	Board Lock
Shell Material, Finish	-
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	100V
Current Rating	1A
Housing Material	Polybutylene Terephthalate (PBT)
Col	Black
Mating Products	6-174213-1-ND - CONN D-PLUG W/SOCKET 30POS R/A6-5173277-1-ND - CONN D-PLUG FEM SCKT 30POS R/A6-5175710-3-ND - CONN D-PLUG FEM SCKT 30POS VERT5175710-1-ND - CONN D-PLUG FEM SCKT 30POS VERT175710-1-ND - CONN D-PLUG FEM SCKT 30POS VERT6-5174217-1-ND - CONN D-PLUG FEM SCKT 30POS R/A6-174217-1-ND - CONN D-PLUG FEM SCKT 30POS R/A5174217-1-ND - CONN D-PLUG FEM SCKT 30POS R/A174217-1-ND - CONN D-PLUG FEM SCKT 30POS R/A6-5174215-1-ND - CONN D-PLUG FEM SCKT 30POS VERT5174215-1-ND - CONN D-PLUG FEM SCKT 30POS VERT174215-1-ND - CONN D-PLUG FEM SCKT 30POS VERT174213-1-ND - CONN D-PLUG FEM SCKT 30POS R/A

Preview

Download Datasheet

View All

6-5174218-1 Related Products

	6-5174218-1	5174218-1
Description	conn D-cap male pins 30pos R/A	conn D-cap male pins 30pos R/A
Standard Package	1,792	1,792
Category	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors
Packaging	Bulk	Bulk
Connector Style	D-Type, Board to Board	D-Type, Board to Board
Connector Type	Cap, Male Pins	Cap, Male Pins
Number of Positions	30	30
Number of Rows	2	2
Shell Size, Connector Layou	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row
Contact Type	Signal	Signal
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Terminati	Solde	Solde
Features	Board Lock	Board Lock
Contact Finish	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	8µin (0.20µm)
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	100V	100V
Current Rating	1A	1A
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Col	Black	Black
Mating Products	6-174213-1-ND - CONN D-PLUG W/SOCKET 30POS R/A6-5173277-1-ND - CONN D-PLUG FEM SCKT 30POS R/A6-5175710-3-ND - CONN D-PLUG FEM SCKT 30POS VERT5175710-1-ND - CONN D-PLUG FEM SCKT 30POS VERT175710-1-ND - CONN D-PLUG FEM SCKT 30POS VERT6-5174217-1-ND - CONN D-PLUG FEM SCKT 30POS R/A6-174217-1-ND - CONN D-PLUG FEM SCKT 30POS R/A5174217-1-ND - CONN D-PLUG FEM SCKT 30POS R/A174217-1-ND - CONN D-PLUG FEM SCKT 30POS R/A6-5174215-1-ND - CONN D-PLUG FEM SCKT 30POS VERT5174215-1-ND - CONN D-PLUG FEM SCKT 30POS VERT174215-1-ND - CONN D-PLUG FEM SCKT 30POS VERT174213-1-ND - CONN D-PLUG FEM SCKT 30POS R/A	6-174213-1-ND - CONN D-PLUG W/SOCKET 30POS R/A6-5173277-1-ND - CONN D-PLUG FEM SCKT 30POS R/A6-5175710-3-ND - CONN D-PLUG FEM SCKT 30POS VERT5175710-1-ND - CONN D-PLUG FEM SCKT 30POS VERT175710-1-ND - CONN D-PLUG FEM SCKT 30POS VERT6-5174217-1-ND - CONN D-PLUG FEM SCKT 30POS R/A6-174217-1-ND - CONN D-PLUG FEM SCKT 30POS R/A5174217-1-ND - CONN D-PLUG FEM SCKT 30POS R/A174217-1-ND - CONN D-PLUG FEM SCKT 30POS R/A6-5174215-1-ND - CONN D-PLUG FEM SCKT 30POS VERT5174215-1-ND - CONN D-PLUG FEM SCKT 30POS VERT174215-1-ND - CONN D-PLUG FEM SCKT 30POS VERT174213-1-ND - CONN D-PLUG FEM SCKT 30POS R/A
