Datasheet> All Categories > The connector> 787190-7

Preview

787190-7: Descriptionconn rcpt 68pos R/A .050 rdsn; CategoryThe connector; File Size219KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

787190-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	787190-7	-	-	View	Buy Now

787190-7 Overview

conn rcpt 68pos R/A .050 rdsn

787190-7 Parametric

Parameter Name	Attribute value
Datasheets
787190
Product Photos
787190-7
RoHS Informati
787190-7 Statement of Compliance

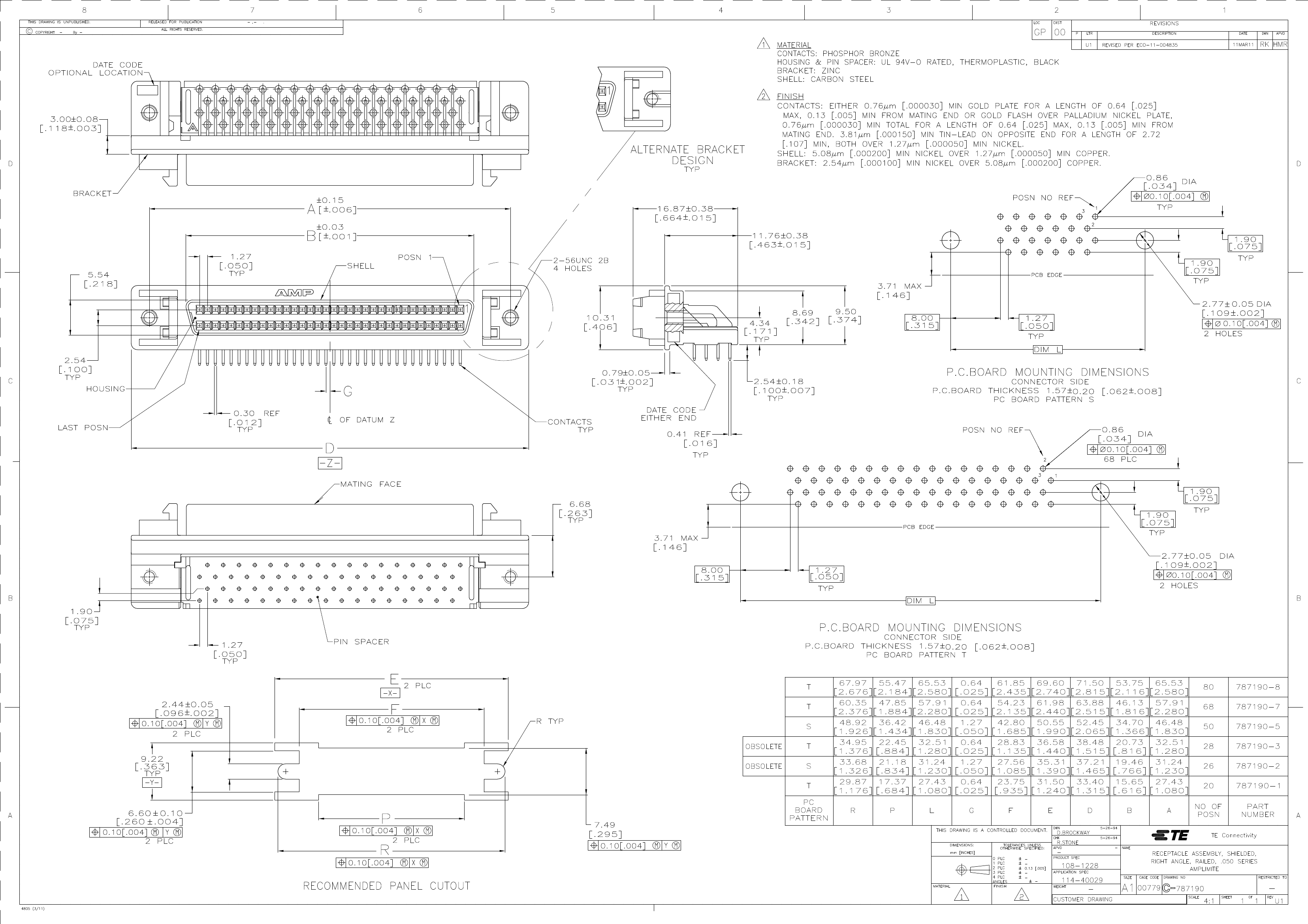

Catalog Drawings
Right Angle Receptacle Rails Boardlocks
3D Model
787190-7.pdf
Standard Package	448
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tube
Connector Style	D-Type
Connector Type	Receptacle, Female Sockets
Number of Positions	68
Number of Rows	2
Shell Size, Connector Layou	0.050 Pitch x 0.100 Row to Row
Contact Type	Signal
Mounting Type	Panel Mou
Through Hole, Right Angle
Flange Feature	Housing/Shell (2-56)
Latchblocks, Rails
Terminati	Solde
Features	Shielded
Shell Material, Finish	Steel, Nickel Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	30V
Current Rating	1A
Housing Material	Thermoplastic
Col	Black
Mating Products	A31795-ND - CONN PLUG 68POS .050 IDC W/COVA31789-ND - CONN PLUG 68POS .050SR W/COVERA31787-ND - CONN PLUG 68POS .050SR 3PC GRAYA31786-ND - CONN PLUG 68POS .050SR 3PC BLK
Other Names	787190-7-NDA23736

Preview

Download Datasheet

View All

787190-7 Related Products

	787190-7	787190-2	787190-1	787190-5
Description	conn rcpt 68pos R/A .050 rdsn	conn rcpt 26pos R/A .050	conn rcpt 20pos R/A .050 rdsn	conn rcpt 50pos R/A .051
Standard Package	448	14	570	10
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Tube	Tube	Tube	Tube
Connector Style	D-Type	D-Type	D-Type	D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	68	26	20	50
Number of Rows	2	2	2	2
Shell Size, Connector Layou	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row	0.050 Pitch x 0.100 Row to Row
Contact Type	Signal	Signal	Signal	Signal
Mounting Type	Panel Mou	Panel Mou	Panel Mou	Panel Mou
Flange Feature	Housing/Shell (2-56)	Housing/Shell (2-56)	Housing/Shell (2-56)	Housing/Shell (2-56)
Terminati	Solde	Solde	Solde	Solde
Features	Shielded	Shielded	Shielded	Shielded
Shell Material, Finish	Steel, Nickel Plated	Steel, Nickel Plated	Steel, Nickel Plated	Steel, Nickel Plated
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	Flash	Flash	Flash	Flash
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	30V	30V	30V	30V
Current Rating	1A	1A	1A	1A
Housing Material	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic
Col	Black	Black	Black	Black
Mating Products	A31795-ND - CONN PLUG 68POS .050 IDC W/COVA31789-ND - CONN PLUG 68POS .050SR W/COVERA31787-ND - CONN PLUG 68POS .050SR 3PC GRAYA31786-ND - CONN PLUG 68POS .050SR 3PC BLK	-	A31788-ND - CONN PLUG 20POS .050SR W/COVER	A33483-ND - CONN 50POS .050 CHAMPPLUG SCHCVRA33480-ND - 50 50SR CABLE CONN KITA31794-ND - CONN PLUG 50POS .050 IDC W/COVA31785-ND - CONN PLUG 50POS .050SR 3PC GRAY
Other Names	787190-7-NDA23736	749075-2A3315	-	749075-5A3319
