28FMN-SMT-A-TF

Description
conn fmn housing 28pos side smd
CategoryThe connector    The connector
File Size184KB,3 Pages
ManufacturerJST
Environmental Compliance
Download Datasheet Parametric View All

28FMN-SMT-A-TF Overview

conn fmn housing 28pos side smd

28FMN-SMT-A-TF Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?conform to
MakerJST
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresSIDE ENTRY
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationTIN LEAD OVER COPPER
Contact completed and terminatedTin/Lead (Sn/Pb)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Plug informationNO
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch1 mm
Termination typeSURFACE MOUNT
Total number of contacts28
UL Flammability Code94V-0
Base Number Matches1

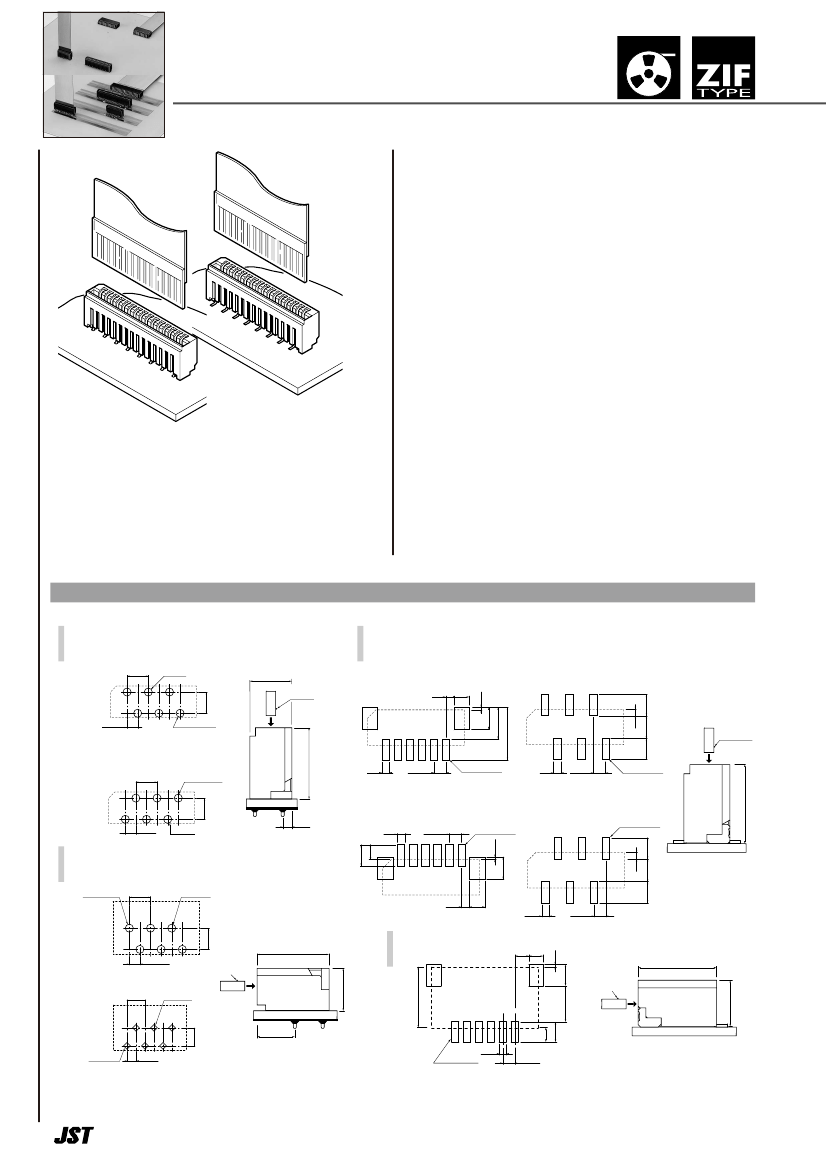

1.0mmピッチ
FMN
CONNECTOR
1.0mm pitch/Connectors for FFC
Emboss Tape
NON-
Specifications –––––––––––––––––––
• Current rating: 0.5A DC
• Voltage rating: 50V DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/30m
max.
After environmental testing/50m
max.
• Insulation resistance:
500M
min.
• Withstanding voltage: 500V AC/minute
• Applicable FFC:
Conductor pitch/1.0mm
Conductor width/0.7mm
Mating part thickness/0.3±0.05mm
• Applicable PC board thickness: 1.6mm
SMT type
Through-hole type
Note
: FFC
to be actually used should be checked for applicability.
• Compact
• Low insertion force
• Both through-hole and SMT types are
available
• Embossed tape for automatic mounting
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
1
Certified LR20812
<SMT type>
Top entry type
<In-line>
0
Recognized E60389
PC board layout (viewed from component side) and Assembly layout
<Through-hole type>
Top entry type
Normal type
2.0
±0.05
0.75
±0.05
<Staggered>
Normal type
0.2
3.0
2.0
±0.05
Normal type
Contact
point
0.7
1.2
1.8
2.7
1.0
±0.05
Circuit No.1
0.7
1.8
Odd number
circuits
1.9
Even number
circuits
Contact
point
4.4
Reverse type
5.1
0.6
1.0
±0.05
Circuit No.1
0.6
1.0
±0.05
Circuit No.1
2.0
±0.05
Circuit No.1
2.0
±0.05
Reverse type
0.65
0.6
1.9
1.2
1.0
±0.05
Reverse type
Circuit No.1
0.2
Even number
circuits
1.0
±0.05
0.75
±0.05
Circuit No.1
1.9
Side entry type
Normal type
Circuit No.1
2.0
±0.05
φ0.75
±0.05
1.8
0.7
0.7
1.2
0.6
1.0
±0.05
2.0
±0.05
Odd number
circuits
Even number
circuits
1.0
±0.05
Side entry type
1.8
Contact
point
3.0
0.2
5.1
1.2 1.2
1.7
1.8
5.1
Reverse type
2.0
±0.05
Contact
point
3.05
5.1
Even number
circuits
Odd number
circuits
Circuit No.1
2.0
±0.05
0.6
1.0
±0.05
Circuit No. 1
1.0
±0.05
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC
board and piercing method. The dimensions above
should serve as a guideline. Contact JST for details.
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. The dimensions above should serve as a guideline.
Contact JST for details.
1
1.2
2.65
1.7
3.0
φ0.75
±0.05
5.15
Odd number
circuits
1.7
About arm
