REVISION CH
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1. C REPRESENTS A CRITICAL DIMENSION.
2. PUSHOUT FORCE SHALL BE 1 LB. MIN.
3. GOLD AREA TO APPEAR ON POST.
4. TAILS TO BE SHEARED TO DIMENSION SHOWN.
(FOR HAND TOOLING ONLY)
5. TO BE VALID ALL PART NUMBERS MUST MEET THE
FOLLOWING PARAMETERS: THE BOARD SPACE
RANGE, POST HEIGHT MIN. AND BOARD + POST
COMBINATION FOR EACH STYLE.
6. MAX BURR: .003[.08] ON CUT TAIL.
7. MAX CUT FLASH TO BE .010[.25] ON CRITICAL
AREAS AS SHOWN.
8. AVAILABLE ONLY W/BOARD SPACE .215[5.46]
TOP .610[15.49].
9. PARTS TO BE ASSEMBLED WITH ALIGNMENT HOLES
(IN BODY) FACING THE TAILS
10. LOWER BODY MAY BE BLACK OR WHITE.
11. FILL BODY SO THAT THE LEAD IN OF THE CORE IS
ON THE TAIL SIDE.
PATENT NUMBERS
5713755 / 5961339
FW-XX-XX-XX-D-XXX-XXX-XX
POSITION SPEC
No. OF POS PER ROW
-02 THRU -50
LEAD STYLE
-03: USE T-1S15-XX-X
-05: USE T-1S15-XX-X
(SEE TABLE 1)
OPTION
-P: PICK & PLACE PAD (USE PPP-25)
(USE PPP-25-NT WITH -TR ONLY)
(SEE FIG. 3, SHT 2)(5 POS. MIN)
-TR: TAPE & REEL
.6875[17.46] MAX OVERALL HEIGHT AVAILABLE FOR
-TR. MAX OVERALL HEIGHT = POST + BOARDSPACE
+ PAD + ALIGNMENT PIN = .6875[17.46]
-ES: END SHROUDS (SEE FIG. 5, SHT 2)
(9 POS PER ROW MIN)
(MAX POST: .075[1.91])
(SEE NOTE 8)
-EP: GUIDE POST (FIG. 6, SHT 3)
(9 POS PER ROW MIN)
(MAX POST: .075[1.91])
(USE ONLY WHEN MATING WITH CLP)
(SEE NOTE 8)
-A: ALIGNMENT PIN (MOLDED OR STAKED, SAMTEC'S
DISCRETION ON WHICH)
(SEE FIG. 7 & 8 SHT 3)
(STAKED: 6 POS. MIN)(MOLDED: 3 POS. MIN)
(SEE NOTE 8)
POST HEIGHT
(SEE NOTE 5)
.065[1.65] MIN
POST + BOARD SPACE = "F" =
-03: .150-.400 [3.81-10.16]
-05: .401-.675 [10.19-17.15]
BOARD SPACE OPTION
(SEE NOTE 5)
SEE TABLE 1
-03 LEAD STYLE (.085[2.16 MIN - .335[8.51] MAX)
-05 LEAD STYLE (.248[6.30] MIN - .610[15.49] MAX)
MAX = "A" - POST (SEE TABLE 1)
-G: GOLD, 10 Au / 50 Ni MIN ON CONTACT,
3 Au / 50 Ni MIN ON TAIL
-F: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
-H: HEAVY GOLD, 30 Au / 50 Ni MIN ON
CONTACT, 3 Au / 50 Ni MIN ON TAIL
-LM: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
-FM: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL

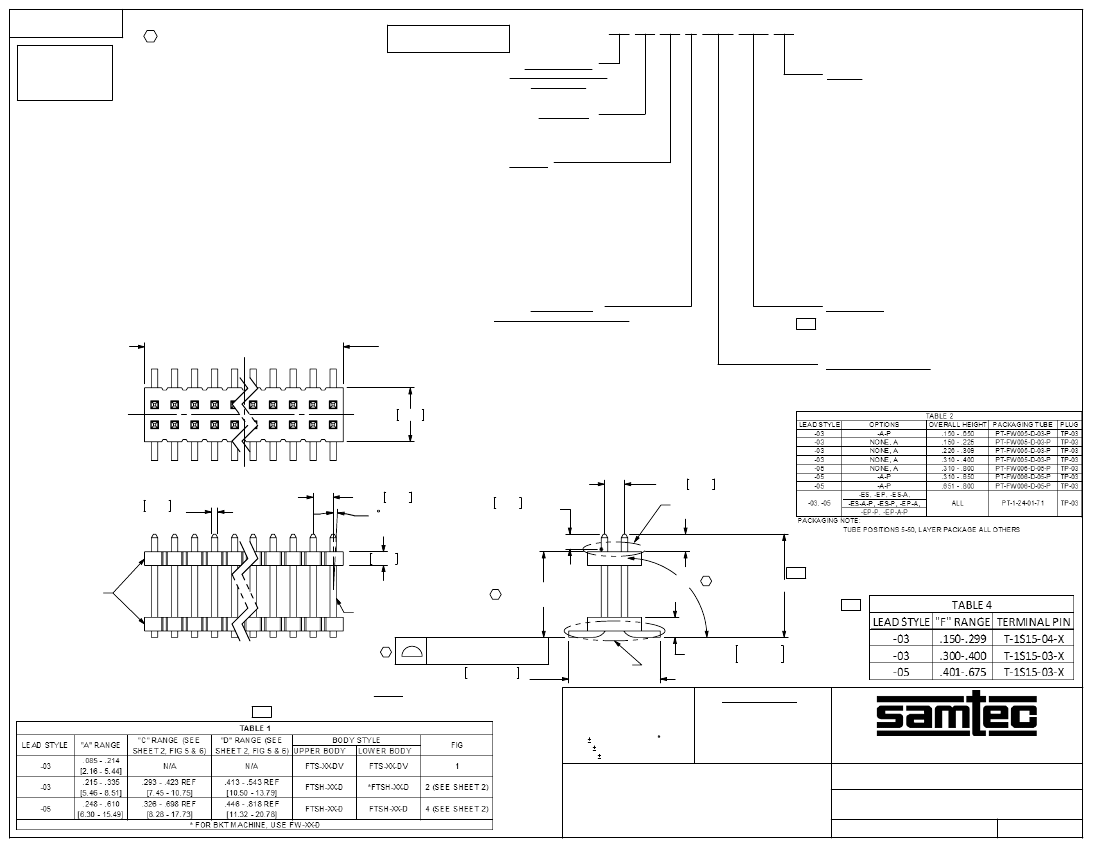

DOUBLE ROW
(SEE TABLE 1 FOR BODY STYLE)
PLATING
CH
02
C
L
50
(NO OF POSITIONS X .050[1.27]) ±.010[0.25]
C .135 3.43 REF
L
01
.016 0.41
SQ REF (TYP)
49
.070 1.78 REF
2 MAX SWAY
(CONTACT AREA)
(EITHER DIRECTION)
.034 0.86 REF
.050 1.27 REF
.050 1.27 REF
SEE NOTE 7
POST HEIGHT
90°±4°
C
FTS-XX-DV
T-1S15-XX-X
C
C
"A" ±.005[0.13]
(BOARD SPACE)
CH
"F"
CH
02-30POS. = .004[.010]
31-50 POS. = .006[0.15]
.229±.010 5.82±0.25
(SEE NOTE 4)
SEE NOTE 7
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.050
- .000
1.27
+.005
+0.13
0.00
FIG 1
CH
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
5
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
BODY: LCP, UL 94 VO, COLOR: FTS-50-DV & FTSH-50-D: BLACK
.050 x .050 SURFACE MOUNT BOARD SPACERS
FW-50-D: NATURAL
DWG. NO.
TERMINAL: PHOS BRONZE
MAX FLASH ALLOWED: .002[0.05]
MAX GATE VESTIGE: .002[0.05]
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
FW-XX-XX-XX-D-XXX-XXX-XX
F:\DWG\MISC\MKTG\FW-XX-XX-XX-D-XXX-XXX-XX-MKT.SLDDRW
BY:
BRATCHER 11-03-1994
SHEET
1
OF
3
REVISION CH
.065 1.65
MIN
.099 2.51
REF (TYP)
IN-PROCESS 1
FTSH-XX-D
IN-PROCESS 2
.248[6.30] - .610[15.49]
.065 1.65
MIN
.099 2.51
REF (TYP)
CH
"F"
+.005
IN-PROCESS 3
.248[6.30] - .610[15.49]
.065 1.65
MIN
CH
.099 2.51
REF (TYP)
"F"
BOARD SPACE - .050[1.27]
.149
- .000
3.78
.125±.010 3.18±0.25
(SEE NOTE 4)
FTSH-XX-D
T-1S15-03-X
NOTE: SHEAR TAILS TO DIM SHOWN.
(IN-PROCESS 1 MAY BE BUILT WITH M30 MACHINE)
DIFFERENT AS SHOWN, OTHERWISE THE SAME AS FIG. 1
.215[5.46] - .335[8.51]
.065 1.65
MIN
CH
.099 2.51
REF (TYP)
"F"
T-1S15-03-X
FW-XX-D
.115
- .000
2.92
+.005
+0.13
0.00
+0.13
0.00
.115
- .000
2.92
C
+.005
+0.13
0.00
.229±.010 5.82±0.25
.229±.010 5.82±0.25
FIG 4
No OF POSITIONS x .050[1.27] + .101[2.57] 34.32 ±.008[.20]
.188 4.78 REF
FTSH-XX-D
.265 6.73 REF (TYP)
.168 4.27
REF
"C"
ES-FTSH
(BKT MACHINE)
DIFFERENT AS SHOWN, OTHERWISE THE SAME AS FIG. 1

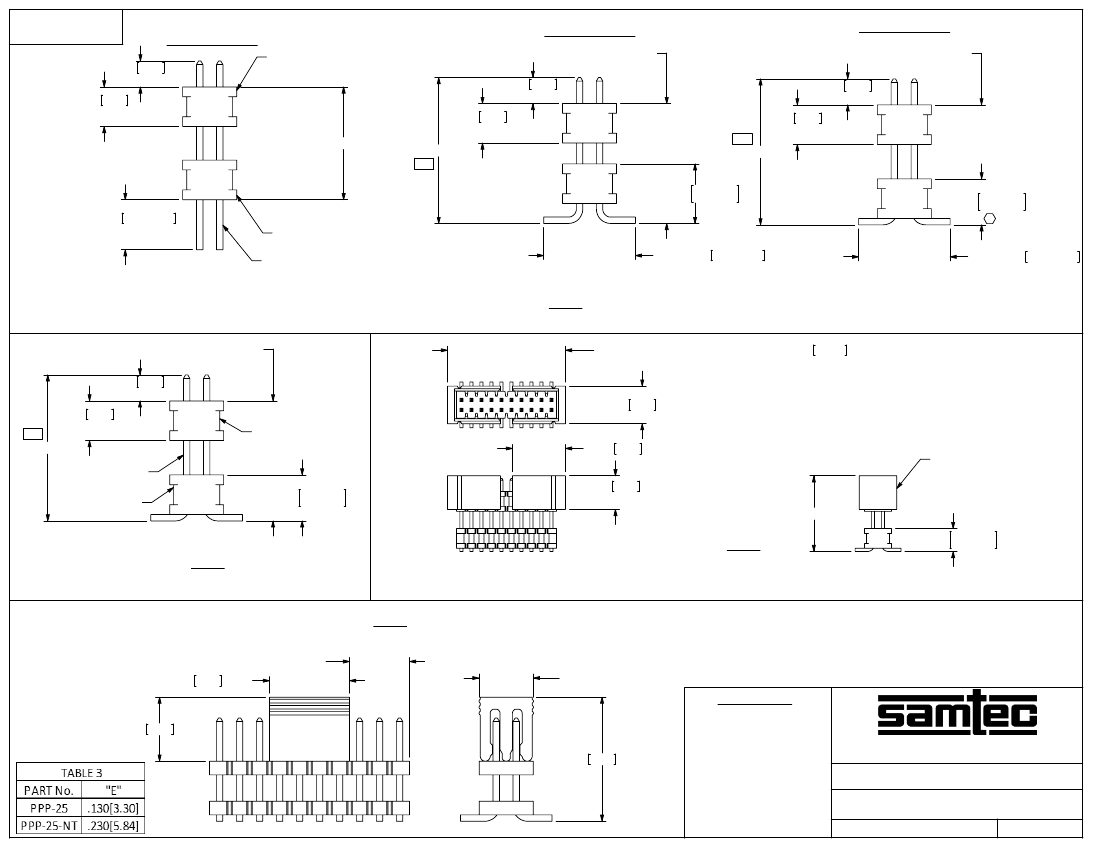

FIG 2
SCALE 2:1
-ES OPTION
DIFFERENT AS SHOWN, OTHERWISE THE SAME AS FIG. 1
9 POSITION MINIMUM (SEE NOTE 8)
FIG 5
.115
- .000
2.92
+.005
+0.13
0.00
(PICK AND PLACE PAD)
(5 POSITION MINIMUM)
((NO OF POS X .025[.635] - .100[2.54])±.010[.25]
.200 5.08 REF
SHOWN WITH LEAD STYLE -03
"E" REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 3

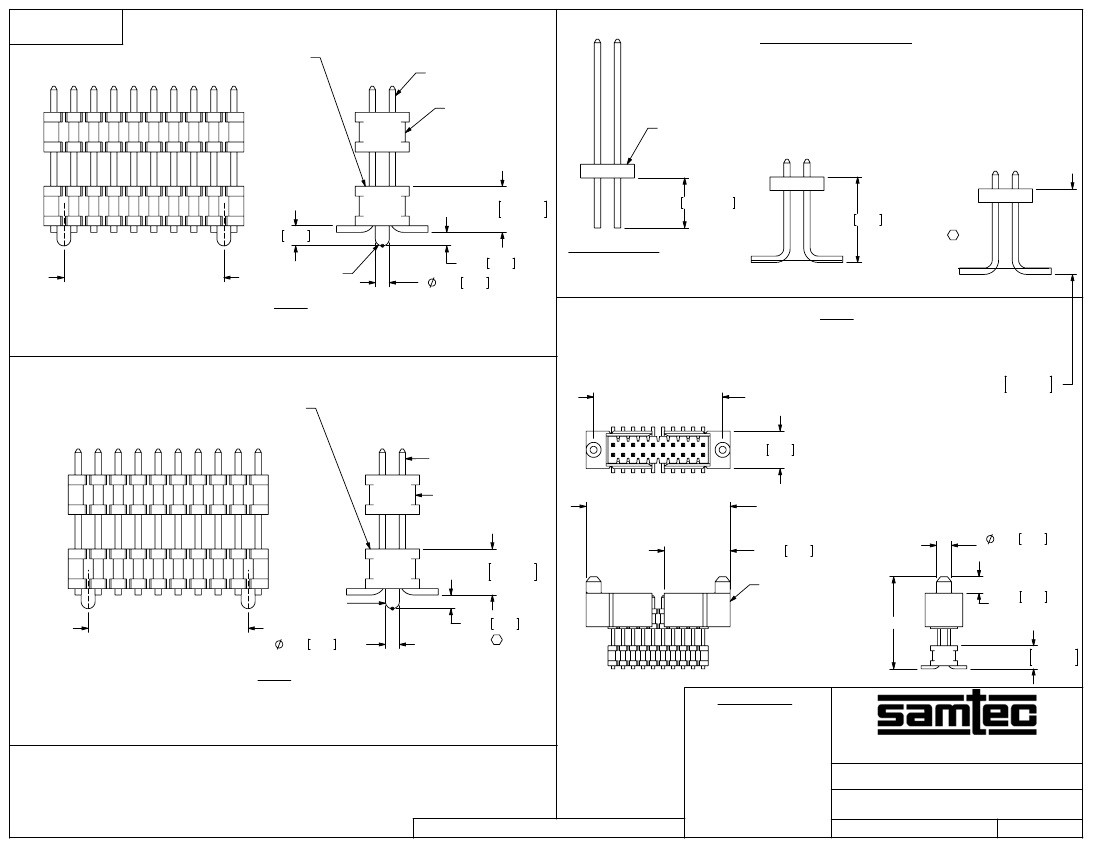

.160 4.06 REF
.317 8.05 REF
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.050 x .050 SURFACE MOUNT BOARD SPACERS
FW-XX-XX-XX-D-XXX-XXX-XX
SHEET
2
OF
3
F:\DWG\MISC\MKTG\FW-XX-XX-XX-D-XXX-XXX-XX-MKT.SLDDRW
BY:
BRATCHER 11-03-1994
REVISION CH
FTSH-50-D
(HAND TOOL & M30 MACHINE FW-50-D)
FW-50-D-XX
(BKT MACHINE)
IN-PROCESS FOR FIG. 1
(FOR HAND FILL ONLY)
T-1S15-03-X
FTSH-50-D
FTS-XX-DV
.115
- .000
2.92
.050 1.27 REF
FULL RADIUS
.034 0.86
.035 0.89
+.005
+0.13
0.00
.125±.010 3.18±0.25
.214 5.44
IN-PROCESS 1
(SEE NOTE 4)
C
IN-PROCESS 2
IN-PROCESS 3
(No OF POS-2) x .050[1.27]
-A OPTION (MOLDED)
MOLD 3 POSITION MIN
DIFFERENT AS SHOWN OTHERWISE SAME AS FIG. 1
FIG 7
FTSH-50-D
(HAND TOOL & M30 MACHINE FW-50-D)
FW-50-D-XX
(BKT MACHINE)
T-1S15-03-X
FTSH-50-D
-EP OPTION
USE ONLY WHEN MATING TO CLP
(9 POSITION MIN)
(SEE NOTE 8)
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1
+.005
+0.13
.214
- .000
5.44
0.00
(No OF POSITIONS x .050[1.27] + .156[3.96])±.008[.20]
FIG 6
.188 4.78 REF
(No OF POSITIONS x .050[1.27] + .231[5.87]])±.008[.20]
.075 1.91
REF (TYP)
.330 8.38 REF (TYP)
.115
- .000
2.92
SM-A9H
(No OF FINISHED POS
PER ROW - 2) x.050[1.27]
.034 0.86 REF
.035 0.89 REF
C
+.005
+0.13
0.00
FTSH-EP
"D"
.082 2.08
REF (TYP)
-A OPTION (STAKED)
6 POSITION MIN
DIFFERENT AS SHOWN OTHERWISE SAME AS FIG. 1
FIG 8
.115
- .000
2.92
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
+.005
+0.13
0.00
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.050 x .050 SURFACE MOUNT BOARD SPACERS
FW-XX-XX-XX-D-XXX-XXX-XX
SHEET
3
OF
3
F:\DWG\MISC\MKTG\FW-XX-XX-XX-D-XXX-XXX-XX-MKT.SLDDRW
BY:
BRATCHER 11-03-1994
