747944-5 datasheet, PDF - EEWORLD Datasheet

747944-5: Descriptionconn D-sub plug 9pos 22-26awg AU; CategoryThe connector; File Size135KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

747944-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	747944-5	-	-	View	Buy Now

conn D-sub plug 9pos 22-26awg AU

Parameter Name	Attribute value
Datasheets

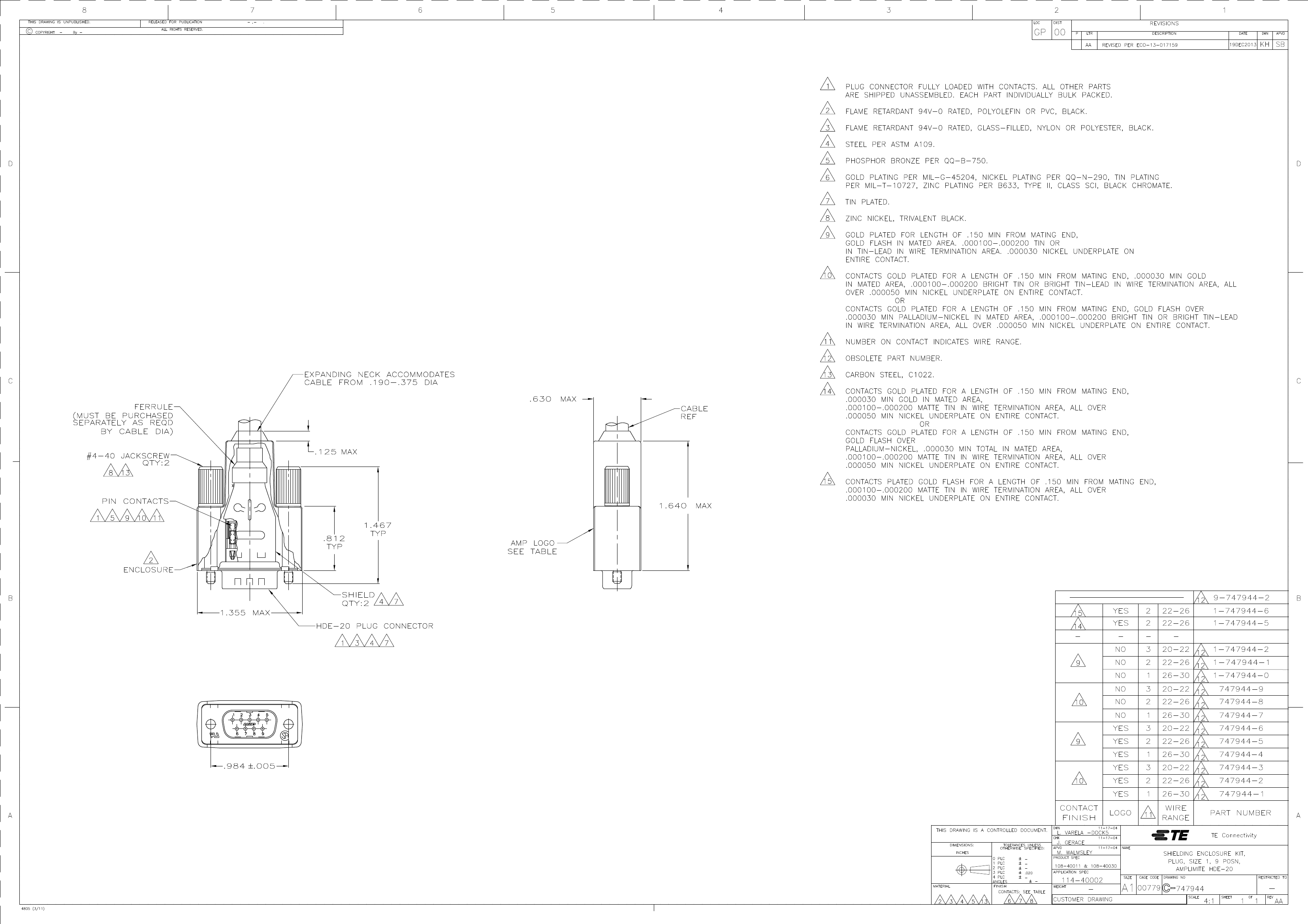

747944 Drawing
Standard Package	100
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Bulk
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layou	1 (DE, E)
Contact Type	Signal
Mounting Type	Free Hanging (In-Line)
Flange Feature	Cable Side
Male Jackscrew (4-40)
Terminati	IDC, Discrete Wire
Features	Backshell, Grounding Indents, Shielded
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	250V
Current Rating	Varies by Wire Gauge
Housing Material	-
Col	Black
Other Names	A23527

	747944-5	1-747944-5	1-747944-6	747944-2
Description	conn D-sub plug 9pos 22-26awg AU	conn D-sub plug 9P 22-26awg gold	conn D-sub plug 9pos 22-26awg AU	conn D-sub plug 9pos 22-26awg AU
Standard Package	100	1	1	100
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Bulk	Bulk	Bulk	Bulk
Connector Style	D-Sub	D-Sub	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins
Number of Positions	9	9	9	9
Number of Rows	2	2	2	2
Shell Size, Connector Layou	1 (DE, E)	1 (DE, E)	1 (DE, E)	1 (DE, E)
Contact Type	Signal	Signal	Signal	Signal
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Flange Feature	Cable Side	Cable Side	Cable Side	Cable Side
Terminati	IDC, Discrete Wire	IDC, Discrete Wire	IDC, Discrete Wire	IDC, Discrete Wire
Features	Backshell, Grounding Indents, Shielded	Backshell, Grounding Indents, Shielded	Backshell, Grounding Indents, Shielded	Backshell, Grounding Indents, Shielded
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	Flash	Flash	Flash	Flash
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	250V	250V	250V	250V
Current Rating	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge
Col	Black	Black	Black	Black
Other Names	A23527	17479445A31512	17479446A31513	A23526
