Datasheet> All Categories > The connector> 747842-3

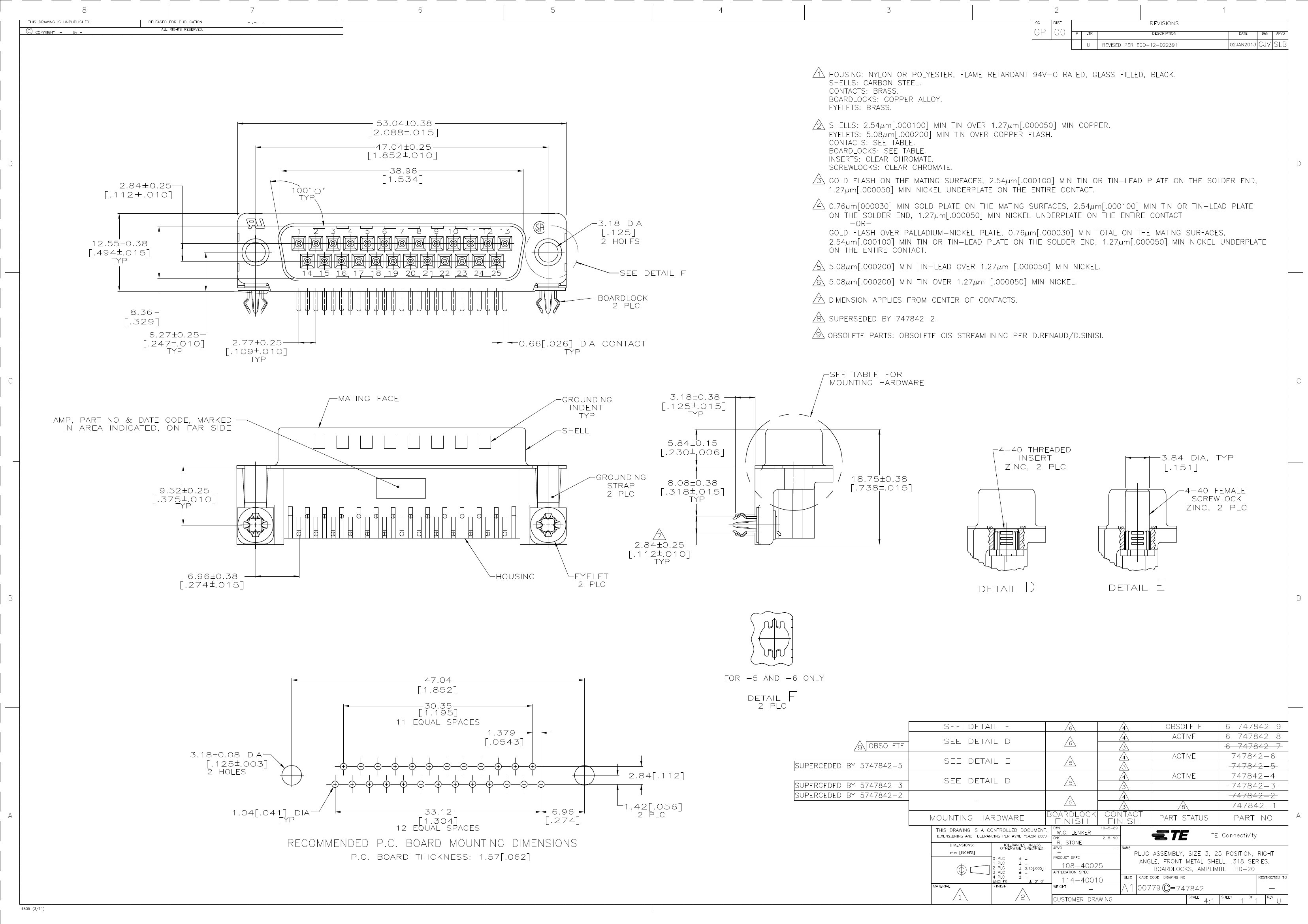

Preview

747842-3: Descriptionconn D-sub plug R/A 25pos pcb AU; CategoryThe connector; File Size179KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

747842-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	747842-3	-	-	View	Buy Now

747842-3 Overview

conn D-sub plug R/A 25pos pcb AU

747842-3 Parametric

Parameter Name	Attribute value
Datasheets
747842
Product Photos
(5)747842-3
3D Model
747842-3.pdf
Standard Package	65
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tray
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	25
Number of Rows	2
Shell Size, Connector Layou	3 (DB, B)
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Flange Feature	Housing/Shell (4-40)
Terminati	Solde
Features	Board Lock, Ground Strap, Grounding Indents
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	125V
Current Rating	6A
Housing Material	Thermoplastic
Col	Black
Other Names	A23284

Preview

Download Datasheet

View All

747842-3 Related Products

	747842-3	747842-4	747842-2	747842-6	747842-5
Description	conn D-sub plug R/A 25pos pcb AU	conn D-sub plug R/A 25pos pcb AU	conn D-sub plug R/A 25pos pcb AU	conn D-sub plug R/A 25pos pcb AU	conn D-sub plug R/A 25pos pcb AU
Standard Package	65	65	65	650	65
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Tray	Tray	Tray	Tray	Tray
Connector Style	D-Sub	D-Sub	D-Sub	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins
Number of Positions	25	25	25	25	25
Number of Rows	2	2	2	2	2
Shell Size, Connector Layou	3 (DB, B)	3 (DB, B)	3 (DB, B)	3 (DB, B)	3 (DB, B)
Contact Type	Signal	Signal	Signal	Signal	Signal
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Flange Feature	Housing/Shell (4-40)	Housing/Shell (4-40)	Housing/Shell (Unthreaded)	Mating Side	Mating Side
Terminati	Solde	Solde	Solde	Solde	Solde
Features	Board Lock, Ground Strap, Grounding Indents	Board Lock, Ground Strap, Grounding Indents	Board Lock, Ground Strap, Grounding Indents	Board Lock, Ground Strap, Grounding Indents	Board Lock, Ground Strap, Grounding Indents
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	Flash	Flash	Flash	Flash	Flash
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	125V	125V	125V	125V	125V
Current Rating	6A	6A	6A	6A	6A
Housing Material	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic
Col	Black	Black	Black	Black	Black
Other Names	A23284	7478424A23285	A23283	7478426A23287	A23286
Mating Products	-	5746861-2-ND - CONN RECEPT 25 POS GOLD IDC	AFL25B-ND - CONN D-SUB RECEPT 25POS 30 GOLD	5746861-2-ND - CONN RECEPT 25 POS GOLD IDCAFL25B-ND - CONN D-SUB RECEPT 25POS 30 GOLD	-
