A-BL254-E-A-G-23-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> A-BL254-E-A-G-23-D

A-BL254-E-A-G-23-D: DescriptionBoard Connector, 23 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/; Environmental Compliance

Download Datasheet Parametric View All

A-BL254-E-A-G-23-D Overview

Board Connector, 23 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug

A-BL254-E-A-G-23-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1159634304
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Taiwan
ECCN code	EAR99
YTEOL	9.1
body width	0.095 inch
subject depth	0.41 inch
body length	2.32 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	POLYESTER
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL,VDE
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	23

Preview

Download Datasheet

View All

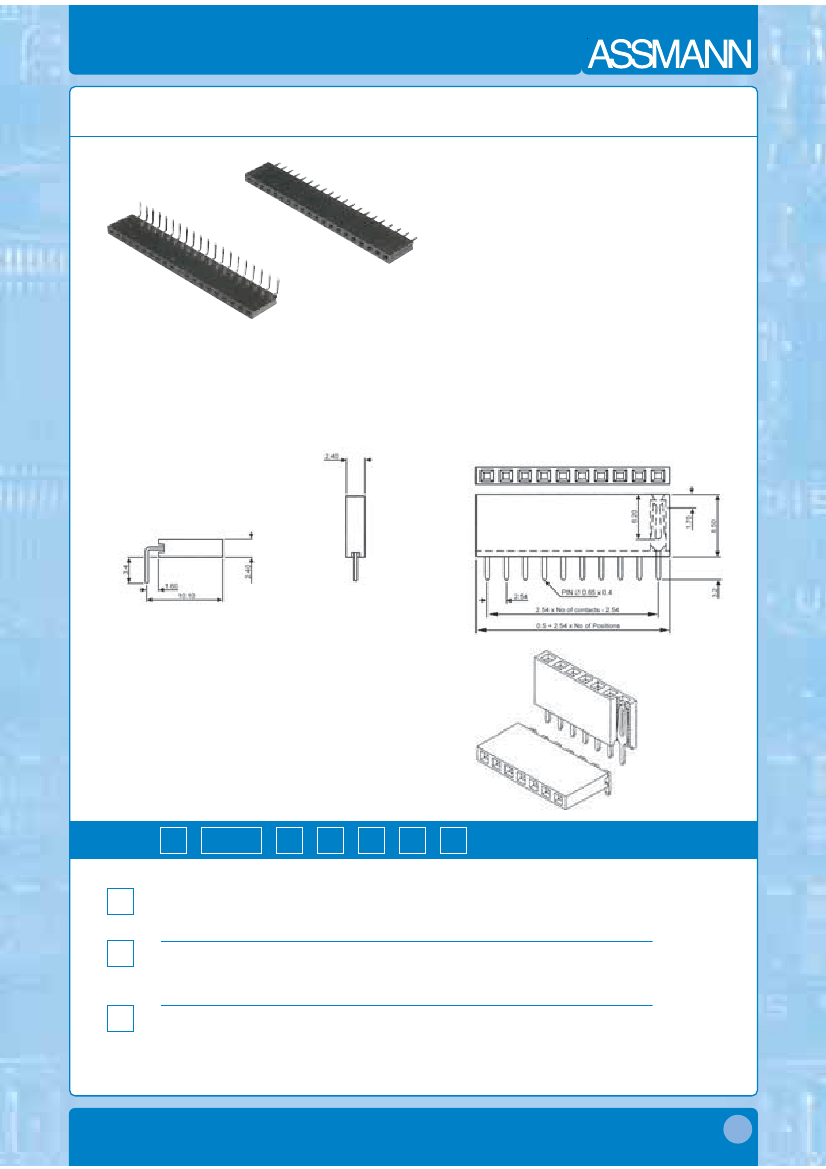

FEMALE HEADER

Buchsenleisten, Raster 2.54,

Einreihig

Female Header, Pitch 2.54,

Single Row

Isolierkörper

Polyester, UL 94V-0

Kontakte

Phosphor Bronze

Strombelastbarkeit

Isolationswiderstand

min 5000 MΩ

Kontaktwiderstand

max. 20 mΩ

Spannungsfestigkeit

500 V AC

Betriebstemperatur

-40°C bis +105°C

Insulator

Polyester, UL 94V-0

Contacts

Phosphor Bronze

Current rating

Insulation resistance

min 5000 MΩ

Contact resistance

max. 20 mΩ

Tensile strength

500 V AC

Operating temperature

-40°C bis +105°C

Bestellcode:

Ordercode :

A - BL254 - E - x - x - x - D

Version

-straight

-right angled

Contact plating

-gold flash *

-tinned

-selective

Bitte „x“ durch die unten geeignete Option ersetzen

Please replace „x“ with appropriate option listed below

Ausführung

-gerade

-abgewinkelt

Oberfläche

-flash vergoldet *

-verzinnt

-selektiv

Polzahl

02 - 40

Number of contacts

02 - 40

* Standard
