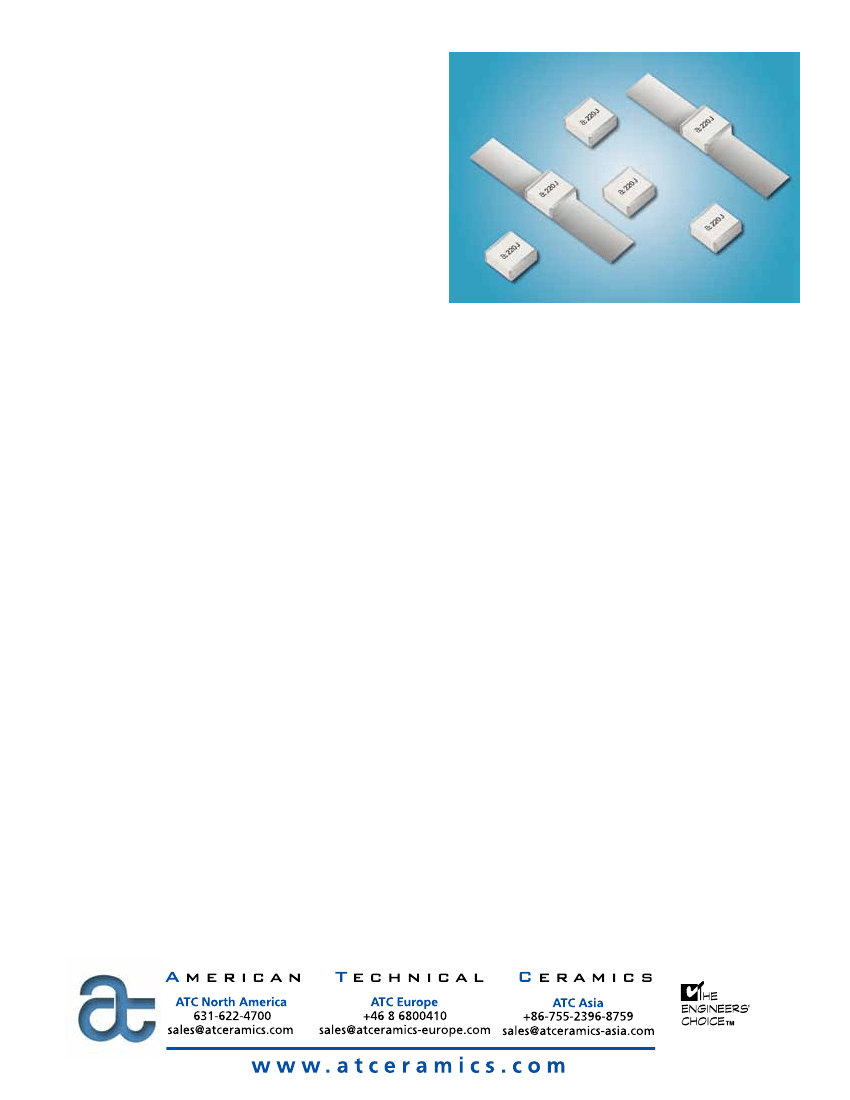

Typical circuit applications: HF/RF Power Amplifiers, Transmitters, Antenna
Tuning, Plasma Chambers and Medical (MRI coils).
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
QUALITY FACTOR (Q):
Greater than 5,000 (3.3 pF to 1000 pF) @ 1 MHz.
Greater than 5,000 (1100 pF to 5100 pF) @ 1 KHz.
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
0 ±30 PPM/°C (-55°C to +125°C)
INSULATION RESISTANCE (IR):
10
5
Megohms min. @ +25°C at rated WVDC
10
4
Megohms min. @ +125°C at rated WVDC
Max. test voltage is 500 VDC.
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, page 2
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
150% of WVDC for capacitors rated above 500 volts DC and
≤1250
volts
DC for 5 seconds.
120% of WVDC for capacitors rated above 1250 volts DC for 5 seconds..
ENVIRONMENTAL TESTS
ATC 800 E Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681 and
MIL-PRF-123.
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A
MOISTURE RESISTANCE:
MIL-STD-202, Method 106
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied while
subjected to an environment of 85°C with 85% relative humidity for 240
hours min.
LIFE TEST:
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater
AGING EFFECTS:
None
PIEzOELECTRIC EFFECTS:
None
(No capacitance variation with voltage or pressure)
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is greater
OPERATING TEMPERATURE RANGE:
From -55°C to +125°C
TERMINATION STYLE:
See Mechanical Configurations, page 3
TERMINAL STRENGTH:
Terminations for chips withstand a pull of 10 lbs.
min., 25 lbs. typical, for 5 seconds in direction perpendicular to the
termination surface of the capacitor. Test per MIL-STD-202, method 211.
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
Voltage applied.
120% of WVDC for capacitors rated at 1250 volts DC or less.
100% of WVDC for capacitors rated above 1250 volts DC
ISO 9001
REGISTERED
COMPANY
ATC # 001-1077 Rev. I, 10/12
ATC 800 E Capacitance Values
CAP.
CODE
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
200
220
240
270
300
330
CAP.
(pF)
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
TOL.
RATED WVDC
CAP.
CODE
360
390
430
470
510
560
620
680
750
820
910
101
111
121
131
151
161
181
201
221
241
271
301
331
361
CAP.
(pF)
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
220
240
270
300
330
360
TOL.
RATED WVDC
CAP.
CODE
391
431
471
511
561
621
681
751
821
911
102
112
122
132
152
162
182
202
222
242
272
302
332
392
472
512
CAP.
(pF)
390
430
470
510
560
620
680
750
820
910
1000
1100
1200
1300
1500
1600
1800
2000
2200
2400
2700
3000
3300
3900
4700
5100
TOL.
RATED WVDC
3600
B, C, D
7200
F, G, J, K
2500
7200
F, G, J, K
F, G, J, K
3600
1500
G, J, K
1000
J
B
C
D
F
G
K
Code
Tol.
±0.1 pF ±0.25 pF ±0.5 pF ±1% ±2% ±5% ±10%
CAPACITANCE TOLERANCE
ATC PART NUMBER CODE
ATC800 E 22 0
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
Termination Code
J TN 7200 X
C
Packaging
C - ATC Matrix Tray (Standard)
T - Tape and Reel, 250 pc. qty.
I - Special Packaging (Consult Factory)
Laser Marking
WVDC
The above part number refers to a 800 E Series (case size E) 22 pF capacitor,
J tolerance (±5%), 7200 WVDC, with TN termination (Tin Plated over Non-Magnetic Barrier Termination), laser marking and plastic Matrix Tray packaging.
ATC accepts orders for our parts using designations
with
or
without
the
“ATC” prefix. Both methods of defining the part number are equivalent, i.e.,
part numbers referenced with the “ATC” prefix are interchangeable to parts
referenced without the “ATC” prefix. Customers are free to use either in
specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (631) 622-4700.
Consult factory for additional performance data.
C E R A M I C S
ATC North America
631-622-4700
•
sales@atceramics.com
A M E R I C A N
ATC Europe
+46 8 6830410
•
sales@atceramics-europe.com
T E C H N I C A L
ATC Asia
86-755-2396-8759
•
sales@atceramics-asia.com
2
w w w . a t c e r a m i c s . c o m
ATC 800 E Capacitors: Mechanical Configurations
ATC
SERIES
& CASE
SIZE
ATC
CASE SIZE
TERM. & TYPECASE SIZE
CODE
& TYPE
OUTLINES
W/T IS A
TERMINATION SURFACE
BODY DIMENSIONS
INCHES (mm)
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
LENGTH
(L)
.380
+.015 -.010
(9.65
+0.38
-0.25)
TL
WIDTH
(W)
THICKNESS
(T)
MATERIALS
Y
800 E
T
E
Solderable Nickel
Barrier
E
W
L
T
.040 (1.02)
max.
Tin Plated over
Nickel Barrier Termination
RoHS Compliant
LL
WL
W
L
800 E
MS
Microstrip
E
T
LL
WL
W
L
TL
800 E
AR
Axial Ribbon
.380
+.035 -.010
(9.65
+0.89
-0.25)
.380
+.015 -.010
(9.65
+0.38 -0.25)
.190 (4.83)
max.
N/A.
High Purity
Silver Leads
LL = .750 (19.05) min.
WL = .350 ±.010
(8.89 ±0.25)
TL = .010 ±.005
(0.25 ±0.13)
Leads are Attached with
High Temperature Solder
T
ATC 800 E Non-Magnetic Capacitors: Mechanical Configurations
ATC
SERIES
& CASE
SIZE
ATC
TERM.
CODE
CASE SIZE
& TYPE
OUTLINES
W/T IS A
TERMINATION SURFACE
LENGTH
(L)
.380
+.015 -.010
(9.65
+0.38
-0.25)
TL
BODY DIMENSIONS
INCHES (mm)
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
WIDTH
(W)
THICKNESS
(T)
MATERIALS
Y
800 E
TN
E
Non-Mag
Solderable Barrier
E
L
W
T
.040 (1.02)
max.
RoHS Compliant
Tin Plated over
Non-Magnetic
Barrier Termination
LL
WL
W
L
800 E
MN
Non-Mag Microstrip
E
T
LL
TL
800 E
AN
Non-Mag
Axial Ribbon
WL
L
W
T
.380
+.035 -.010
(9.65
+0.89
-0.25)
.380
+.015 -.010
(9.65
+0.38 -0.25)
.190 (4.83)
max.
N/A.
High Purity
Silver Leads
LL = .750 (19.05) min.
WL = .350 ±.010
(8.89 ±0.25)
TL = .010 ±.005
(0.25 ±0.13)
Leads are Attached with
High Temperature Solder.
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
ATC North America
631-622-4700
•
sales@atceramics.com
A M E R I C A N
ATC Europe
+46 8 6830410
•
sales@atceramics-europe.com
T E C H N I C A L
ATC Asia
86-755-2396-8759
•
sales@atceramics-asia.com
C E R A M I C S
w w w . a t c e r a m i c s . c o m
3

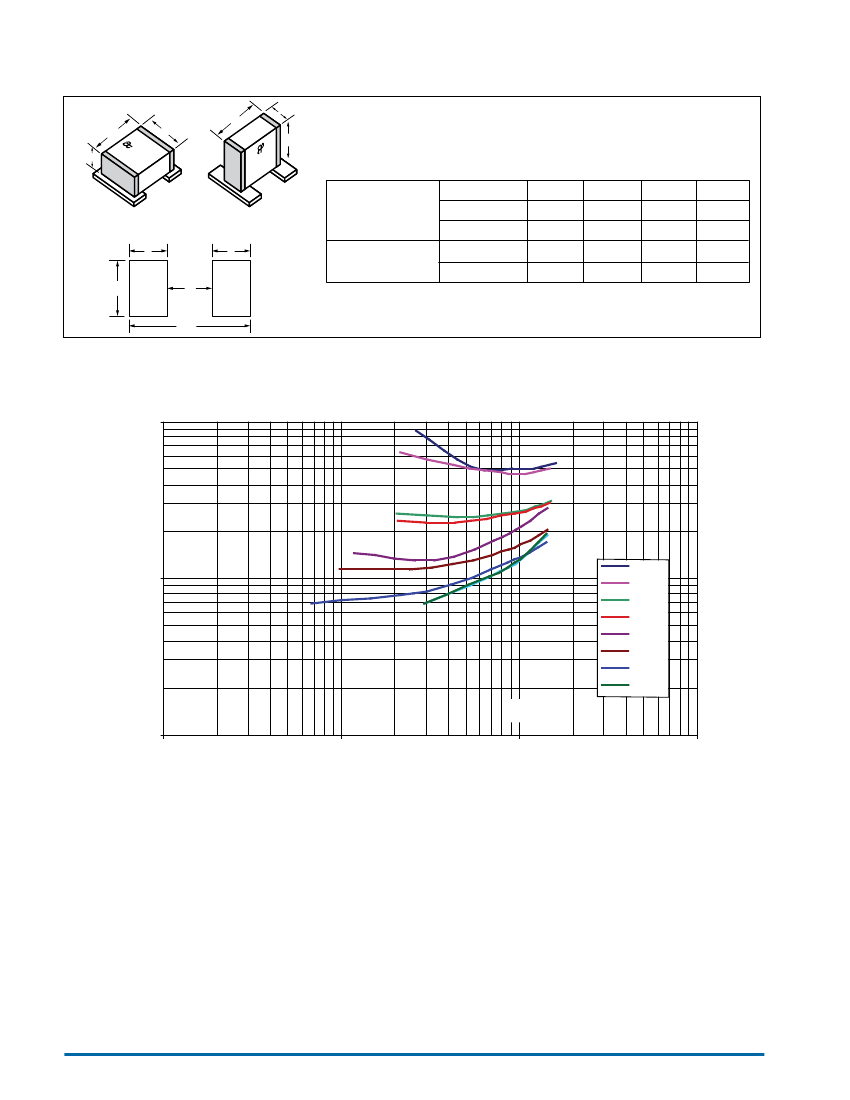

ATC 800 E Capacitors: Suggested Mounting Pad Dimensions
L
L
J
0
2
2
T
W
W
T
220J
Case E
Pad Size
A Min.
.205
.185
.405
.385
B Min.
.050
.030
.050
.030
C Min.
.325
.325
.325
.325
D Min.
.425
.385
.425
.385
Normal
High Density
Normal
High Density
Horizontal
Electrode Orientation
B
Vertical
Electrode Orientation
B
Vertical Mount
Horizontal Mount
A
C
D
100
800 E ESR vs. Frequency
800E
ESR (MilliOhms)
10
10 pF
12 pF
39 pF
47 pF
ESR (MilliOhms)
220 pF
330 pF
750 pF
5100 pF
(Typical)
1
1
10
Frequency (MHz)
100
1000
Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale (ATC document
#001-992 Rev. B; 12/05). Copies of these terms and conditions will be provided upon request. They may also be viewed on ATC's website at www.atceramics.
com/productfinder/default.asp. Click on the link for Terms and Conditions of Sale.
ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements
of rights of third parties which may result from its use. ATC reserves the right to revise the content or modify its product without prior notice.
