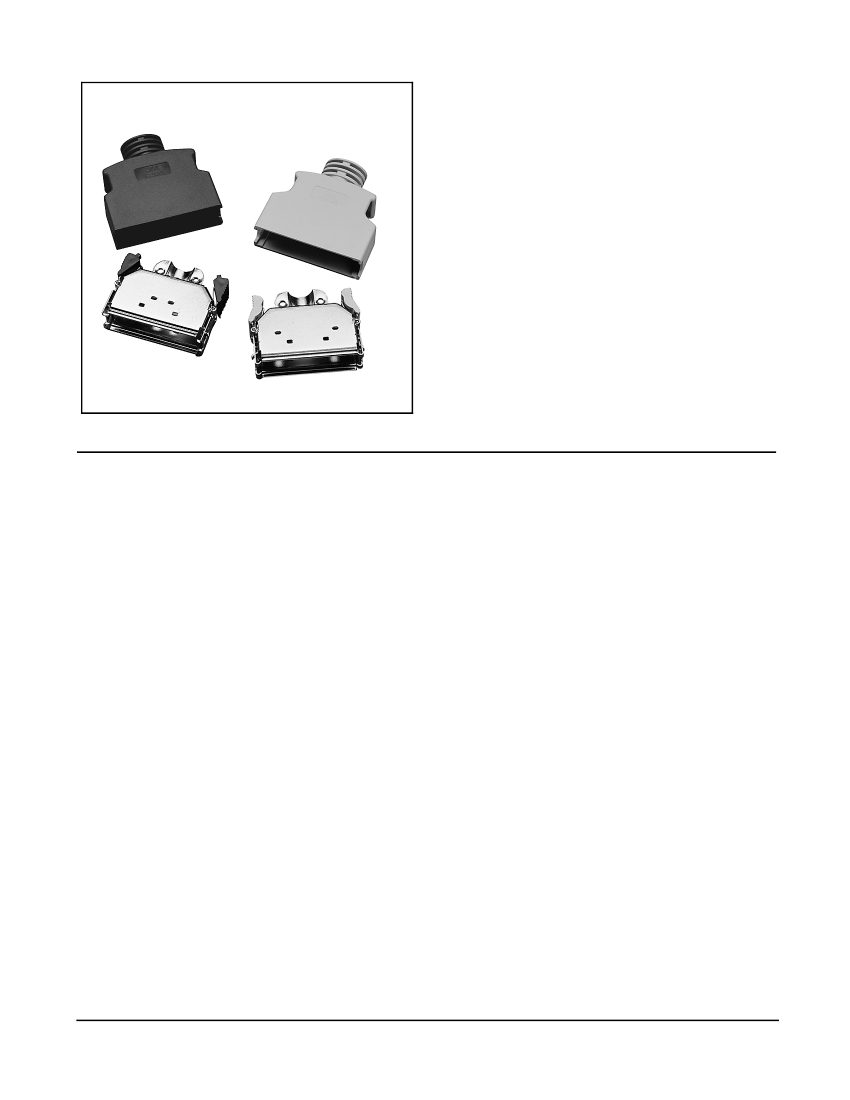

.050" Plastic Shielded Junction Shell for Round Cable
103 Series
• Durable one piece plastic over two piece metal
junction shell for straight round cable (compatible
with 101XX-6000 EC plug)
• Quick release latching
• MDR digital LCD Interface as a 20 or 26 contact
connector
• Contacts: 14, 20, 26, 36, 40, 50 and 68
• RoHS* compliant
Date Modified: January 31, 2006
TS-0571-07
Sheet 1 of 2
Physical
Outer Shell
Material: ABS
Flammability: UL 94V-0
Color: Beige, Medium Gray, and Black
Inner Shellt
Material: Steel, .020″ [ 0.5 mm ] Thick
Plating:
Nickel
Marking: 3M Logo and Part Number
"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or prolybromianted diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini D Ribbon (MDR) Connectors
.050" Plastic Shielded Junction Shell for Round Cable

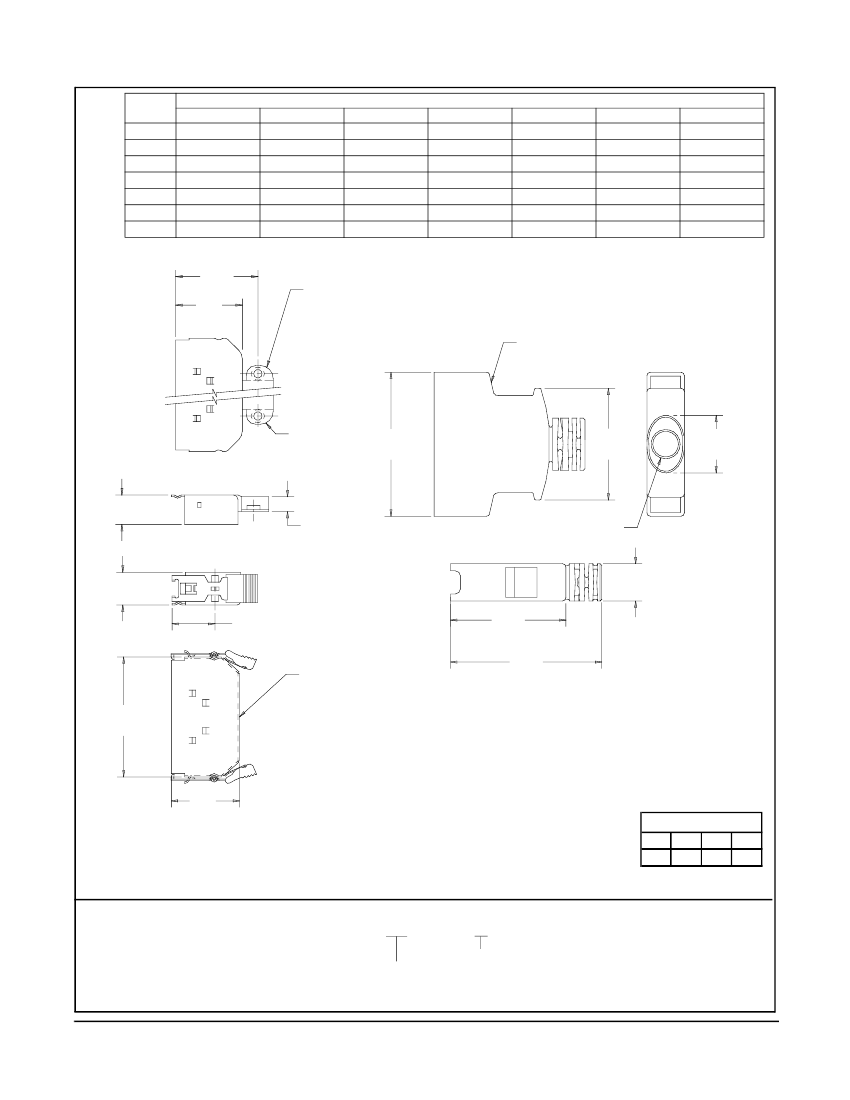

Contact
Quantity
Dimensions
A
B
C
D
E
F
G
103 Series
.57 [ 14.5 ]
.57 [ 14.5 ]
.57 [ 14.5 ]
.63 [ 16.0 ]
.63 [ 16.0 ]
.63 [ 16.0 ]
.71 [ 18.0 ]
.25 [ 6.3 ]
.26 [ 6.7 ]
.28 [ 7.1 ]
.32 [ 8.1 ]
.32 [ 8.2 ]
.34 [ 8.7 ]
.36 [ 9.1 ]
.67 [ 17.1 ]
.82 [ 20.9 ]
.97 [ 24.8 ]
1.22 [ 31.1 ]
1.32 [ 33.6 ]
1.57 [ 40.0 ]
2.02 [ 51.4 ]
14
20
26
36
40
50
68
.76 [ 19.4 ]
.91 [ 23.2 ]
1.06 [ 27.0 ]
1.31 [ 33.3 ]
1.41 [ 35.8 ]
1.66 [ 42.2 ]
2.11 [ 53.6 ]
1.15 [ 29.3 ]
1.15 [ 29.3 ]
1.15 [ 29.3 ]
1.01 [ 25.6 ]
.98 [ 24.8 ]
.98 [ 24.8 ]
.98 [ 24.8 ]
1.02 [ 25.9 ]
1.17 [ 29.7 ]
1.32 [ 33.5 ]
1.57 [ 39.8 ]
1.67 [ 42.4 ]
1.92 [ 48.7 ]
2.37 [ 60.1 ]
1.30 [ 33.0 ]
1.30 [ 33.0 ]
1.30 [ 33.0 ]
1.26 [ 32.0 ]
1.26 [ 32.0 ]
1.26 [ 32.0 ]
1.26 [ 32.0 ]
B
.81
[20.5]
Upper Half Metal
Inner Shell
Plastic Outer Shell
See Note 1
C
G
E
.36
[9.1]
.20
[5.1]
F Dia.
.40
[10.1]
.52
[13.2]
D
.45
[11.5]
Lower Half Metal
Inner Shell
A
1.65
[42.0]
.83
[21.1]
In c h
[m m ]
T o le ra n ce U n le s s N o te d
.0
.0 0
.0 0 0
Notes:
1. Part number includes a cable clamp and 2X M2.6 screws. These parts are not shown.
2. Panel thickness including washers must be less than 2.0 mm.
in c h
± .1
± .0 1 ± .0 0 5
[ ] D im e n sio n s fo r R e fe re n ce
O nly
Ordering Information
103XX-3210-00X
Contact Quantity
(See Table)
Color Code:
0 = Beige (Standard)
3 = Medium Gray (Special)
6 = Black (Special)
TS-0571-07
Sheet 2 of 2
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations
related to 3M’s products are based on information believed to be
reliable, but the accuracy or completeness is not guaranteed.
Before using this product, you must evaluate it and determine if it
is suitable for your intended application. You assume all risks and
liability associated with such use. Any statements related to the
product which are not contained in 3M’s current publications, or
any contrary statements contained on your purchase order shall
have no force or effect unless expressly agreed upon, in writing,
by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and
manufacture for a period of one (1) year from the time of
purchase.
3M MAKES NO OTHER WARRANTIES INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
If this product is defective within the warranty period
stated above, your exclusive remedy shall be, at 3M’s option, to
replace or repair the 3M product or refund the purchase price of
the 3M product.
Except where prohibited by law, 3M will not
be liable for any indirect, special, incidental or consequential
loss or damage arising from this 3M product, regardless of
