1040608017 Overview

0.5 ffc E/O dual contact housing

Parameter Name	Attribute value
Datasheets

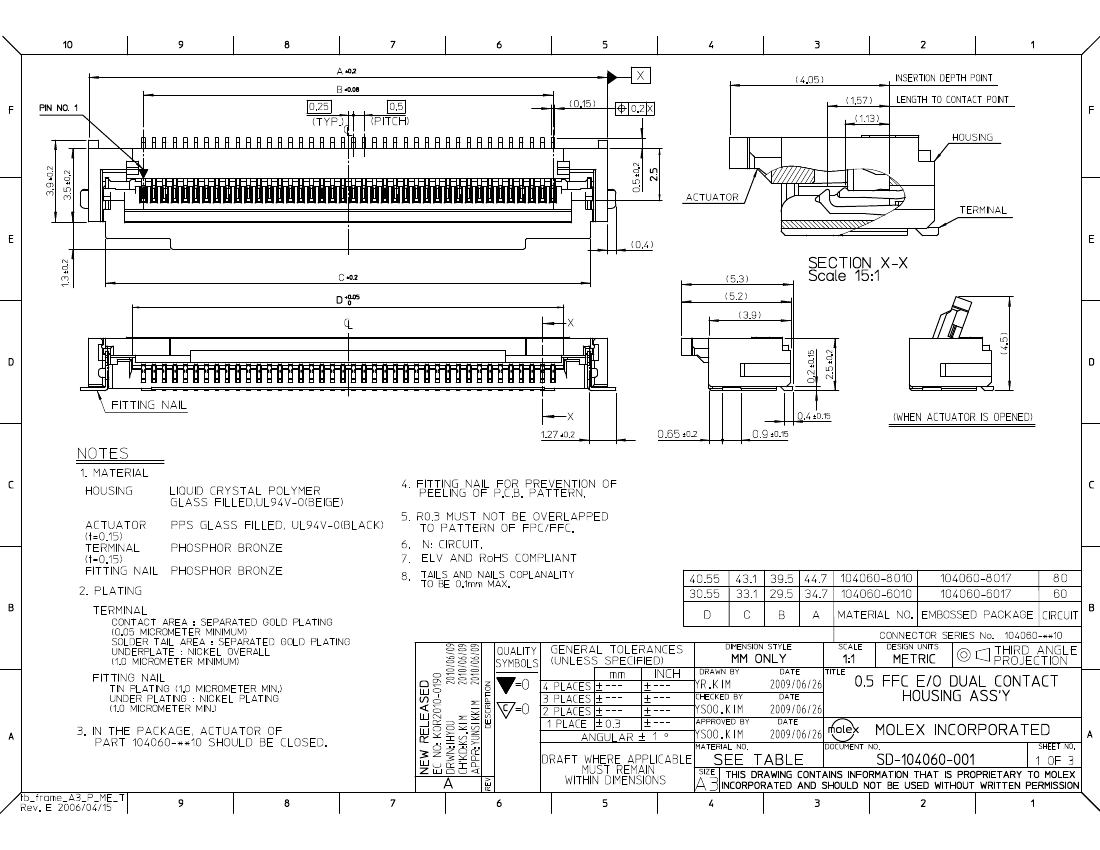

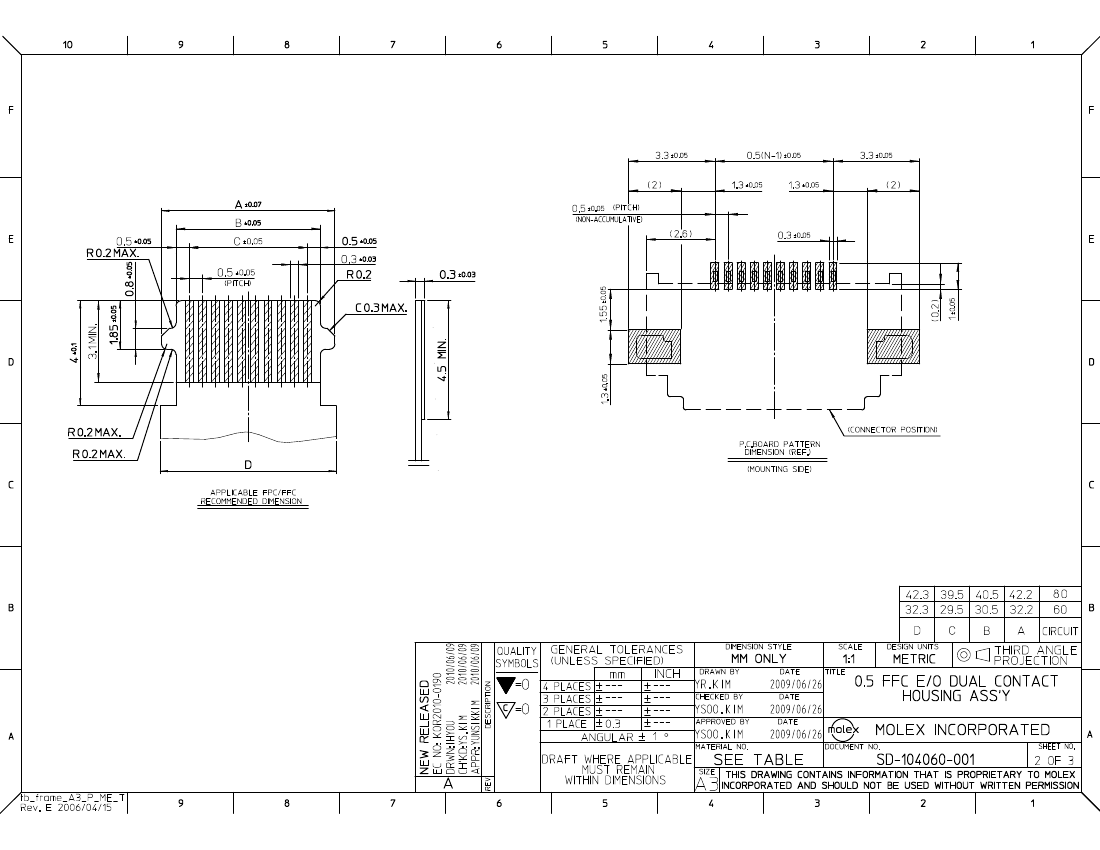

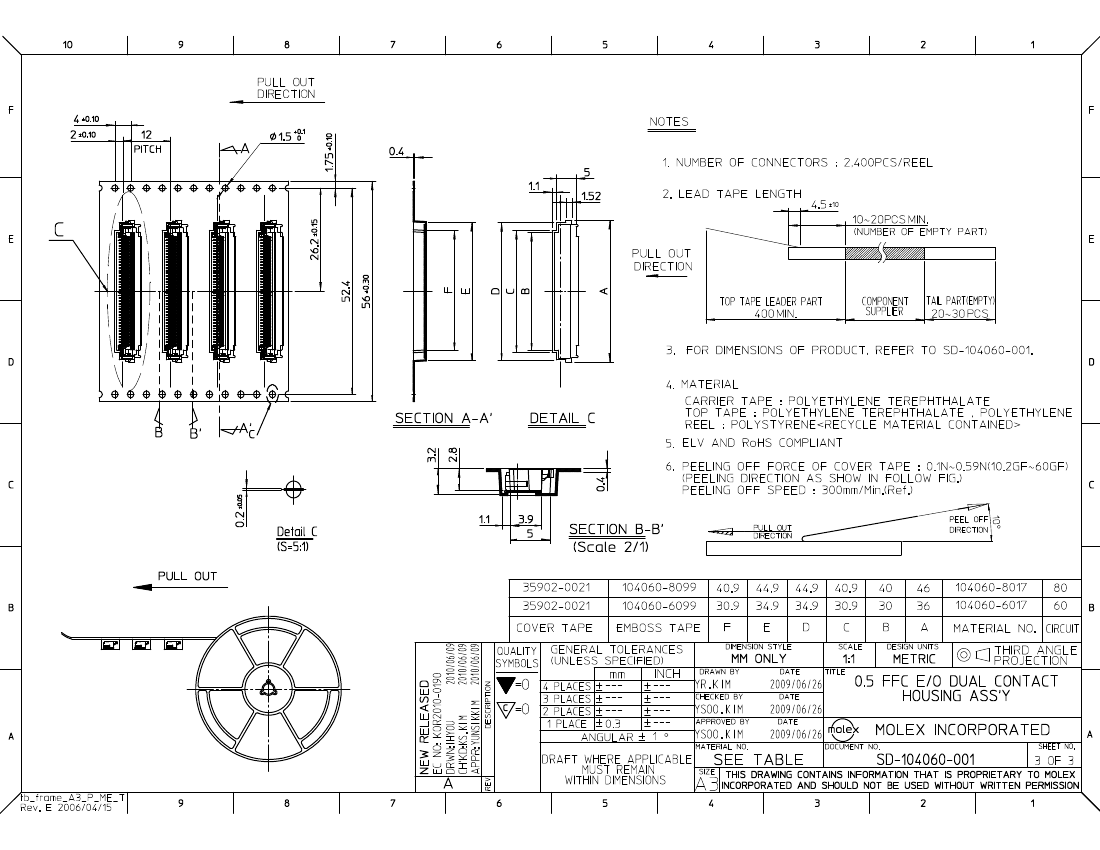

1040608017 Drawing
Standard Package	14,400
Category	Connectors, Interconnects
Family	FFC, FPC (Flat Flexible) Connectors
Packaging	Tape & Reel (TR)
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	80
Pitch	0.020" (0.50mm)
Terminati	Solde
FFC, FCB Thickness	0.30mm
Height Above Board	0.098" (2.50mm)
Locking Feature	Flip Lock
Cable End Type	Tabbed
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Operating Temperature	-20°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A per Contac
Other Names	104060-8017

	1040608017	1040606017
Description	0.5 ffc E/O dual contact housing	0.5 ffc E/O dual contact housing
Standard Package	14,400	14,400
Category	Connectors, Interconnects	Connectors, Interconnects
Family	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors
Packaging	Tape & Reel (TR)	Tape & Reel (TR)
Flat Flex Type	FFC, FPC	FFC, FPC
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom	Contacts, Top and Bottom
Number of Positions	80	60
Pitch	0.020" (0.50mm)	0.020" (0.50mm)
Terminati	Solde	Solde
FFC, FCB Thickness	0.30mm	0.30mm
Height Above Board	0.098" (2.50mm)	0.098" (2.50mm)
Locking Feature	Flip Lock	Flip Lock
Cable End Type	Tabbed	Tabbed
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Finish	Gold	Gold
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Features	Solder Retention, Zero Insertion Force (ZIF)	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V	50V
Operating Temperature	-20°C ~ 85°C	-20°C ~ 85°C
Material Flammability Rating	UL94 V-0	UL94 V-0
Current Rating	0.5A per Contac	0.5A per Contac
Other Names	104060-8017	104060-6017
