0514411693 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0514411693

0514411693: Descriptionconn fpc 16pos .5mm smd R/A zif; CategoryThe connector; File Size415KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0514411693 Overview

conn fpc 16pos .5mm smd R/A zif

0514411693 Parametric

Parameter Name	Attribute value
Datasheets
51441-1693
Product Photos
51441-1693-(C)
RoHS Informati
51441-1693 Cert of Compliance
3D Model
51441-1693.s
Standard Package	3,000
Category	Connectors, Interconnects
Family	FFC, FPC (Flat Flexible) Connectors
Packaging	Tape & Reel (TR)
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	16
Pitch	0.020" (0.50mm)
Terminati	Solde
FFC, FCB Thickness	0.30mm
Height Above Board	0.044" (1.10mm)
Locking Feature	Flip Lock
Cable End Type	Straight, Tapered
Contact Material	Phosphor Bronze
Contact Finish	Tin Bismuth
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Operating Temperature	-20°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Dynamic Catalog	Easy-On™ 51441 Series
Other Names	051441-16930514411693-C51441-164151441-169351441-1693-ND514411693514411693-CWM6476TR

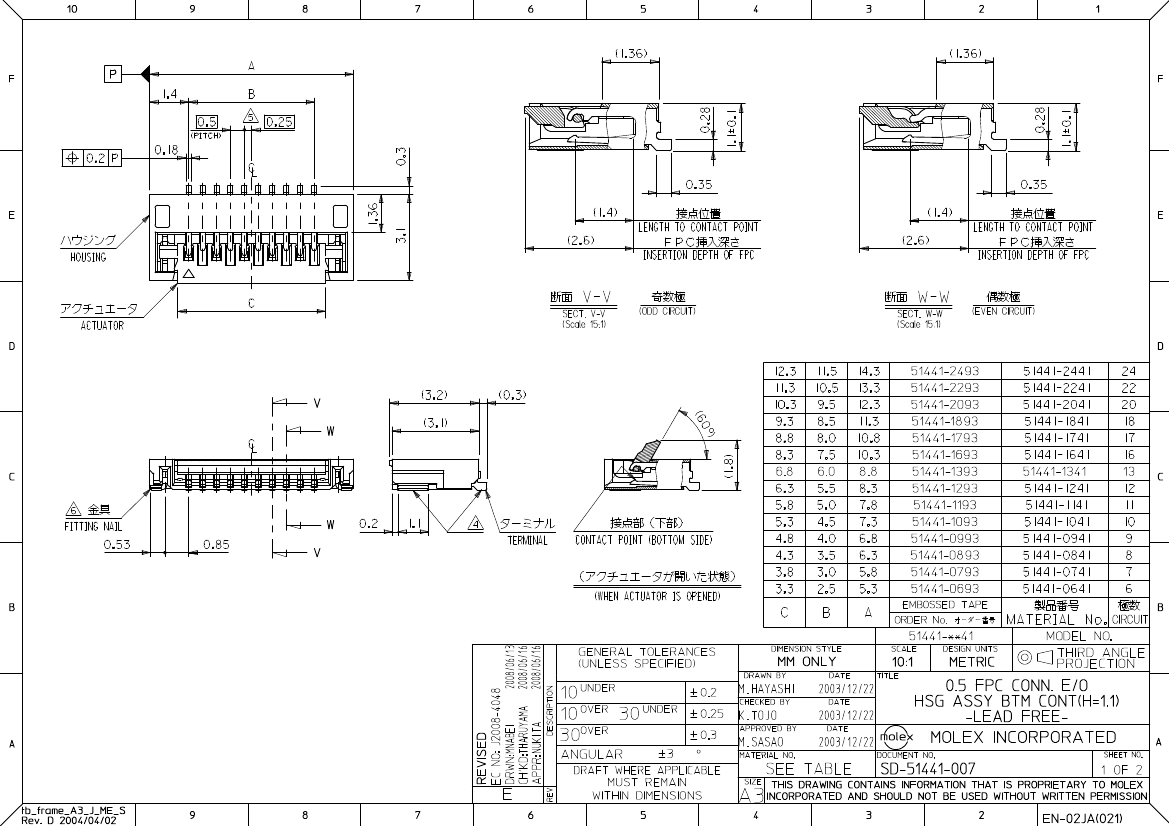

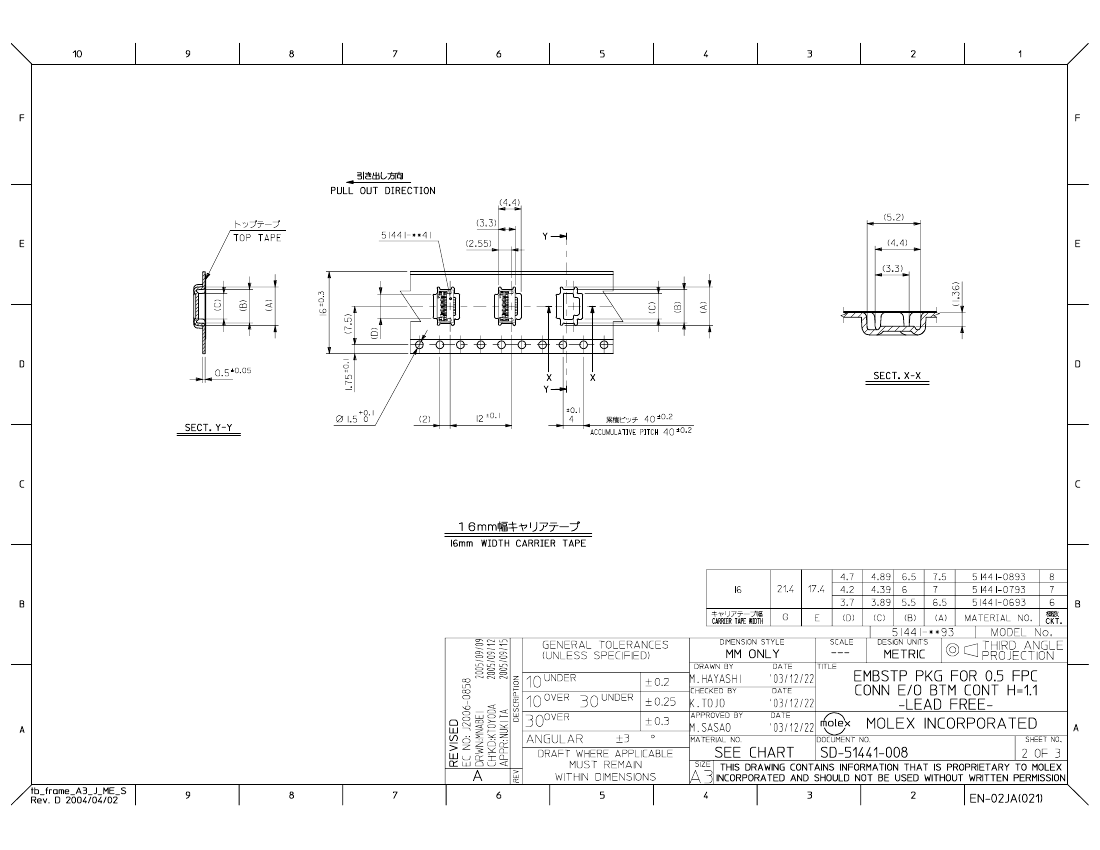

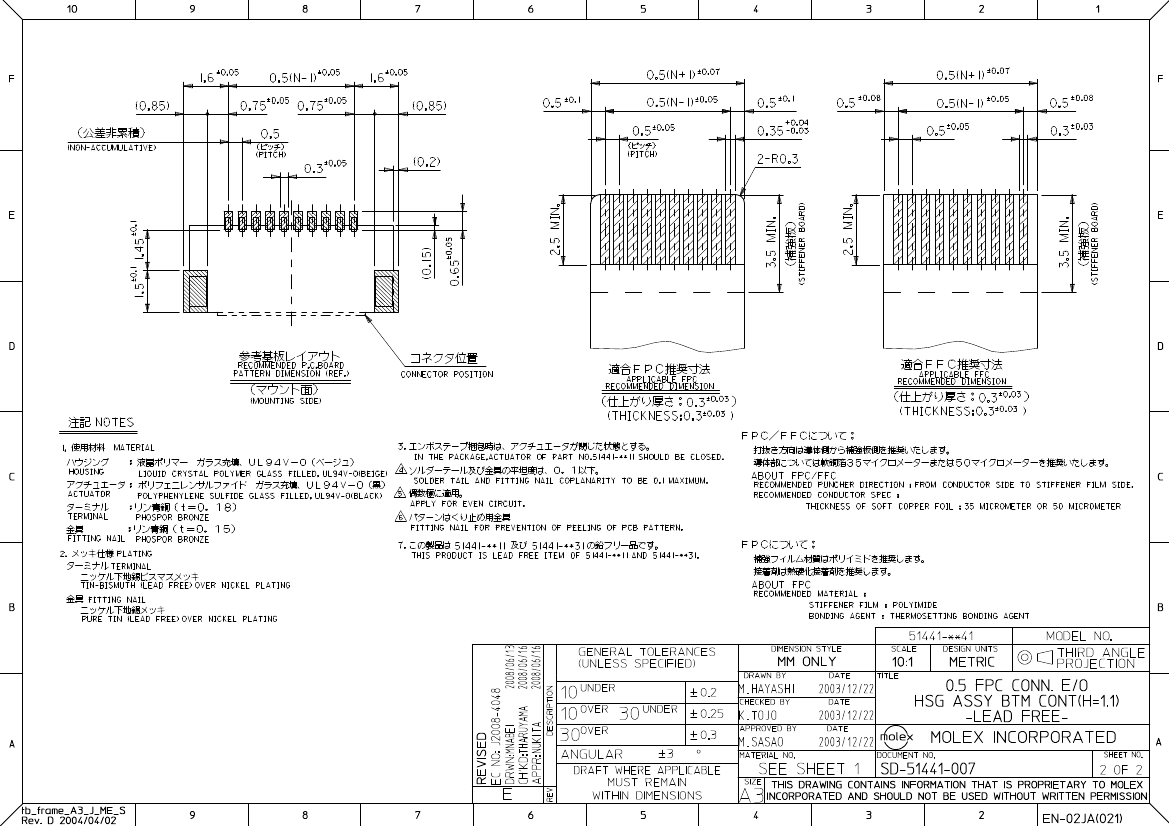

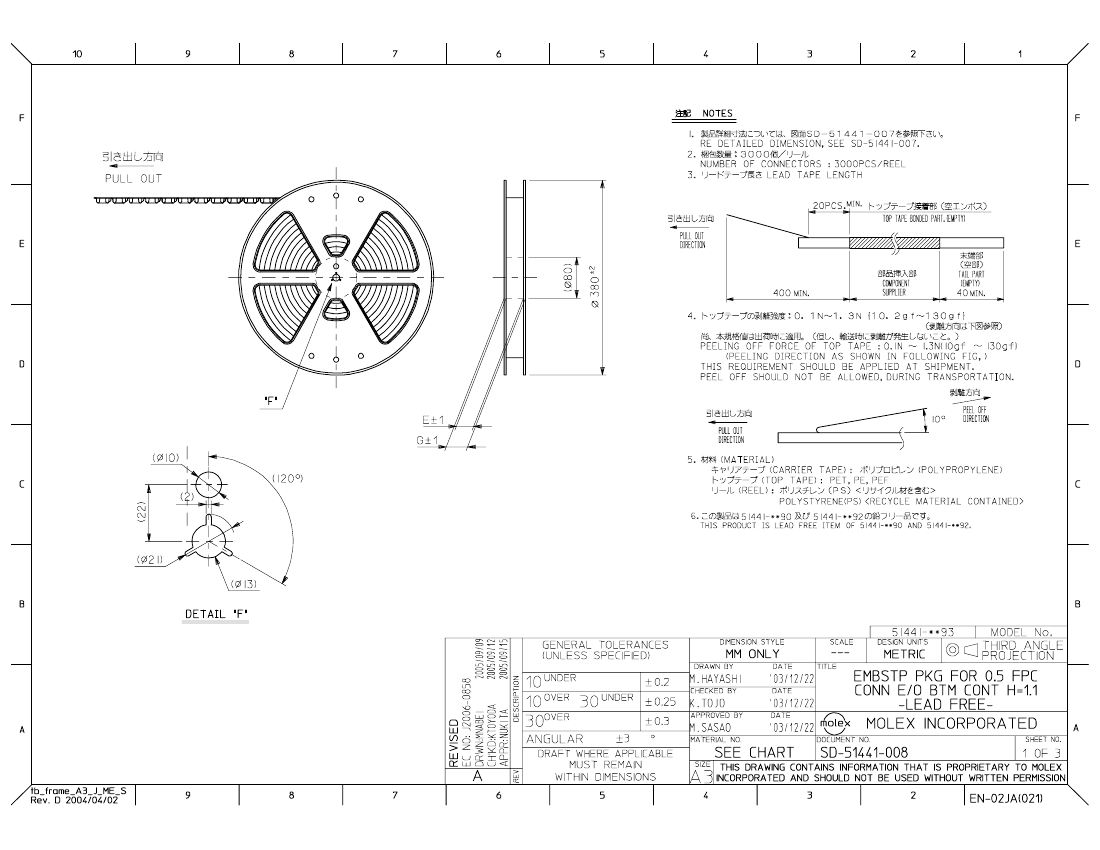

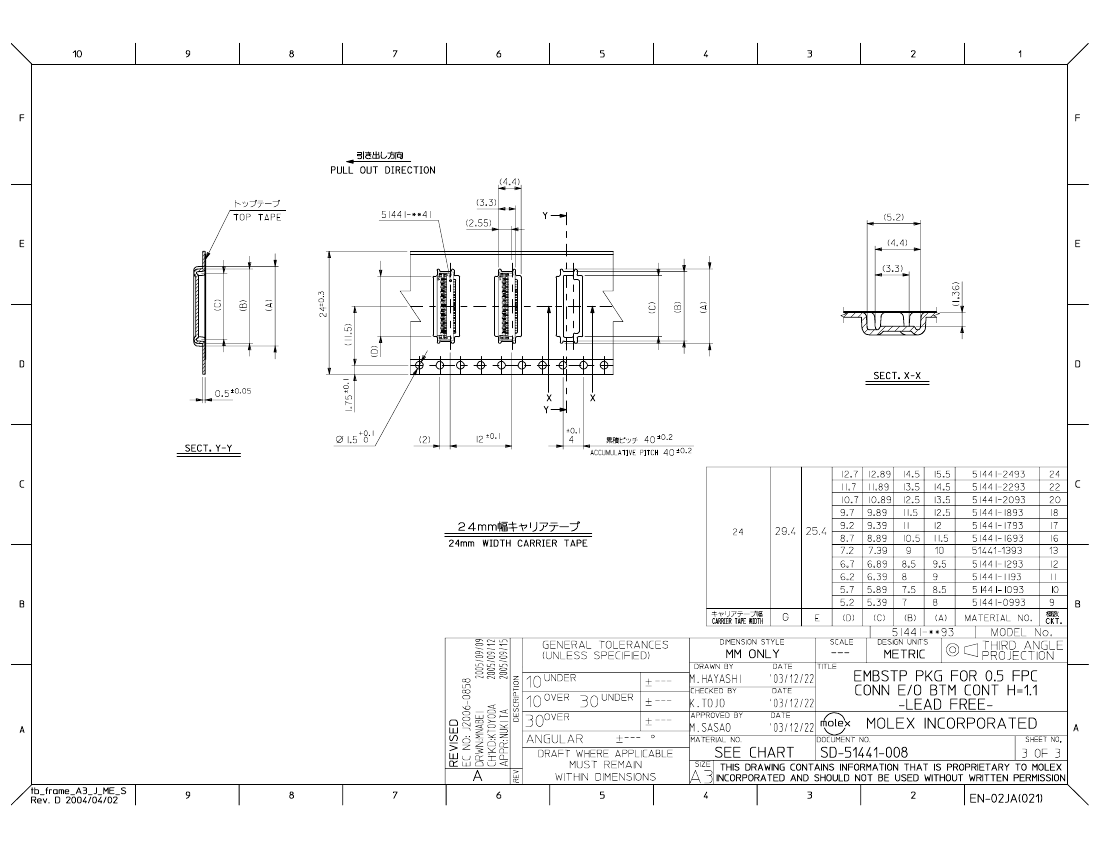

Preview

Download Datasheet

View All

0514411693 Related Products

	0514411693	0514411293	0514410993	0514410693	0514410793	0514412293	0514410893	0514411793	0514411193
Description	conn fpc 16pos .5mm smd R/A zif	conn fpc 12pos .5mm smd R/A zif	conn ffc 9pos .5mm smd R/A zif	conn fpc 6pos .5mm smd R/A zif	conn ffc 7pos .5mm smd R/A zif	conn fpc 22pos .5mm smd R/A zif	conn fpc 8pos .5mm smd R/A zif	conn ffc 17pos .5mm R/A smd zif	conn ffc 11pos .5mm R/A smd zif
Standard Package	3,000	1	3,000	3,000	3,000	3,000	3,000	-	-
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	-	-
Family	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	FFC, FPC (Flat Flexible) Connectors	-	-
Packaging	Tape & Reel (TR)	Cut Tape (CT)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	-	-
Flat Flex Type	FFC, FPC	FFC, FPC	FFC, FPC	FFC, FPC	FFC, FPC	FFC, FPC	FFC, FPC	-	-
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	-	-
Connector/Contact Type	Contacts, Bottom	Contacts, Bottom	Contacts, Bottom	Contacts, Bottom	Contacts, Bottom	Contacts, Bottom	Contacts, Bottom	-	-
Number of Positions	16	12	9	6	7	22	8	-	-
Pitch	0.020" (0.50mm)	0.020" (0.50mm)	0.020" (0.50mm)	0.020" (0.50mm)	0.020" (0.50mm)	0.020" (0.50mm)	0.020" (0.50mm)	-	-
Terminati	Solde	Solde	Solde	Solde	Solde	Solde	Solde	-	-
FFC, FCB Thickness	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	0.30mm	-	-
Height Above Board	0.044" (1.10mm)	0.044" (1.10mm)	0.044" (1.10mm)	0.044" (1.10mm)	0.044" (1.10mm)	0.044" (1.10mm)	0.044" (1.10mm)	-	-
Locking Feature	Flip Lock	Flip Lock	Flip Lock	Flip Lock	Flip Lock	Flip Lock	Flip Lock	-	-
Cable End Type	Straight, Tapered	Straight, Tapered	Straight, Tapered	Straight, Tapered	Straight, Tapered	Straight, Tapered	Straight, Tapered	-	-
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	-	-
Contact Finish	Tin Bismuth	Tin Bismuth	Tin Bismuth	Tin Bismuth	Tin Bismuth	Tin Bismuth	Tin Bismuth	-	-
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled	-	-
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled	Polyphenylene Sulfide (PPS), Glass Filled	Polyphenylene Sulfide (PPS), Glass Filled	Polyphenylene Sulfide (PPS), Glass Filled	Polyphenylene Sulfide (PPS), Glass Filled	Polyphenylene Sulfide (PPS), Glass Filled	Polyphenylene Sulfide (PPS), Glass Filled	-	-
Features	Solder Retention, Zero Insertion Force (ZIF)	Solder Retention, Zero Insertion Force (ZIF)	Solder Retention, Zero Insertion Force (ZIF)	Solder Retention, Zero Insertion Force (ZIF)	Solder Retention, Zero Insertion Force (ZIF)	Solder Retention, Zero Insertion Force (ZIF)	Solder Retention, Zero Insertion Force (ZIF)	-	-
Voltage Rating	50V	50V	50V	50V	50V	50V	50V	-	-
Operating Temperature	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	-	-
Current Rating	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A	0.5A	-	-
Other Names	051441-16930514411693-C51441-164151441-169351441-1693-ND514411693514411693-CWM6476TR	WM1556WM1556-NDWM6475CT	051441-099351441-0993514410993	051441-06930514410693-C51441-064151441-069351441-0693-ND514410693514410693-CWM6473TR	051441-079351441-0793514410793	051441-2293051441-2293-C0514412293-C0514412293-ND51441-224151441-229351441-2293-ND514412293514412293-CWM9197TR	051441-0893051441-0893-C0514410893-C0514410893-ND51441-084151441-089351441-0893-C51441-0893-ND514410893514410893-CWM1554WM1554-NDWM9196TR	-	-
