1-179396-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-179396-6

1-179396-6: Descriptionconn plug 16pos 0.8mm brd-brd; CategoryThe connector; File Size170KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1-179396-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-179396-6	-	-	View	Buy Now

1-179396-6 Overview

conn plug 16pos 0.8mm brd-brd

1-179396-6 Parametric

Parameter Name	Attribute value
Datasheets

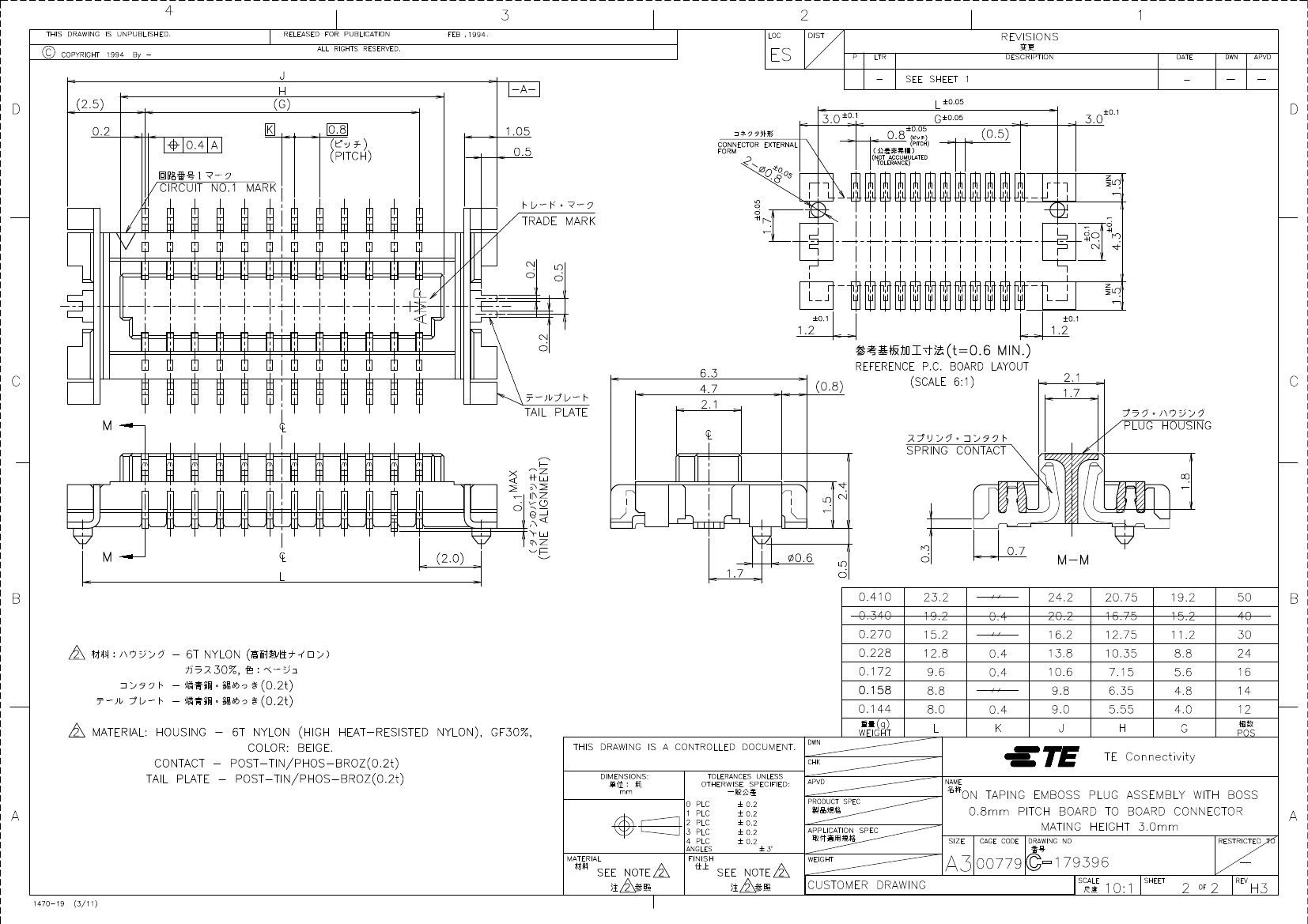

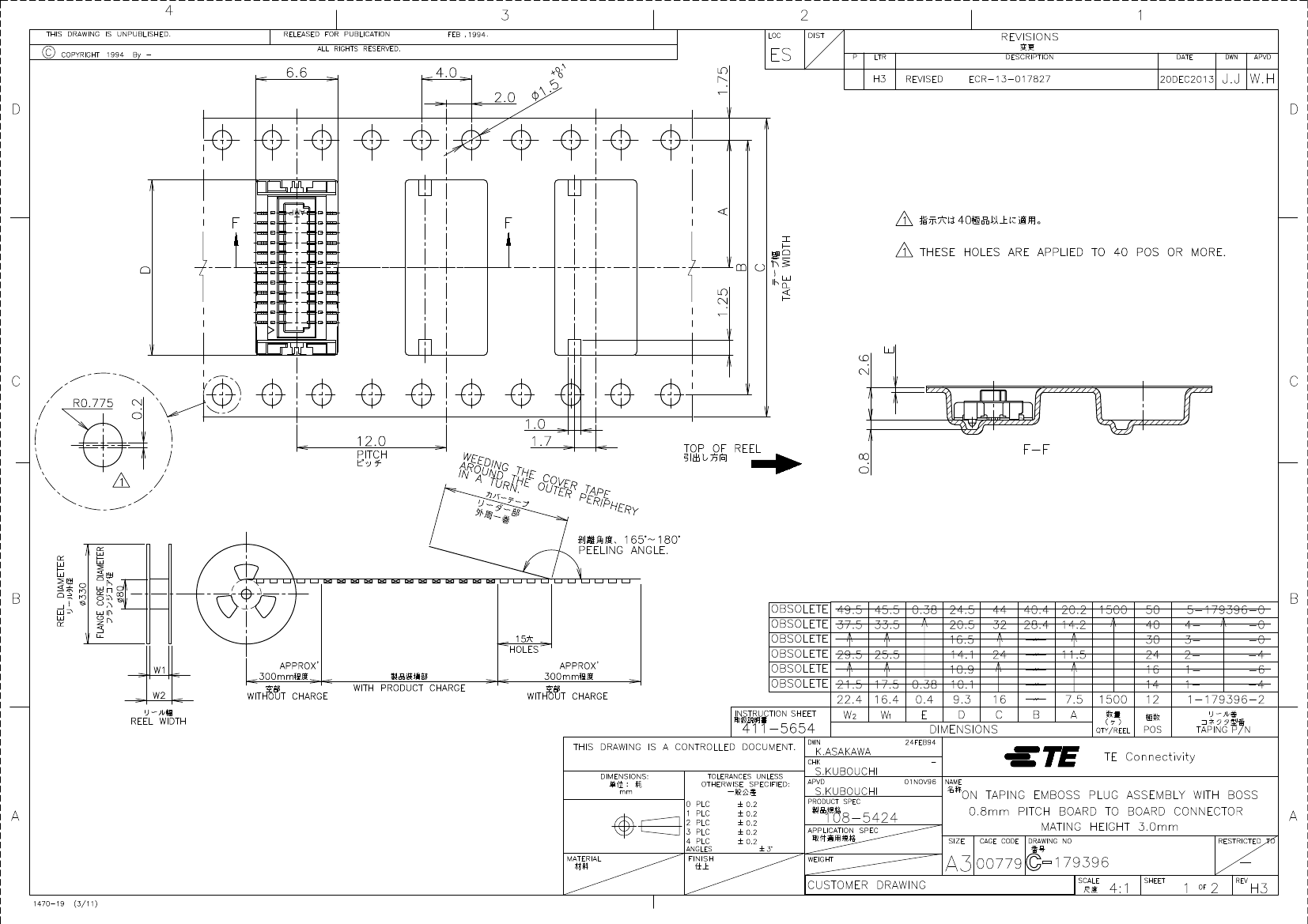

179396 Drawing
3D Model
1-179396-6.pdf
Standard Package	15,000
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tape & Reel (TR)
Connector Type	Plug, Center Strip Contacts
Number of Positions	16
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting Type	Surface Mou
Features	Board Guide, Solder Retenti
Contact Finish	Ti
Contact Finish Thickness	-
Mated Stacking Heights	3mm
Height Above Board	0.094" (2.40mm)
Mating Products	1-179397-6-ND - CONN RCPT 16POS 0.8MM BRD-BRD

Preview

Download Datasheet

View All

1-179396-6 Related Products

	1-179396-6	1-179396-4	2-179396-4	1-179396-2	3-179396-0
Description	conn plug 16pos 0.8mm brd-brd	conn plug 14pos 0.8mm brd-brd	conn plug 24pos 0.8mm brd-brd	conn plug 12pos 0.8mm brd-brd	conn plug 30pos 0.8mm brd-brd
Standard Package	15,000	22,500	6,000	12,000	6,000
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Connector Type	Plug, Center Strip Contacts	Plug, Center Strip Contacts	Plug, Center Strip Contacts	Plug, Center Strip Contacts	Plug, Center Strip Contacts
Number of Positions	16	14	24	12	30
Pitch	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)
Number of Rows	2	2	2	2	2
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou
Features	Board Guide, Solder Retenti	Board Guide, Solder Retenti	Board Guide, Solder Retenti	Board Guide, Solder Retenti	Board Guide, Solder Retenti
Contact Finish	Ti	Ti	Ti	Ti	Ti
Mated Stacking Heights	3mm	3mm	3mm	3mm	3mm
Height Above Board	0.094" (2.40mm)	0.094" (2.40mm)	0.094" (2.40mm)	0.094" (2.40mm)	0.094" (2.40mm)
Mating Products	1-179397-6-ND - CONN RCPT 16POS 0.8MM BRD-BRD	1-179397-4-ND - CONN RCPT 14POS 0.8MM BRD-BRD	A111117TR-ND - CONN RCPT 24POS 0.8MM BRD-BRD	A116160TR-ND - CONN RCPT 12POS 0.8MM BRD-BRD	3-1565909-0-ND - CONN RECPT 30POS .8MM DUAL SMTA111146TR-ND - CONN RCPT 30POS VERT IN-LINE
