1-5146893-2 datasheet, PDF - EEWORLD Datasheet

1-5146893-2: Descriptionconn rcpt 84pos 1mm FH vert; CategoryThe connector; File Size195KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1-5146893-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-5146893-2	-	-	View	Buy Now

conn rcpt 84pos 1mm FH vert

Parameter Name	Attribute value
Datasheets
5146893
Product Photos
51205xx-2
RoHS Informati
1-5146893-2 Statement of Compliance
RoHS 2 Stateme
3D Model

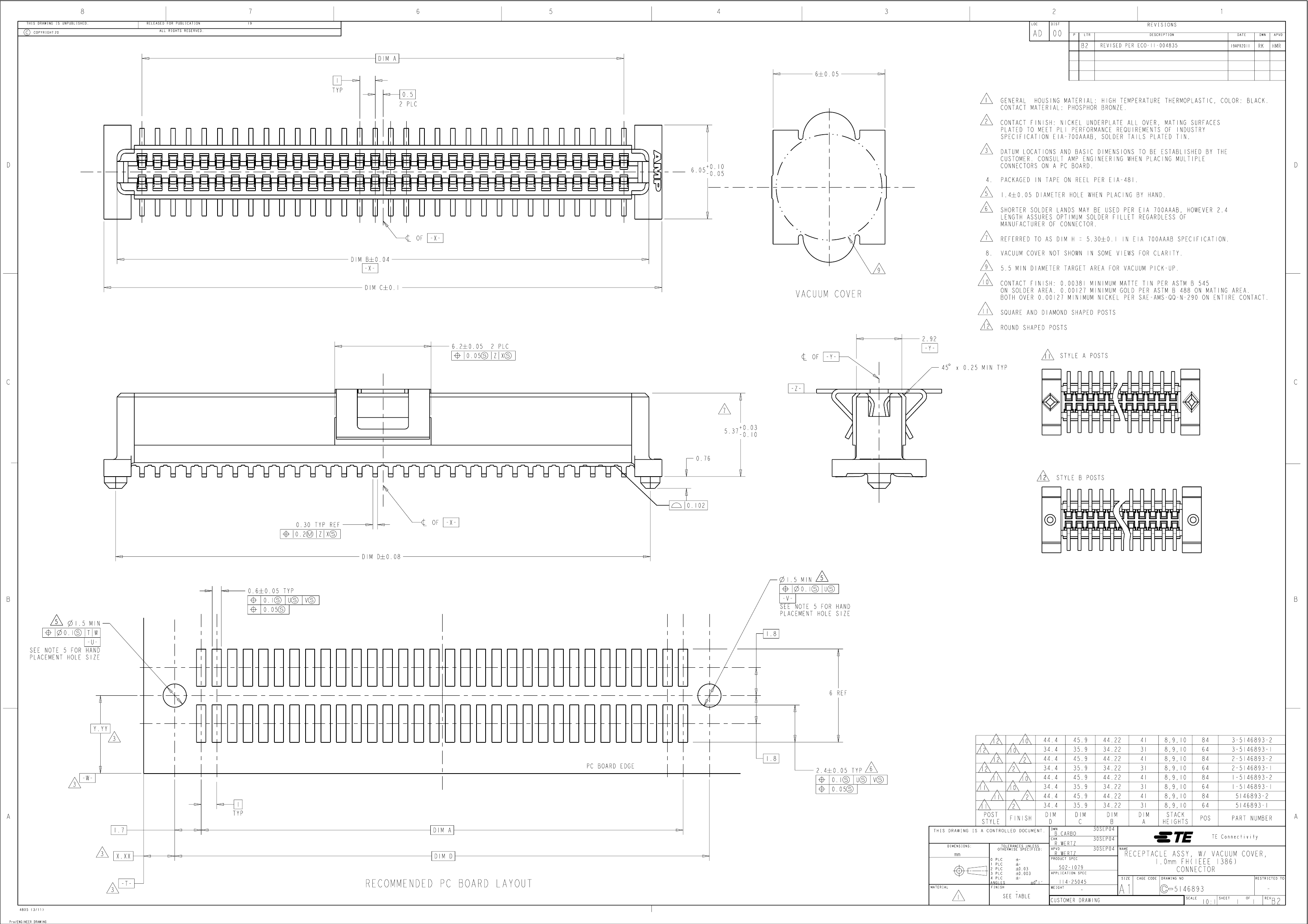

1-5146893-2.pdf
Standard Package	650
Category	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tape & Reel (TR)
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	84
Pitch	0.039" (1.00mm)
Number of Rows	2
Mounting Type	Surface Mou
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Mated Stacking Heights	8mm, 9mm, 10mm
Height Above Board	0.211" (5.35mm)
Mating Products	1-5146897-2-ND - CONN PLUG 84POS 1MM FH VERT1-5146888-2-ND - CONN PLUG 84POS 1MM FH VERT1-5120534-2-ND - CONN PLUG 84POS 1MM FH VERT1-5120533-2-ND - CONN PLUG 84POS 1MM FH VERT1-5120527-2-ND - CONN PLUG 84POS 1MM FH VERT1-5120525-2-ND - CONN PLUG 84POS 1MM FH VERT

	1-5146893-2	2-5146893-1
Description	conn rcpt 84pos 1mm FH vert	1fhr,64,30a/S,R,C,s08,09,10
Standard Package	650	1,300
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine	Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Packaging	Tape & Reel (TR)	Tape & Reel (TR)
Connector Type	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts
Number of Positions	84	64
Pitch	0.039" (1.00mm)	0.039" (1.00mm)
Number of Rows	2	2
Mounting Type	Surface Mou	Surface Mou
Features	Board Guide	Board Guide
Contact Finish	Gold	Gold
Contact Finish Thickness	50µin (1.27µm)	30µin (0.76µm)
Mated Stacking Heights	8mm, 9mm, 10mm	8mm, 9mm, 10mm
Height Above Board	0.211" (5.35mm)	0.211" (5.35mm)
