1218697-2 datasheet, PDF - EEWORLD Datasheet

1218697-2: Descriptionconn D-sub rcpt 26pos vert; CategoryThe connector; File Size298KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1218697-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1218697-2	-	-	View	Buy Now

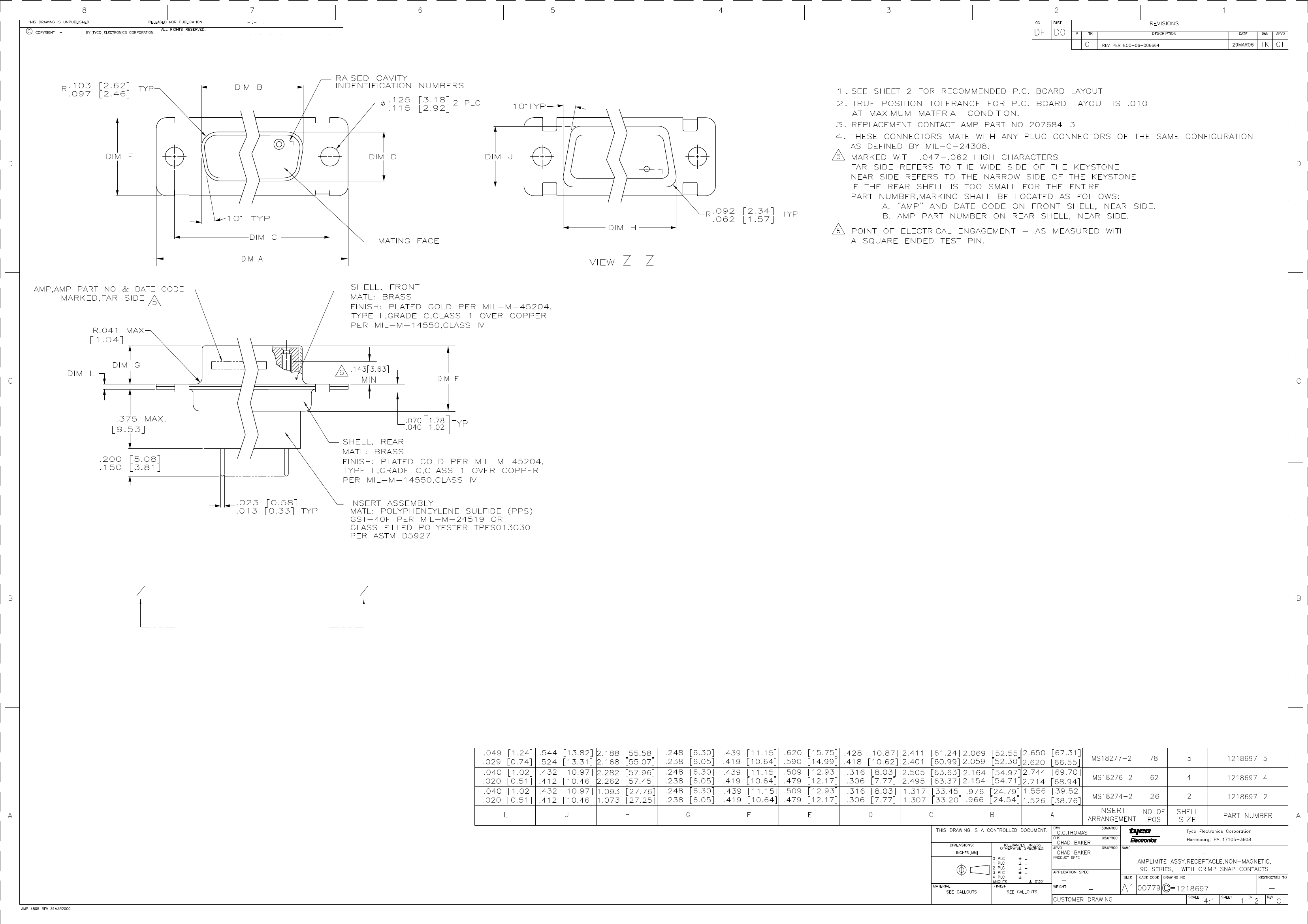

conn D-sub rcpt 26pos vert

Parameter Name	Attribute value
Datasheets
1218697
Standard Package	25
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Bulk
Connector Style	D-Sub, High Density
Connector Type	Receptacle, Female Sockets
Number of Positions	26
Number of Rows	3
Shell Size, Connector Layou	2 (DA, A) High Density
Contact Type	Signal

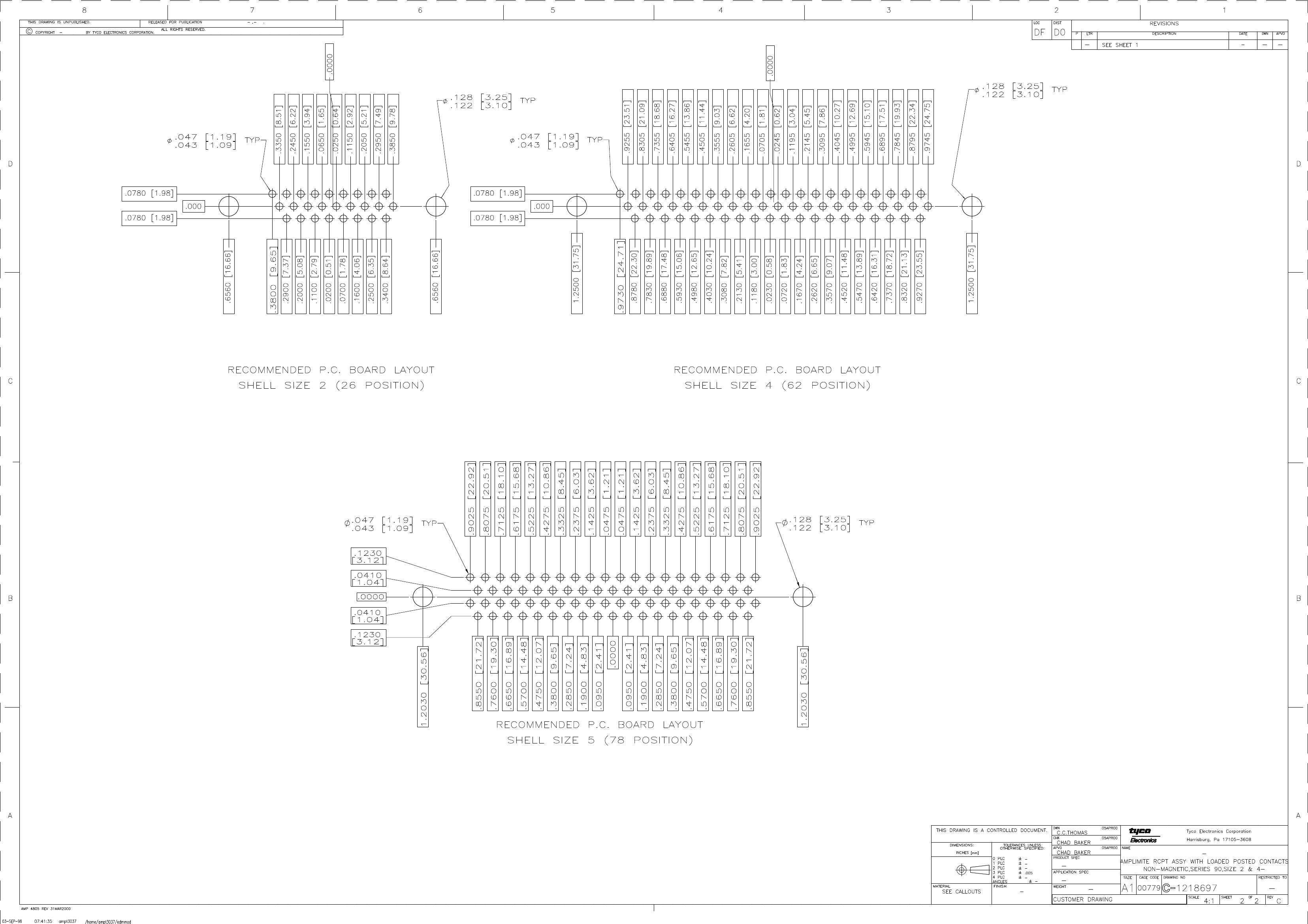

Mounting Type	Through Hole
Flange Feature	Housing/Shell (Unthreaded)
Terminati	Crim
Features	-
Shell Material, Finish	Brass, Gold Plated
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Ingress Protecti	-
Operating Temperature	-55°C ~ 125°C
Voltage Rating	-
Current Rating	7.5A
Housing Material	-
Col	-
Mating Products	1-593326-8-ND - CONN D-SUB PLUG 26POS R/A 90 SER593061-2-MIL - CONN D-SUB PLUG 26POS CRIMPA34474-ND - CONN D-SUB PLUG HD 26POS211674-4-ND - CONN D-SUB PLUG 26POS CRIMP206500-1-MIL - CONN D-SUB PLUG 26POS CRIMP

	1218697-2	1218697-5
Description	conn D-sub rcpt 26pos vert	conn D-sub rcpt 78pos vert
Standard Package	25	25
Category	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors
Packaging	Bulk	Bulk
Connector Style	D-Sub, High Density	D-Sub, High Density
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	26	78
Number of Rows	3	4
Shell Size, Connector Layou	2 (DA, A) High Density	5 (DD, D) High Density
Contact Type	Signal	Signal
Mounting Type	Through Hole	Through Hole
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Terminati	Crim	Crim
Shell Material, Finish	Brass, Gold Plated	Brass, Gold Plated
Contact Finish	Gold	Gold
Contact Finish Thickness	50µin (1.27µm)	50µin (1.27µm)
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C
Current Rating	7.5A	7.5A
Mating Products	1-593326-8-ND - CONN D-SUB PLUG 26POS R/A 90 SER593061-2-MIL - CONN D-SUB PLUG 26POS CRIMPA34474-ND - CONN D-SUB PLUG HD 26POS211674-4-ND - CONN D-SUB PLUG 26POS CRIMP206500-1-MIL - CONN D-SUB PLUG 26POS CRIMP	211653-1-ND - CONN D-SUB PLUG 78POS SER 90211677-4-ND - CONN D-SUB PLUG 78POS CRIMP211677-1-ND - CONN D-SUB PLUG 78POS CRIMP206504-2-ND - CONN D-SUB PLUG 78POS206504-1-MIL - CONN D-SUB PLUG 78POS CRIMP
