3367.01.1420.026 datasheet, PDF

3367.01.1420.026: DescriptionRF MCX Connector, 1 Contact(s), Male, Cable Mount, Crimp Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size587KB，4 Pages; ManufacturerIMS Connector Systems Gmbh; Environmental Compliance

Download Datasheet Parametric Compare View All

3367.01.1420.026 Overview

RF MCX Connector, 1 Contact(s), Male, Cable Mount, Crimp Solder Terminal, Plug, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IMS Connector Systems Gmbh
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	APPLICATLE CABLES: RG 174, RG 188 A/U, RG 316, RG 316/D
subject depth	0.335 inch
Body diameter	0.197 inch
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	BRASS
Contact resistance	5 mΩ
Contact style	COAX
Coupling type	SNAP
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	3367.01.1420.026
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of ports	1
Maximum operating frequency	6 GHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Rated current (signal)	1.5 A
Termination type	CRIMP SOLDER
Total number of contacts	1
Base Number Matches	1

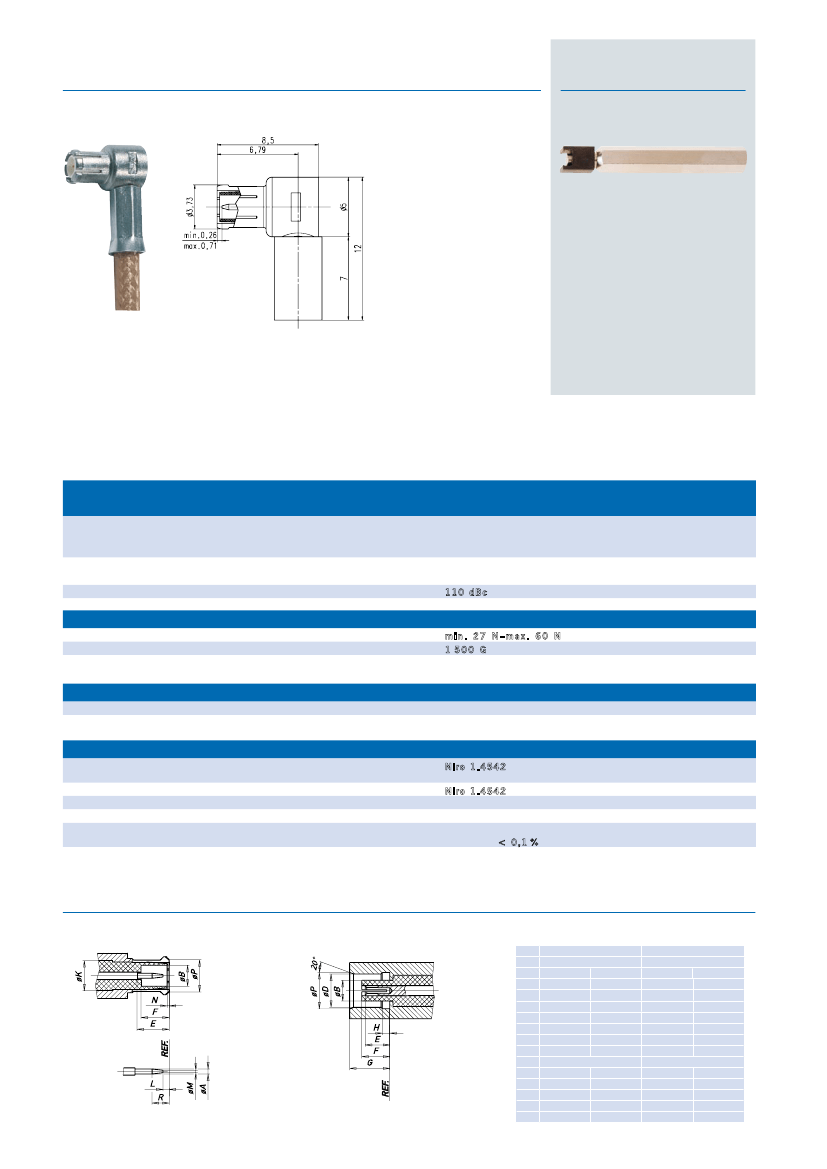

90° MCX

cable connector

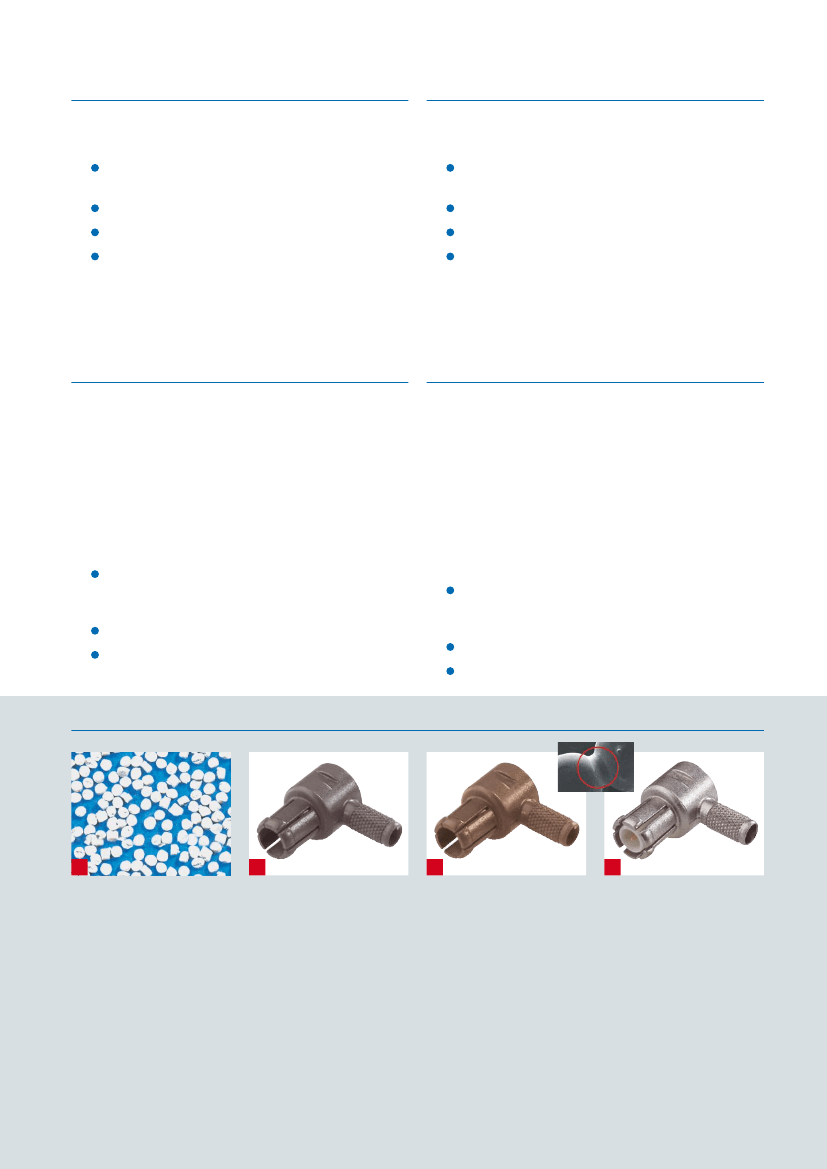

in MIM technology

90° MCX Kabel-

steckverbinder

in MIM Technologie

+High retention forces +++ Vibration resistant +++ High retention f

	3367.01.1420.026	Y14474K81000T0L
Description	RF MCX Connector, 1 Contact(s), Male, Cable Mount, Crimp Solder Terminal, Plug, ROHS COMPLIANT	Fixed Resistor, Metal Foil, 2W, 4810ohm, 500V, 0.01% +/-Tol, -.2,.2ppm/Cel
Is it Rohs certified?	conform to	incompatible
Reach Compliance Code	compli	compliant
ECCN code	EAR99	EAR99
Manufacturer's serial number	3367.01.1420.026	Z206
Maximum operating temperature	125 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C
