1218440-3

Description
conn D-sub pcb plug 25pos R/A
CategoryThe connector
File Size445KB,2 Pages
ManufacturerAll Sensors
Download Datasheet Parametric Compare View All

1218440-3 Online Shopping

Suppliers Part Number Price MOQ In stock
1218440-3 - - View Buy Now

1218440-3 Overview

conn D-sub pcb plug 25pos R/A

1218440-3 Parametric

Parameter NameAttribute value
Datasheets
1218440
3D Model

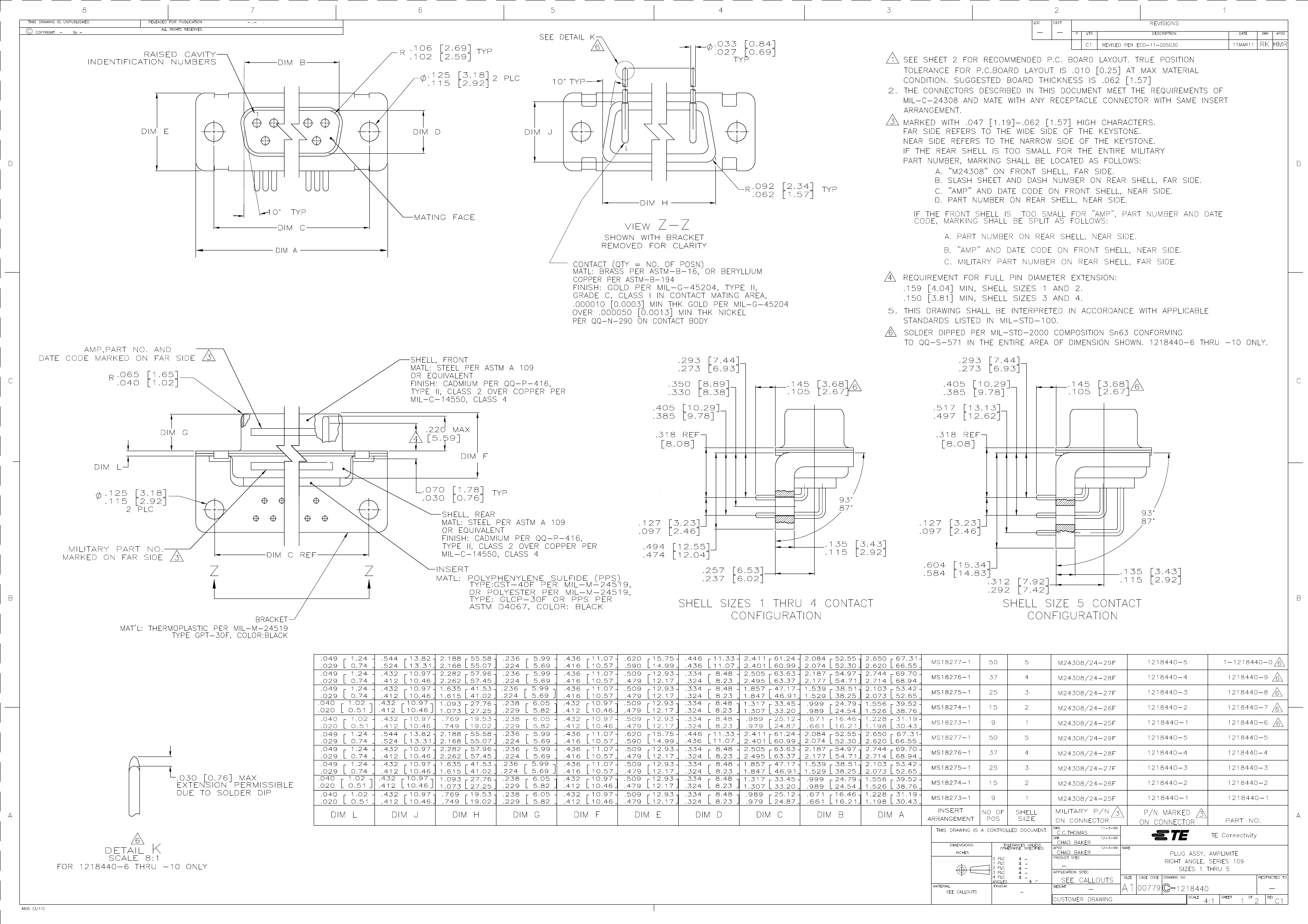

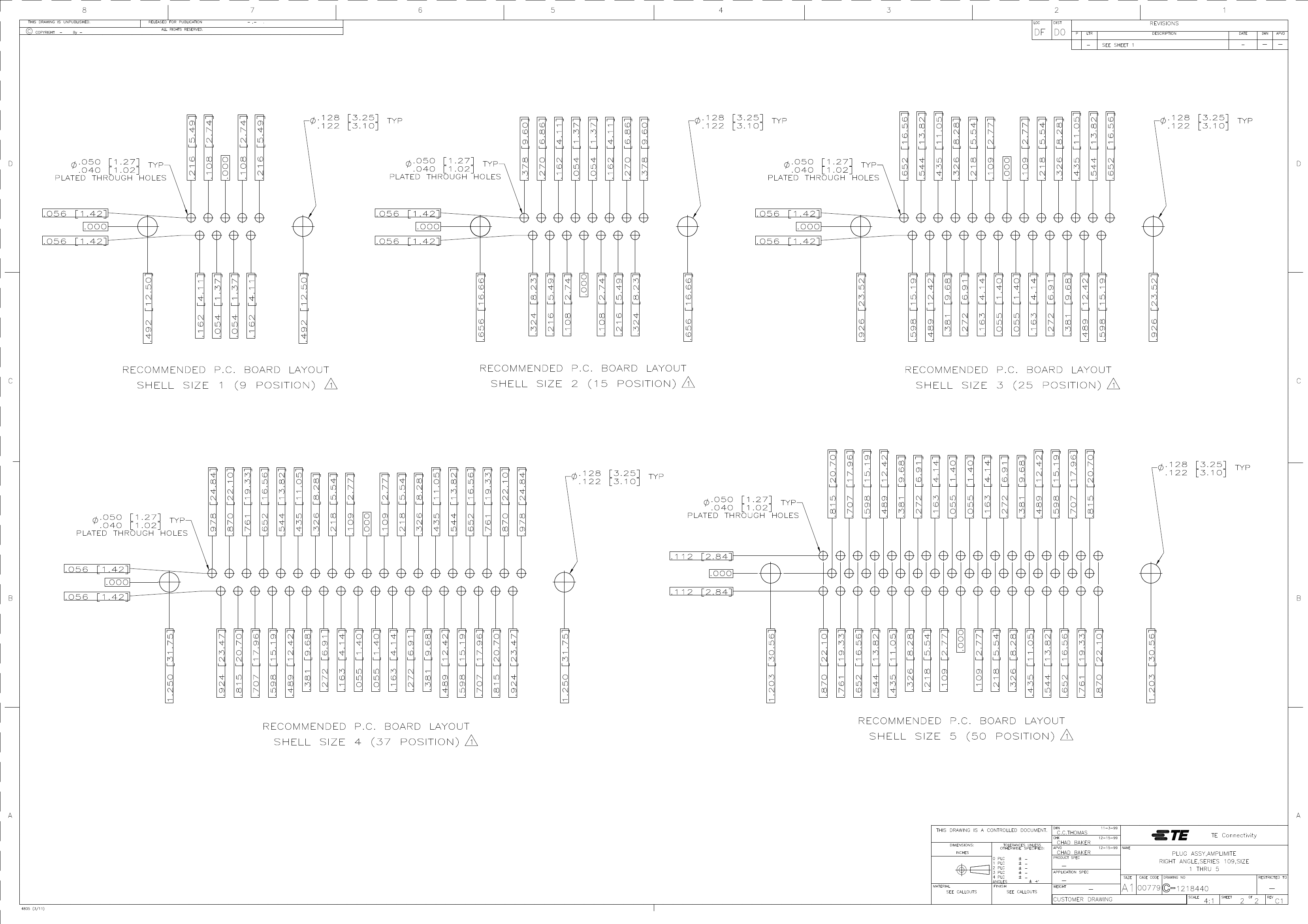

1218440-3.pdf
Standard Package48
CategoryConnectors, Interconnects
FamilyD-Sub Connectors
PackagingBulk
Connector StyleD-Sub
Connector TypePlug, Male Pins
Number of Positions25
Number of Rows2
Shell Size, Connector Layou3 (DB, B)
Contact TypeSignal
Mounting TypeThrough Hole, Right Angle
Flange FeatureHousing/Shell (Unthreaded)
TerminatiSolde
Features-
Shell Material, FinishSteel, Cadmium Plated
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
Ingress Protecti-
Operating Temperature-55°C ~ 125°C
Voltage Rating-
Current Rating5A
Housing Material-
ColBlack
Mating Products1757822-8-MIL - CONN D-SUB RCPT 25POS CRIMP1122-1160-MIL - CONN D-SUB RCPT 25POS CRIMP205559-2-MIL - CONN D-SUB 25RECEPT POS CRIMP205559-3-MIL - CONN D-SUB RCPT 25POS CRIMP1122-1149-MIL - CONN D-SUB HOUSING RECEPT 25POS
Other Names1218440-3-NDM24308/24-27FM24308/24-27F-MILM24308/24-27F-ND

1218440-3 Related Products

1218440-3 1218440-1 1218440-2
Description conn D-sub pcb plug 25pos R/A conn D-sub plug 9pos R/A pcb conn D-sub pcb plug 15pos R/A
Standard Package 48 100 108
Category Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects
Family D-Sub Connectors D-Sub Connectors D-Sub Connectors
Packaging Bulk Bulk Bulk
Connector Style D-Sub D-Sub D-Sub
Connector Type Plug, Male Pins Plug, Male Pins Plug, Male Pins
Number of Positions 25 9 15
Number of Rows 2 2 2
Shell Size, Connector Layou 3 (DB, B) 1 (DE, E) 2 (DA, A)
Contact Type Signal Signal Signal
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Flange Feature Housing/Shell (Unthreaded) Housing/Shell (Unthreaded) Housing/Shell (Unthreaded)
Terminati Solde Solde Solde
Shell Material, Finish Steel, Cadmium Plated Steel, Cadmium Plated Steel, Cadmium Plated
Contact Finish Gold Gold Gold
Contact Finish Thickness 10µin (0.25µm) 10µin (0.25µm) 10µin (0.25µm)
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C
Current Rating 5A 5A 5A
Col Black Black Black
Mating Products 1757822-8-MIL - CONN D-SUB RCPT 25POS CRIMP1122-1160-MIL - CONN D-SUB RCPT 25POS CRIMP205559-2-MIL - CONN D-SUB 25RECEPT POS CRIMP205559-3-MIL - CONN D-SUB RCPT 25POS CRIMP1122-1149-MIL - CONN D-SUB HOUSING RECEPT 25POS 1757822-6-MIL - CONN D-SUB RCPT 9POS CRIMP AU593039-1-MIL - CONN D-SUB RCPT 9POS CRIMP GOLD205483-2-MIL - CONN D-SUB RCPT 9POS CRIMP205555-3-ND - CONN D-SUB RECEPT 9POS CRIMP205555-2-MIL - CONN D-SUB 9RECEPT POS CRIMP1122-1158-MIL - CONN RCPT D-SUB 9POS CRIMP1122-1138-MIL - CONN D-SUB HOUSING RECEPT 9POS 1757822-7-MIL - CONN D-SUB RCPT 15POS CRIMP AU205433-2-MIL - CONN D-SUB RCPT 15POS CRIMP1122-1159-MIL - CONN D-SUB RCPT 15POS CRIMP205557-2-MIL - CONN D-SUB 15RECEPT POS CRIMP205557-3-MIL - CONN RCPT D-SUB 15POS CRIMP1122-1148-MIL - CONN D-SUB RCPT HSING 15POS STD
Other Names 1218440-3-NDM24308/24-27FM24308/24-27F-MILM24308/24-27F-ND 1218440-1-NDM24308/24-25FM24308/24-25F-MILM24308/24-25F-ND 1218440-2-NDM24308/24-26FM24308/24-26F-MILM24308/24-26F-ND
