788751-1: Descriptionconn D-sub rcpt R/A 25pos scrlk; CategoryThe connector; File Size49KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

788751-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	788751-1	-	-	View	Buy Now

conn D-sub rcpt R/A 25pos scrlk

Parameter Name	Attribute value
Datasheets

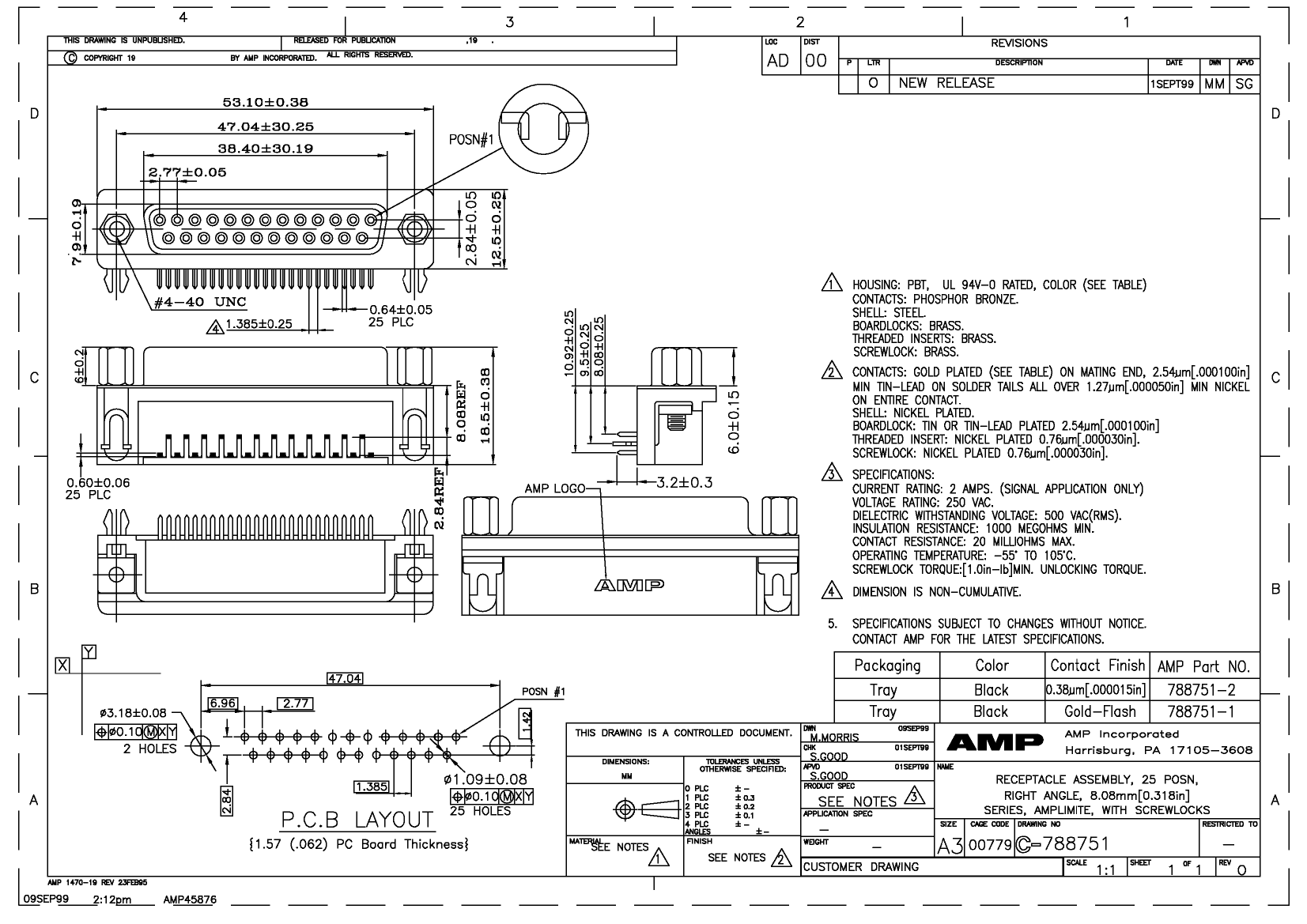

788751 Drawing
Standard Package	800
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tray
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	25
Number of Rows	2
Shell Size, Connector Layou	3 (DB, B)
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Flange Feature	Mating Side
Female Screwlock (4-40)
Terminati	Solde
Features	Board Lock
Shell Material, Finish	Steel, Nickel Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-
Voltage Rating	-
Current Rating	-
Housing Material	Polybutylene Terephthalate (PBT)
Col	Black

SUPERSEDED

NOT the LATEST

REVISION

	788751-1	788751-2
Description	conn D-sub rcpt R/A 25pos scrlk	conn D-sub rcpt R/A 25pos scrlk
Standard Package	800	800
Category	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors
Packaging	Tray	Tray
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	25	25
Number of Rows	2	2
Shell Size, Connector Layou	3 (DB, B)	3 (DB, B)
Contact Type	Signal	Signal
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Flange Feature	Mating Side	Mating Side
Terminati	Solde	Solde
Features	Board Lock	Board Lock
Shell Material, Finish	Steel, Nickel Plated	Steel, Nickel Plated
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	15µin (0.38µm)
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Col	Black	Black
