788753-1 datasheet, PDF - EEWORLD Datasheet

788753-1: Descriptionconn D-sub plug R/A 9pos scrlk; CategoryThe connector; File Size45KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

788753-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	788753-1	-	-	View	Buy Now

conn D-sub plug R/A 9pos scrlk

Parameter Name	Attribute value
Datasheets

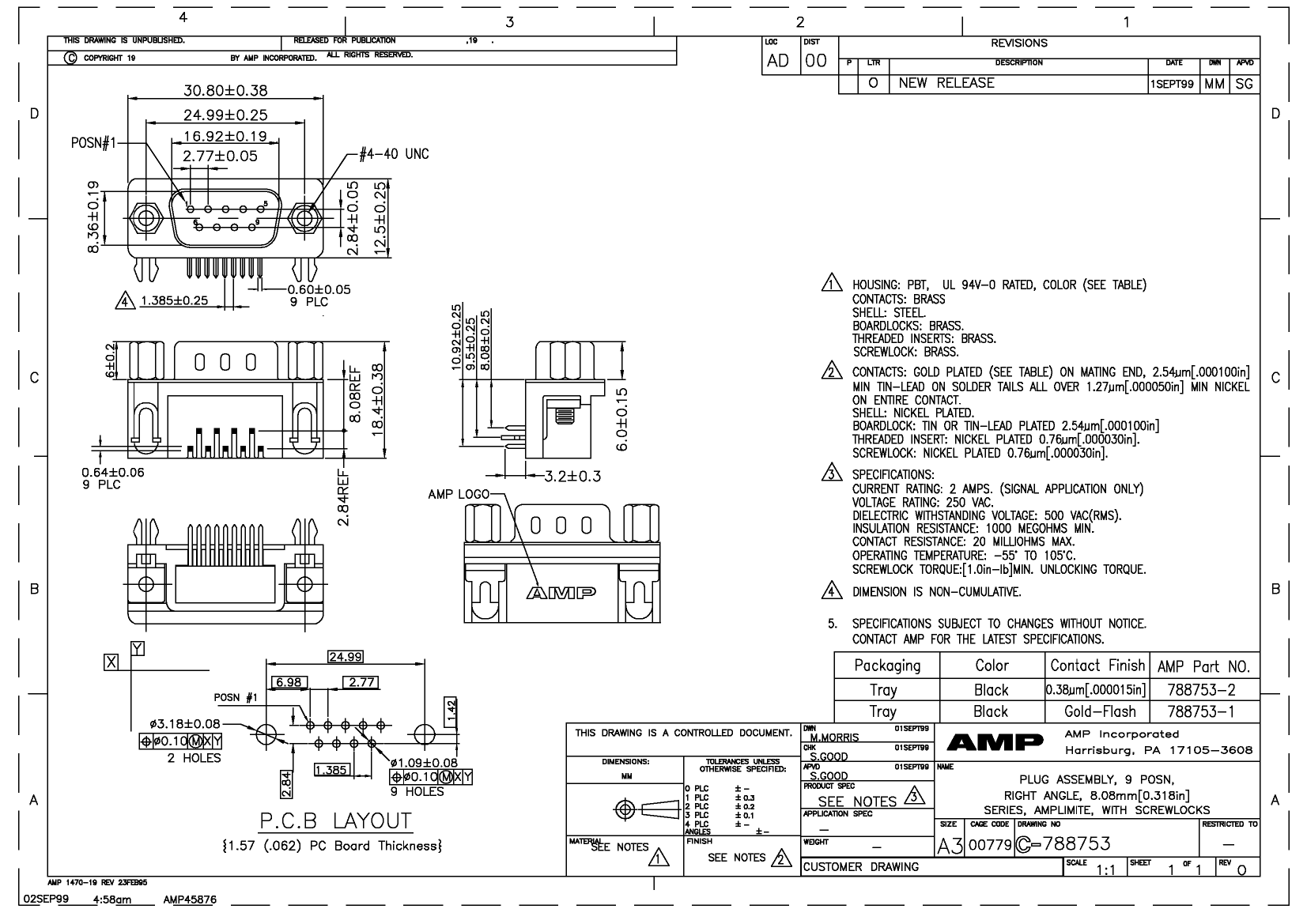

788753 Drawing
Standard Package	990
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tray
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layou	1 (DE, E)
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Flange Feature	Mating Side
Female Screwlock (4-40)
Terminati	Solde
Features	Board Lock, Grounding Indents
Shell Material, Finish	Steel, Nickel Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-
Voltage Rating	-
Current Rating	-
Housing Material	Polybutylene Terephthalate (PBT)
Col	Black

SUPERSEDED

NOT the LATEST

REVISION

	788753-1	788753-2
Description	conn D-sub plug R/A 9pos scrlk	conn D-sub plug R/A 9pos scrlk
Standard Package	990	990
Category	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors
Packaging	Tray	Tray
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Number of Positions	9	9
Number of Rows	2	2
Shell Size, Connector Layou	1 (DE, E)	1 (DE, E)
Contact Type	Signal	Signal
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Flange Feature	Mating Side	Mating Side
Terminati	Solde	Solde
Features	Board Lock, Grounding Indents	Board Lock
Shell Material, Finish	Steel, Nickel Plated	Steel, Nickel Plated
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	15µin (0.38µm)
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Col	Black	Black
